ZrO2 95% Yttrium Zirconia Grinding Media Stabilized Ceramic Beads Milling

Minimum Order Quantity : 25kgs Price : Negotiation
Packaging Details : 25kgs barrels+Pallet Delivery Time : 2-20 days
Supply Ability : 3000mt per year
Place of Origin: Shanxi, China Brand Name: Zhengtong
Certification: ISO9001, IS014001 Model Number: 0.1mm-60mm

Detail Information

Commodity Name: Yttrium Stabilized Zirconia Grinding Beads Color: White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Package: 25kgs Barrels+Pallet Port Of Loading: Tianjin/Qingdao, China
High Light:

Stabilized Ceramic Zirconia Grinding Media

,

95% Yttrium Zirconia Grinding Media

,

Ceramic Beads Milling Media

Product Description

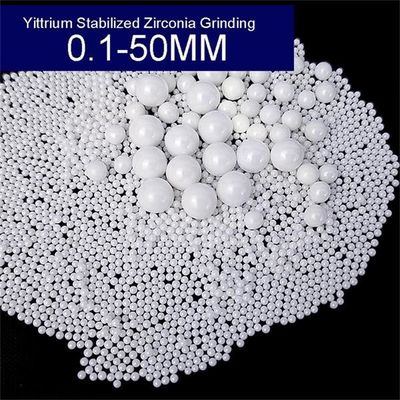

ZrO2 95% Yttrium Stabilized Zirconia Grinding beads Ceramic beads milling media



DESCRIPTION OF ZIRCONIA GRINDING BEADS



Yttrium stabilized zirconia beads are mainly made of ZrO2, 95%, using rare earth yttrium oxide as stabilizer and advanced technology of calcination and phase determination. The diameter of the dense tetragonal zirconia microcrystals in the bead is less than 0.5 μ M makes the medium have excellent corrosion resistance and wear resistance, which makes nano grinding and dispersion of materials a reality. It is an ideal combination of rod pin type and turbine type sand mills for ultra-fine grinding.



SPECIFICATION OF ZIRCONIA GRINDING BEADS



Manufacturing process: Sintering Method



ZrO2 Y2O3 Other
95% Min. 4.5% Min. 0.5% Max.



Color Bulk Density True Specific Density Vickers Hardness
White 3.7g/cm3 6.0g/cm3 1100 HV



Size Φ mm



0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8 0.8-1.0
1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8 1.8-2.0 2.0-2.2
2.2-2.4 2.4-2.6 2.6-2.8 2.8-3.0 4 5
6 7 8 10 12 15
17 20 25 30 40 50

Special specifications can be customized.





























FEATURE OF ZIRCONIA GRINDING BEADS





1. High grinding efficiency
Due to the high specific gravity of the product, strong impact energy, higher speed and flow, the grinding time is saved and the grinding efficiency of the product is greatly improved.
2. Good toughness, not easy to wear

Suitable for grinding and dispersing materials with high hardness and high solid phase.
3. Many particle sizes and wide application fields.

The particle size ranges from 0.2-0.3mm to 30mm, suitable for rough grinding and superfine grinding. Application cover paints, coatings, pigments and dyes, inks, ceramics, magnetic industries, cosmetics, lithium battery industries, various mineral grinding, etc.





APPLICATION OF ZIRCONIA GRINDING BEADS



1. Pigments, dyes, paints, coatings, inks, etc.
2. Magnetic materials and electronic pastes.
3. Medicine, food, cosmetics.
4. Electronic ceramics
5. New energy lithium battery industry
6. Non-metallic minerals





Yittrium Stabilized Zirconia Grinding beads is especially suitable for horizontal sand mill, high-speed stirring mill, vibration mill, ultra-fine mill and various bar pin sand mills with high linear speed;



ZrO2 95% Yttrium Zirconia Grinding Media Stabilized Ceramic Beads Milling 0
