95 Yttrium Stabilized Zirconia Beads Grinding Media For High Hardness Materials

95 Yttrium Stabilized Zirconia Beads Grinding Media For High Hardness Materials

Product Details:

Place of Origin: Shanxi,China
Brand Name: Zirnano
Certification: ISO
Model Number: 0.2-10mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 25kg barrel+ Pallet
Delivery Time: Within 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500mt per Year
Get Best Price Contact Now

Detail Information

Commodity: 95 Zirconia Beads Product Name: 95 Yttrium Stabilized Zirconia Beads
Usage: Grinding Media Main Chemical: 94.5% ZrO2
Bulk Density: 3.6g/cm3 True Gravity: 6.0 G/cm3
Vicker Hardness: ≥1100HV Product Process: Sintering
Self Consumption: <0.3 Ppm/h Compressive Strength: ≥2.0KN Φ2mm
High Light:

Zirconia Beads Grinding Media

,

ytz grinding media

,

95 Yttrium zirconia milling media

Product Description

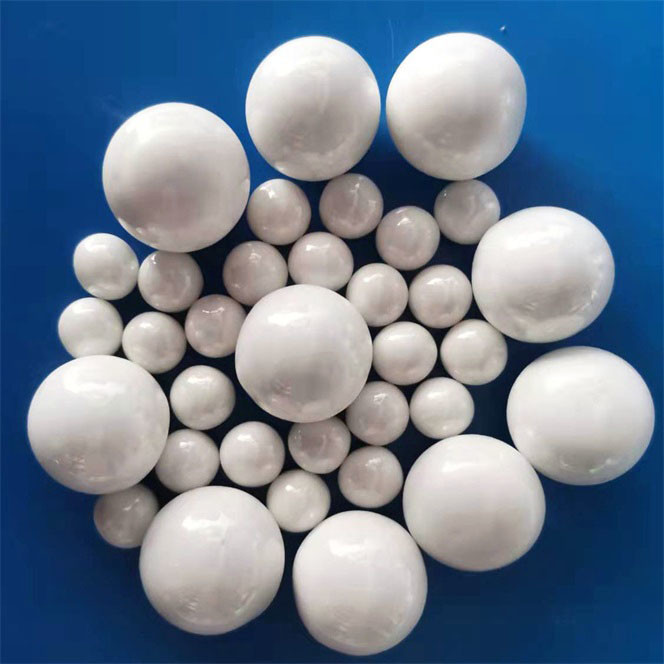

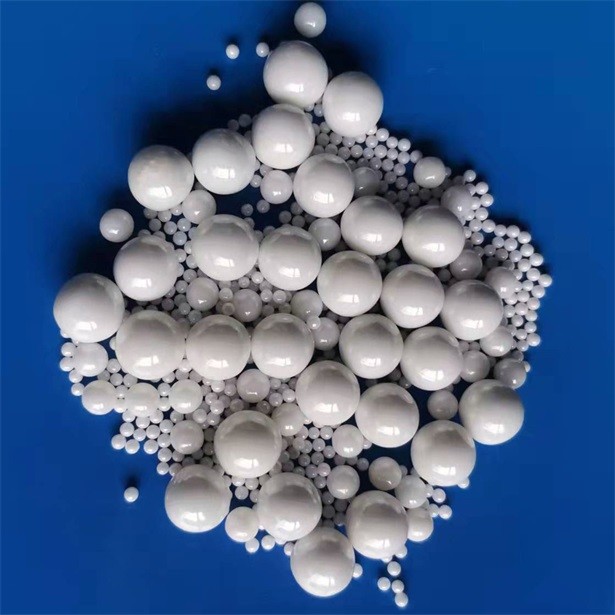

95 Yttrium Stabilized Zirconia Beads Grinding Media for high hardness Materials

1. Product Description of 95 Zirconia Beads

95 Yttrium stabilized zirconia beads is one perfect grinding media,it selects the high quality micron and sub-nano-level powder as raw material,then made into different size by special technology.

It contains about 95 ZrO2, also called as 95 zirconia beads, it has the outstanding features of pearly smooth surface and high strength,especially suitable for grinding and dispersion of high viscosity materials.



2. Main Technical Data of 95 Zirconia Beads

Commodity Process Physical Index
95 Zirconia
Beads
Sintering Process
ZrO2 ≥95%
Y2O3 ≥4.5%
Others ≤0.5%

True Gravity≥6.0g/cm3
Bulk Density≥3.7g/cm3
Mohs Hardness :9 Mohs

Vicker Hardness>1350HV

Self Consumption<0.3 ppm/h
Compressive Strength≥2.0KN Φ2mm

size Φ0.1-0.2mm,Φ0.2-0.3mm,Φ0.3-0.4mm,Φ0.4-0.6mm,
Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,Φ1.2-1.4mm,
Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.6-1.8mm,Φ2.0-2.2mm,
Φ2.2-2.4mm,Φ2.4-2.6mm,Φ2.6-2.8mm ,Φ4mm,Φ5mm,
Φ6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm
Φ17mm,Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50m...
Special products can be customized



3. Main Features of 95 Zirconia Beads

Smooth surface, high hardness, good toughness;

Strong acid and alkali resistance, zero pollution to the treated materials;

Strong compressive strength, good impact resistance, not easy to be broken in high speed grinding process;

Good fluidity, low wear rate, little damage to the grinding equipment.



4. Main Applications of 95 Zirconia Beads

Suitable for wear-resistant and corrosion-resistant industries, such as coatings, textiles, pigments, painting

and dyeing...

Used for grinding and dispersing of high strength and high toughness products, such as magnetic materials...

Used as grinding media where requires zero pollution in grinding process, such as medicine, food, cosmetics...

Also used in ceramic industry,such as electronic ceramics, refractory ceramics, structural ceramics etc.

95 Yttrium Stabilized Zirconia Beads Grinding Media For High Hardness Materials 0



5. Applicable Equipments

Bar pin horizontal grinder,

Turbine horizontal grinder,

Special-shaped dispersed disk grinder,

ring grinder, centrifugal grinder, basket grinder etc.
