Yttrium Stabilized Zirconia Beads Media 1.2mm For Adhesives Pesticides Grinding

Yttrium Stabilized Zirconia Beads Media 1.2mm For Adhesives Pesticides Grinding

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: 0.1mm-50mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Price: Negotiation

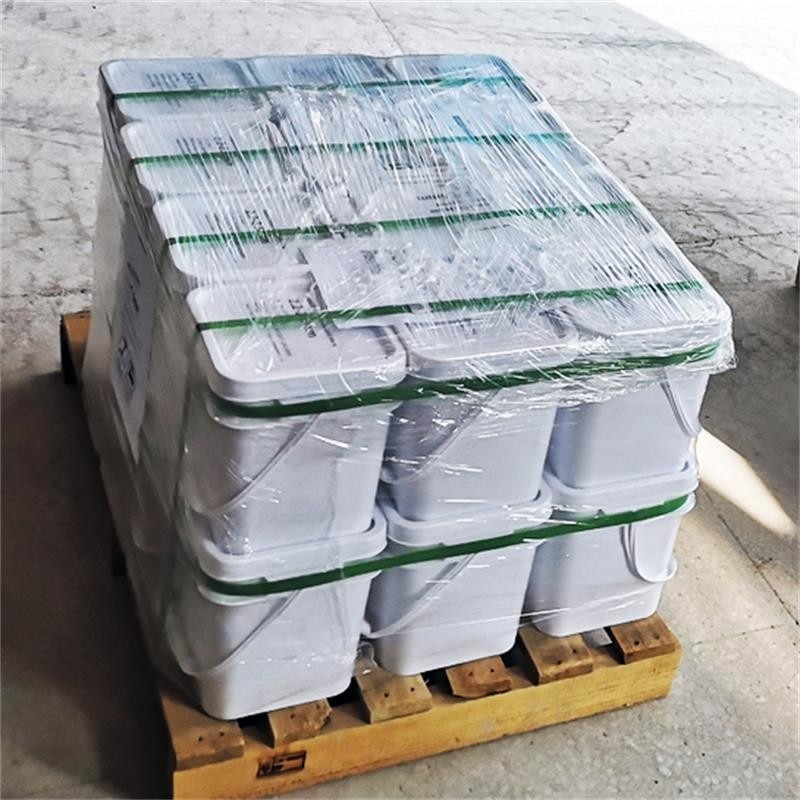

Packaging Details: 25kgs barrels+Pallet
Delivery Time: 5-20 days
Supply Ability: 500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Zirconia Milling Beads Color: Shiny White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Chemical Index: ZrO2 95%Min., Y2O3 4.5%Min. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

Yttrium Stabilized Zirconia Beads

,

Zirconia Beads Media 1.2mm

,

Zirconia Beads Media For Adhesives

Product Description

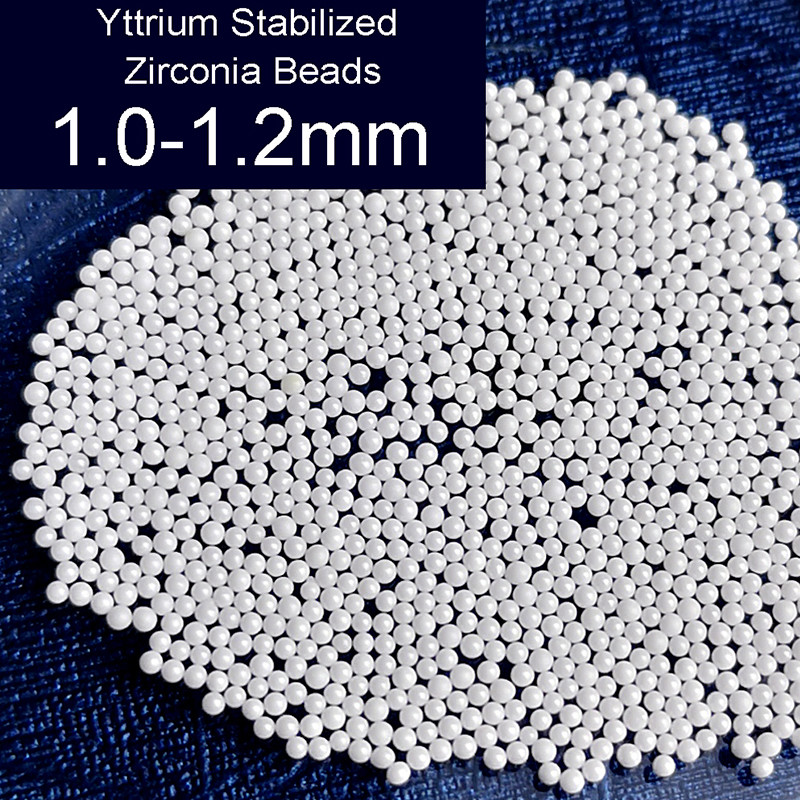

Yttrium stabilized Zirconia beads 1.0-1.2mm for adhesives, pesticides grinding



DESCRIPTION



Yttrium stabilized Zirconia beads grinding media is made of micron and sub-nanometer raw materials and advanced technology, the technical indicators are at the international excellent level; widely used for ultra-fine grinding and dispersion of "zero pollution" and high viscosity and high hardness materials. It is an ideal grinding media in wet grinding and dispersing applications.

Since zirconia beads can be ultra-fine grinding for high-viscosity materials, and zirconia beads do not pollute the materials, and the grinding cost is very low, the grinding of adhisives and pesticides is very dependent on it.





SPECIFICATION



Manufacturing process: Sintering Method



Chemical composition ZrO2 95% Min.     Y2O3 4.5% Min
Color Shiny white
Shape Sphere/ Bead / Ball
Density 6.0g/cm³ Min.
Specific density 3.7g/cm³ Min.
Moh's hardness 9
Impact Strength 2.9KN (2mm)
Compressive Strength 5500MPa
Modulus of Elasticity 200Gpa
Package 25kg/barrel



SIZES Φ MM
0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8
0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50



APPLICATION



Superfine grinding for:



Biomedicine;

Paints;

Dyes;

Inks;

Battery Slurry;

Pesticides;

Adhesives



Grinding fineness between 0.1 to 5um







FEATURES



1. Good Stability

Yttrium stabilized Zirconia beads has strong chemical stability, acid and alkali corrosion resistance, and will not react chemically with adhesives and pesticides.



2. Less pollution

Yttrium stabilized Zirconia beads has high zirconia content, high density, high toughness, no broken balls, low abrasion, and less pollution to adhisives and pesticiding dispersion when grinding.


3. Wear-resistant

The surface of Yttrium stabilized zirconia beads is smooth, not easy to wear or crack, and the surface can be kept smooth, which saves the amount and cost of supplementary balls, saves time and energy, and has less wear and tear on the sand mill.



4. High filling amount

Compared with other shaped materials, Yttrium stabilized zirconia beads have a smaller surface area to volume ratio, and the small volume of zirconia beads fills the voids, which improves the grinding efficiency.





APPLICABLE EQUIPMENT

  • Rod pin horizontal sand mill,
  • Turbine horizontal sand mill,
  • Special-shaped dispersing disc sand mill,
  • Ring sand mill,
  • Centrifugal sand mill,
  • Basket sand mill,
  • Nano sand mill and other equipment
