Size 30mm Zirconia Grinding Balls For Non-Metallic Ore Coarse Grinding In Mixing Mill

Minimum Order Quantity : 25kgs Price : Negotiation

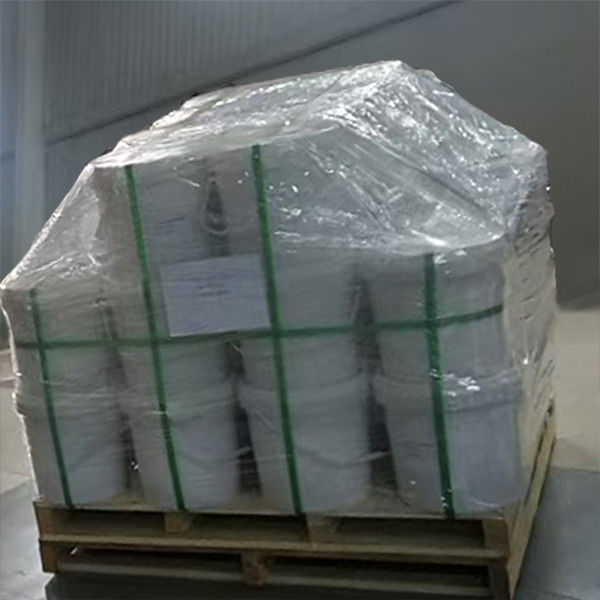

Packaging Details : 25kgs barrels+Pallet Delivery Time : 5-20 days
Supply Ability : 500mt per year
Place of Origin: Shanxi, China Brand Name: Zirnano
Certification: ISO9001, IS014001 Model Number: 0.1mm-50mm

Detail Information

Commodity Name: Zirconia Milling Beads Color: Shiny White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Chemical Index: ZrO2 95%Min., Y2O3 4.5%Min. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

30mm Zirconia Grinding Balls

,

Zirconia Grinding Balls for Ore Coarse

,

30mm Zirconia Grinding Media

Product Description

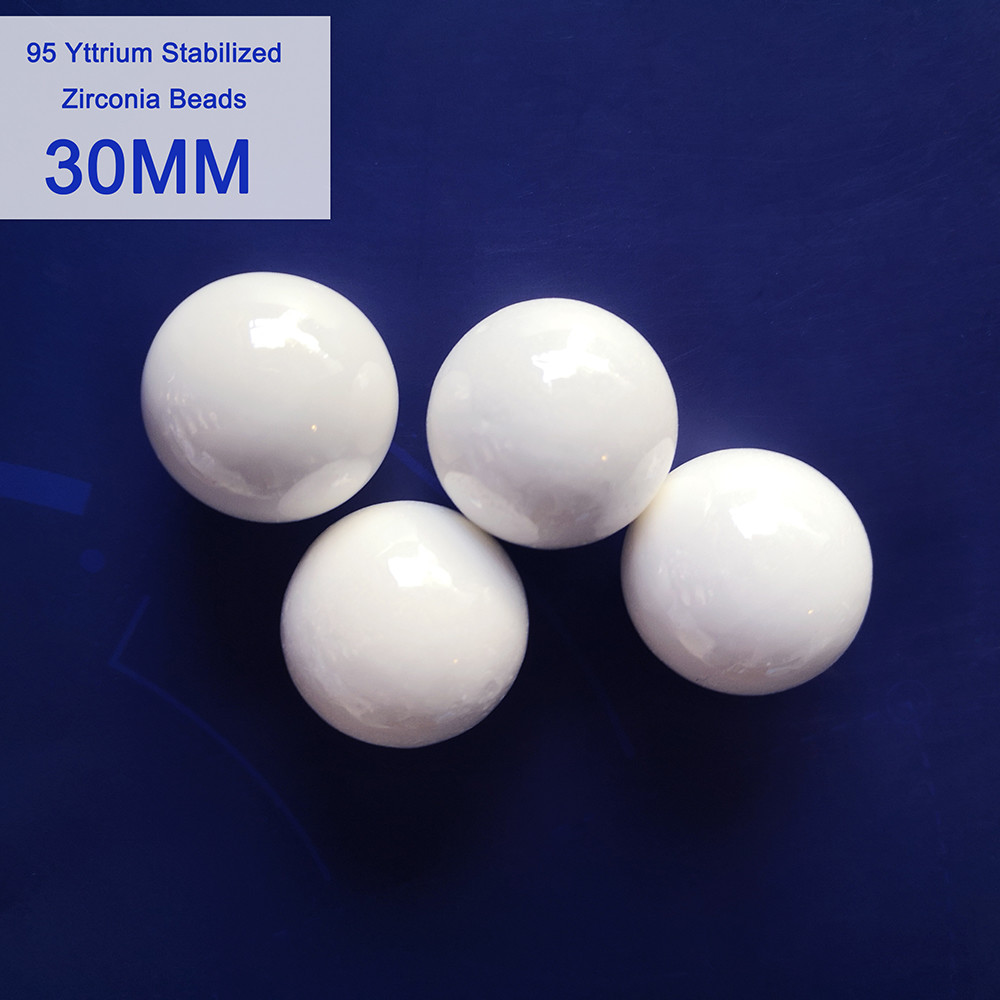

Size 30mm Zirconia balls for non-metallic ore coarse grinding in mixing mill



  • Discription

Zirconia balls belong to a class of grinding beads, with a density of 6.0, a bulk density of 3.2, a content of about 95% zirconium oxide, and a content of 4.8% yttrium. They are also called 95 yttrium stabilized zirconia balls.
Zirconia balls can be used as grinding and grinding media in stirring mills, sand mills, and ball mills.

  • Specification



Chemical composition ZrO2 94.8% Min. Y2O3 5.0% Min
Color Shiny white
Shape Sphere/ Bead / Ball
Density 6.0g/cm³ Min.
Specific density 3.7g/cm³ Min.
Moh's hardness 9
Impact Strength 2.9KN (2mm)
Compressive Strength 5500MPa
Modulus of Elasticity 200Gpa
Package 25kg/barrel



SIZES Φ MM
0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8
0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50



  • Features



High grinding efficiency:

Due to the high density of zirconia balls 6.00g/cm3, they have greater grinding kinetic energy at the same movement speed, and the grinding efficiency is 2-3 times higher than that of ordinary ceramic beads. You can get a more ideal effect.



Good Impact resistance and low abrasion:

Due to the high content of ZrO2, the zirconium beads have the advantages of high density, high toughness, low abrasion, no broken balls, peeling, etc., and it has little dispersal and pollution to the abrasive.

The abrasion is 4-10 times lower than ordinary ceramic beads.



Good thermal stability

Good wear resistance in high temperature and corrosion resistance, high rigidity, non-magnetic conductivity, and electrical insulation. When the zirconia ceramic ball is at 600℃, its strength and hardness are almost unchanged.





  • Application

Size 30mm Zirconia Grinding Balls For Non-Metallic Ore Coarse Grinding In Mixing Mill 0



Zirconia balls have been successfully used in heavy calcium, zirconium silicate, paint ink, kaolin, ceramic ink, ceramics, colored glaze, iron ore and other fields.
