JZB205 Ceramic Bead Blasting For Automatic Sandblasting Machine

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet Delivery Time : 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200mts per month
Place of Origin: China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: B205: 0.000-0.063mm

Detail Information

Main Material: 60-66% ZrO2 Usage: Open Sandblasting Machine
Commodity: Ceramic Beads Product Name: Ceramic Blasting Media
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Vicker Hardness: 700-900 HV Shape: Solid Round Ball White Color
High Light:

JZB205 Ceramic Bead Blasting


Sandblasting Machine Ceramic Bead Blasting



Product Description

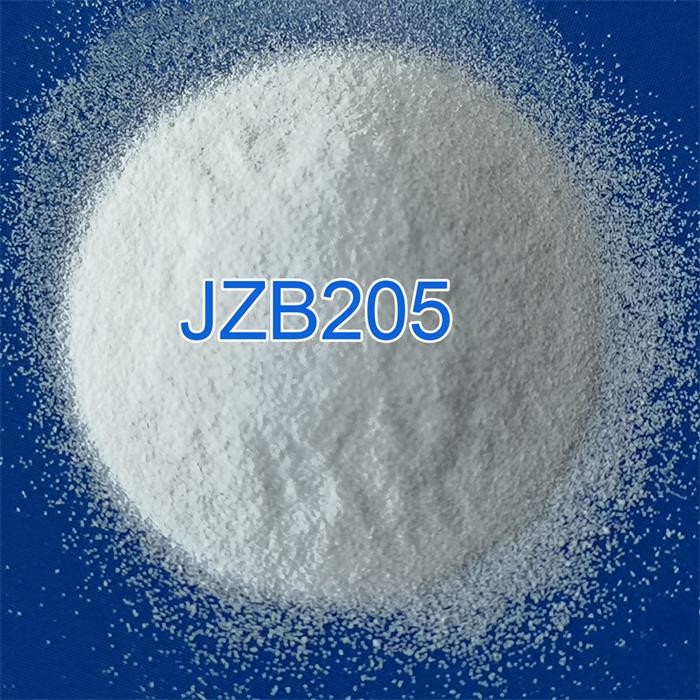

JZB205 Ceramic Bead Blasting For Automatic Sandblasting Machine


  • Commodity Description of ceramic beads JZB205


Ceramic bead is a kind of spherical sandblasting media with smooth surface, good elasticity and concentrated particle size.

It is a sandblasting mediua used for sandblasting and surface treatment.


JZB120-JZB505 fine grain parts are often used in stainless steel, aluminum alloy, titanium alloy, magnesium alloy and other workpiece surface sandblasting finishing, it can produce high quality finish, eliminate strong light, restore the metal color, and form a unique satin effect.


JZB205 Ceramic Bead Blasting For Automatic Sandblasting Machine 0


  • Chemical & Physical Index of JZB205


Chemical Index Production Process True Density Bulk Density Hardness
Vickers Mohs Rockwell

ZrO2 : 60-66%

SiO2: 25-30%

Al2O3: 7-13%

Smelting 3.85 2.3 700HV 7 60HRC
  • Sizes
B20: 0.600-0.850mm B80: 0.125-0.212mm B170: 0.045-0.090mm
B30: 0.425-0.600mm B100: 0.106-0.180mm B205:0.000-0.063mm
B40: 0.250-0.425mm B120: 0.063-0.125mm B400: 0.030-0.063mm
B60: 0.150-0.300mm B150: 0.053-0.106mm B505: 0.010-0.063mm
  • Features of Ceramic beads
1. Consistency of spherical shape and sizes provides smooth sating surface finish and consistent results from the first part to the last.
2.Outstanding elasticity provides a high impact force.
3. High wear resistance, high impact resistance, and low dust.

4. Cost-effective compared to glass beads, media consumption reduced up to 90% Vs glass Beads.

  • Fields of Application


Aerospace Industry: Titanium alloy material surface treatment.


Mould industry: Glass bottle moulds cleaning


Metal processing: Satin finish and shot peening strengthening,


Plastic and electronic industry: circuit board deburring, art effect


Automotive industry: Anti-fatigue and strengthening treatment on the surface of shock absorber spring


Turbine industry: anti-fatigue treatment and strengthening treatment on the surface of turbine blades


  • Applicable Equipment
  • Dry (air pressure) sandblasting machine
  • Wet sandblasting machine
  • Turbo sandblasting machine
  • Package


25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper carton+Pallet
