• JZB100(0.106-0.180mm) Zirconia Ceramic Bead Blasting Media JZB60(0.150-0.300mm)
  • JZB100(0.106-0.180mm) Zirconia Ceramic Bead Blasting Media JZB60(0.150-0.300mm)
JZB100(0.106-0.180mm) Zirconia Ceramic Bead Blasting Media JZB60(0.150-0.300mm)

JZB100(0.106-0.180mm) Zirconia Ceramic Bead Blasting Media JZB60(0.150-0.300mm)

Product Details:

Place of Origin: CHINA
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100kgs
Price: Negotiable

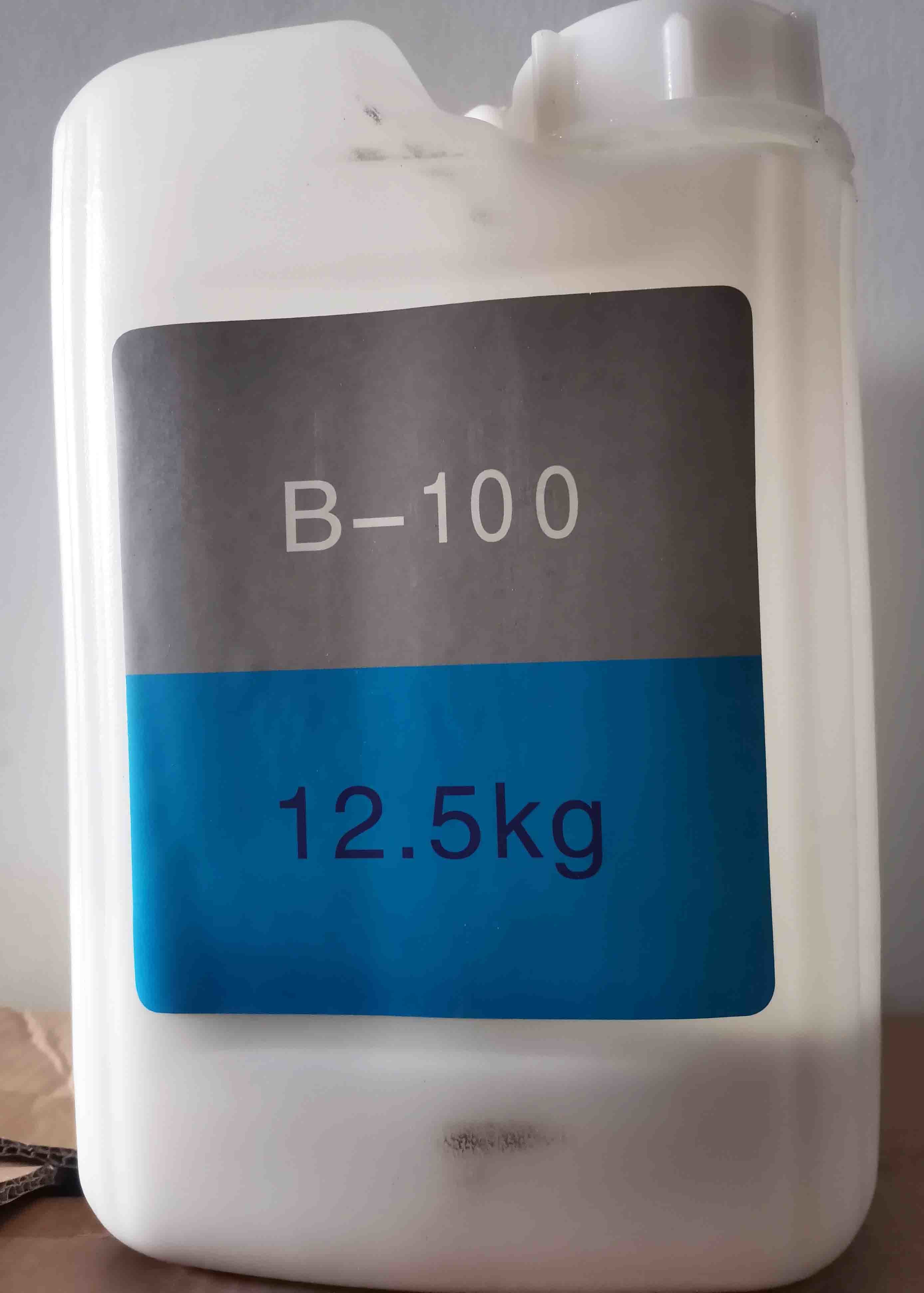

Packaging Details: 25KG BARREL+PALLET,2*12.5KG BARREL+CARTON+PALLET
Delivery Time: 3-7 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000mts per year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Media Product Name: Ceramic Beads,Zirconia Sand
Shape: Spherical Main Chemical: ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30%
Hardness: ≥700HV Bulk Density: 2.3g/cm3
Popular Size: B40,B60,B120,B205 B100: 0.106-0.180mm
High Light:

Zirconia Ceramic Bead Blasting Media

,

JZB100 Ceramic Bead Blasting Media

,

JZB60 Ceramic Bead Blasting Media

Product Description

JZB100(0.106-0.180mm) JZB60(0.150-0.300mm) Zirconia Ceramic Bead Blasting Media

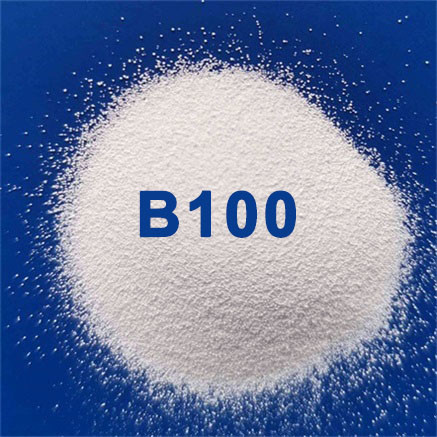

1. Product Description of Ceramic Bead Blasting

Ceramic bead blasting media ,it selects the high quality zircon sand as main material,then melt in

electronic furnace under high temperature over 2000 degreess,finally made into different microbeads.



Ceramic bead contains 60-66% ZrO2,7-13% Al2O3,25-30% SiO2,it is also called as zirconia sand.

It is suitable for metal surface finish due to its smooth surface,good elasticity,high hardness.



Compared with glass beads and steel shot,ceramic bead blasting media has medium density,which can

make up the blind area of lower and upper limit of sandblasting.



Ceramic Beads Blasting  is one clean and economic blasting media for long term blasting process.



2. Main Technical Data of Ceramic Beads

Commodity Main Chemical Index Main Physical Index

Ceramic Bead Blasting
ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13% Vickers Hardness: 700 kg /mm2
Particle Size
(Ceramic Bead Blasting)
B20: 0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150:0.000-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.010-0.030mm
Remark: Special specification can be customized



3. The Advantages of Ceramic Blasting Media

Long service life

Ceramic bead has dense crystal structure,good toughness and high hardness,low breakdown rate,it can

be recycled for many times. Its service life can be prolonged to be 20 times compared with the one of

glass beads.



Low dust

Ceramic bead blasting media will generate little dust in whole blasting process,which will provide one clean

and bright working condition,aslo ensures worker to escape from the hidden danger of

silicosis,finally reduces the treatment cost of solid waste.



No Ferrous Contamination

Ceramic beads has zero ferrous contamination to the treated workpieces,it can replace steel shot where

ferrous contamination is not allowed.



4. Main Applications of Ceramic Bead Blasting Media

Surface cleaning for molds,die castings,tire molds,welded steel components,forged and casted metals...

Surface Finish for metal shell,precison machinery...

Surface preparation for all kinds of steel, aluminum and other non-ferrous alloys ...

Surface finish for light alloy,stainless steel parts,plastic parts...

JZB100(0.106-0.180mm) Zirconia Ceramic Bead Blasting Media JZB60(0.150-0.300mm) 0

5. Why Choose us?

Professional manufacturer:

Equipped with the most advanced production line and professional staffs,annual output over 3000mts;



High Cleanliness:

All the ceramic beads are screened more than six times and blow-cleaning under high temperature,which

provides higher clearliness and ensures it to be work normally in humid weather;



More Competitive Price/performance Ratio:

Our plant locates in mountain area,it has lower production cost and environmental protection cost,so price

is more competitive than the other plants’.



Stable Supplier of Famous enterprises:

We are the stable supplier of Foxconn,Samsung electronics...
