180um B100 Ceramic Beads For Car Wheel Hub Sandblasting Surface Treatment

180um B100 Ceramic Beads For Car Wheel Hub Sandblasting Surface Treatment

Product Details:

Place of Origin: China
Brand Name: ZIRNANO
Certification: ISO9001,ISO14001
Model Number: B100: 0.106-0.180MM

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25kg barrel+pallet or 2*12.5kg barrel+ paper carton box + pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Vicker Hardness: 700 HV Applicable Equipment: Automatic Sandblasting Machine
Product Name: Ceramic Blasting Media Commodity: Ceramic Blasting Beads
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Main Material: 60-66% ZrO2 Shape: Solid Round Ball
High Light:

B100 Solid Ceramic Beads

,

Wheel Hub Sandblasting Ceramic Beads

,

Surface Treatment Ceramic Beads

Product Description

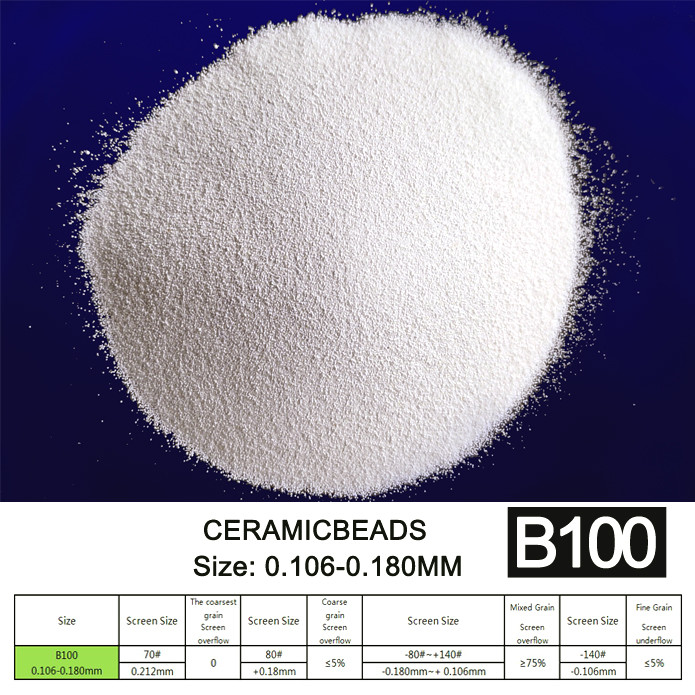

B100 Size 106-180 μm Ceramic beads for car wheel hub sandblasting surface treatment



  • Product Name



 B100 Size 106-180 μm Ceramic beads for car wheel hub sandblasting surface treatment



  • Commodity Description



 Ceramic beads is made of zircon sand imported from Australia, then melted and smelted at high temperature above 2000℃ in a high-temperature furnace. Beads sizes available from B20 to B505.



It has the characteristics of high hardness, good elasticity, long service life, reusable, no dust pollution, and no metal residue, etc.



  • Chemical & Physical Index
Chemical Index Production Process

True

Density

Bulk

Density

Hardness
Vickers Mohs Rockwell

ZrO2 : 60-66%

SiO2: 25-30%

Al2O3: 7-13%

Smelting 3.85 2.3 700HV 7 60HRC

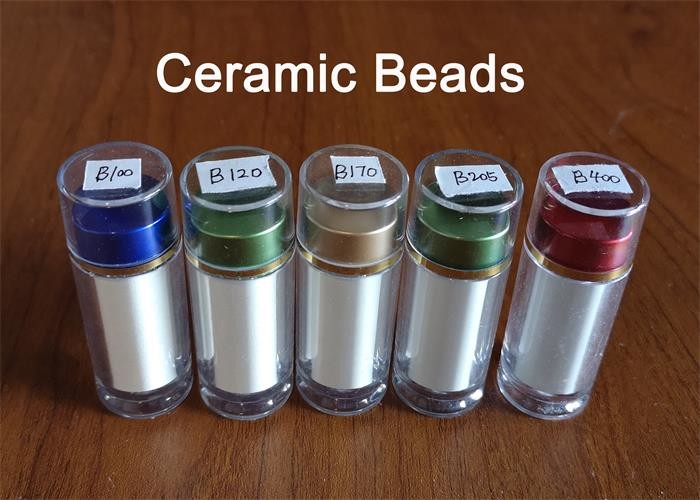

  • Sizes
B20: 0.600-0.850mm B80: 0.125-0.212mm B170: 0.045-0.090mm
B30: 0.425-0.600mm B100: 0.106-0.180mm B205:0.000-0.063mm
B40: 0.250-0.425mm B120: 0.063-0.125mm B400: 0.030-0.063mm
B60: 0.125-0.250mm B150: 0.053-0.106mm B505: 0.010-0.063mm
  • Features of Ceramic beads



001: Good elasticity

A sufficiently fine grain size provides a high modulus of elasticity: the surface of 330GPa ceramic bead is smooth and the grains rebound at multiple angles during use. It is suitable for the surface treatment of complex workpieces.



002: Long service life

Ceramic beads has a long service life and is cost-effective: The service life of ceramic bead blasting media is more than 20 times that of glass beads. Ceramic beads will not wear out. Ceramic beads will only be broken into fragments. Unbroken ceramic beads still maintains its original size, shape, hardness and smoothness.



003: No dust

Ceramic beads is hardly broken and does not produce dust. Ceramic beads can effectively reduce the dust content and final waste in the working environment, and can effectively protect the environment and prevent pollution.



004: Reduce labor costs

Ceramic beads has high hardness, long life, good elasticity, low abrasion, and can effectively reduce the frequency of material replacement and reduce labor costs.

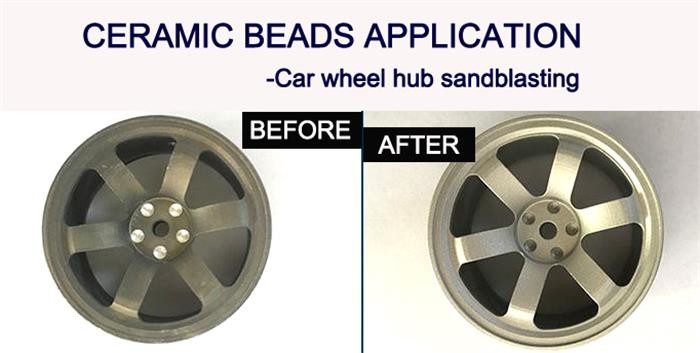

  • Application for  aluminum alloy wheels sandblasting

It is suitable for automobile aluminum alloy wheels, inner walls of automobile cylinder liners, automobile aluminum alloy parts, automobile gear built-in parts, and automobile gearbox built-in parts. In addition to surface finish, it can also effectively improve metal fatigue life and remove stress.







The workpiece processed by ceramic beads, can not only achieve the effect of rust removal and satin finish, but also form a strengthening layer on the surface of the workpiece, which improves the surface hardness and wear resistance of the workpiece. This objectively prolongs the service life of the processed workpiece. And the use of ceramic beads to process the workpiece has also improved the overall environment, greatly reducing dust pollution and reducing the occurrence of occupational diseases (silicosis).





180um B100 Ceramic Beads For Car Wheel Hub Sandblasting Surface Treatment 0











  • Package



25kgs /Barrel+Pallet or 12.5kgs/Barrel, 2 barrels / Paper carton+Pallet



  • Why Choose us?



1. Supply full sizes of ceramic blasting beads.

2. Quality Assurance- SGS certified and Provide Factory Test report each shipment.

3. ISO 9001 & ISO14001 Certified.

4. Good presale and after sale service-1 kg free samples, MSDS, TDS, COA.

5. Fast online price quotation.

6. Rest assured order follow-up.









Please contact us to get updated price of any size of ceramic beads.
