Stainless Steel Parts Round Solid Ceramic Bead Blasting
Contact Person : Caroline Cui
Phone Number : 86-15003865330
WhatsApp : +8615003865330
Minimum Order Quantity : | 100kgs | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 25KG BARREL+PALLET,2*12.5KG BARREL+CARTON+PALLET | Delivery Time : | 3-7 days after order confirmed |
Payment Terms : | L/C, T/T, Western Union, MoneyGram | Supply Ability : | 3000mts per year |
Place of Origin: | CHINA | Brand Name: | Zirnano |
---|---|---|---|
Certification: | ISO9001,ISO14001 | Model Number: | B20-B505 |
Detail Information |
|||
Commodity: | Ceramic Beads | Product Name: | Ceramic Blasiting Media,Zirconia Beads |
---|---|---|---|
Shape: | Spherical | Main Chemical: | ZrO2 60-66%,Al2O3 7-13%,SiO2 25-30% |
Hardness: | ≥700HV | Bulk Density: | 2.3g/cm3 |
True Gravity: | 3.85g/cm3 | Specification: | B20-B505 |
High Light: | Zirconia Sand Ceramic Bead Blasting,Mold Cleaning Ceramic Beads,700HV B30 Ceramic Beads |
Product Description

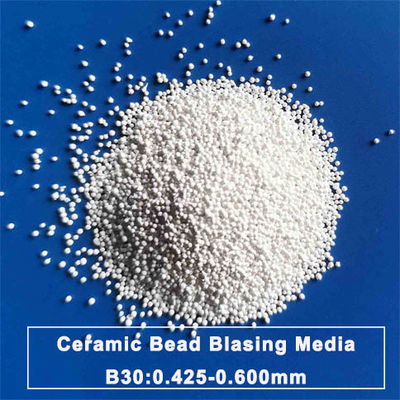

Ceramic Bead Blasting Media Zirconia Sand B30 0.425-0.600mm B40 0.250-0.425mm for Mold Cleaning
1. Product Description
Ceramic beads is one round solid beads,it selects the high quality zircon sand as main material, then
fused in arc furnace over 2000 degrees,finally screened into different mircobeads by special technologies,
it is one clean and high efficient blasting media.
There is little dust generated in ceramic bead blasting process,which will provide one clean and bright
working condition,also keep the worker escaping from the hidden danger of silicosis. Then ceramic beads
usually replace glass beads where one clean working condition is required.
Ceramic beads is also able to replace steel shot where non-ferrous contamination is required.
It is one popular blasting meida.
2. Main Technical Data
Commodity | Chemical Index | Physical Index |
Ceramic Bead Blasting Media |
ZrO2 60-66% SiO2 25-30% Al2O3 7-13% |
Vicker Hardness≥700HV Bulk density:2.3g/cm3 True Gravity≥3.85g/cm3 |
Particle Size | ||
B20 | B30 | B40 |
0.600-0.850mm | 0.425-0.600mm | 0.250-0.425mm |
B60 | B80 | B100 |
0.150-0.300mm | 0.125-0.212mm | 0.106-0.180mm |
B120 | B150 | B170 |
0.063-0.125mm | 0-0.125mm | 0.045-0.090mm |
B205 | B400 | B505 |
0-0.063mm | 30-63μm | 0-30μm |
Remark: Special size can be customized. |
3. Main Applications:
Metal surface finish for 3C products,its built-in parts,as well as accessories...
Surface cleaning for mold cleaning,die casting, tire molds...
Surface preparation before electroplating,anodizing...
Metal finish for light alloy,stainless steel parts...
Surface cleaning for electronic products,circuit board...
Shot peening for metal parts...
4. How to judge the quality of ceramic beads?
Good ceramic beads has higher sphericity no less than 85%, the beads are rounder seen from the beads’
shape.
Good ceramic beads also has in higher cleanliness no less than 99%,which will be sunk into the bottom of
water quickly. While the water in container is still cleaner,not muddy.
The quality also can be judged easily from the appearance of beads, Good beads has whiter color and more
uniform particle size distribution.
5. Package of Ceramic Beads
25kg round barrel+ Pallet
25kg square barrel+ Pallet
25kg round barrel+ Wooden Box
