Solid 700HV B60 Zirconium Silicate Ceramic Cleaning Media
Product Details:
| Place of Origin: | Shanxi,China |
| Brand Name: | Zirnano |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+ Pallet,2*12.5kg barrel+Carton+Pallet |
| Delivery Time: | 2-4 days after order confirmed |
| Payment Terms: | L/C, MoneyGram, Western Union,paypal |
| Supply Ability: | 3000mts per year |
|
Detail Information |
|||
| Commodity: | Ceramic Bead Blasting | Product Name: | Ceramic Beads |
|---|---|---|---|
| Shape: | Round Solid Beads | Bulk Density: | 2.3g/cm3 |
| True Gravity: | 3.85g/cm3 | Main Chemical: | 60-66% ZrO2,25-30% SiO2,7-13% Al2O3 |
| Hardness: | 700HV Min | Size: | B60: 0.150-0.300mm |
| High Light: | Zirconium Silicate Cleaning Media,700HV B60 Ceramic Beads,B60 Ceramic Cleaning Media |
||
Product Description
700HV Zirconium Silicate Ceramic Bead Blasting JZB60, JZB120,JZB205 for Metal Surface Finish

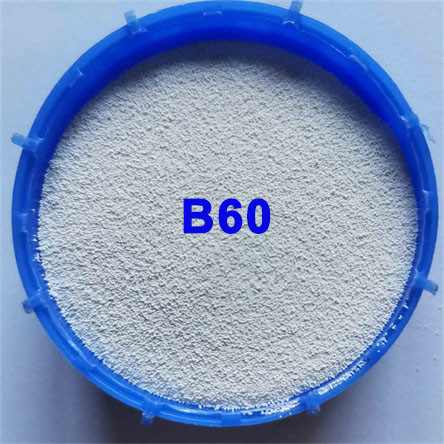

1. Product Description of Ceramic Bead Blasting
Ceramic beads is also called as zirconium silicate ceramic beads,it selected the high quality zircon sand
as main material,then fused in high furnace arc,finally made into different microbeads by special technology.
It is one clean and high effective blasting media,which has the outstanding features of higher hardness,
higher density,lower break-down rate.
There is little dust generated in the blasting process,so it can be used to replace glass beads where one
clean and bright blasting condition is required.
The service life of ceramic beads can be prolonged 25-30 times compared with the one of glass beads.
2. Main Technical Data of Ceramic Beads
| Commodity | Main Chemical Index | Main Physical Index |
Ceramic Bead Blasting |
ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 | |
| Particle Size (Ceramic Bead Blasting) |
B20: 0.600-0.850mm | B120: 0.063-0.125mm |
| B30: 0.425-0.600mm | B150:0.000-0.125mm | |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm | |
| B60: 0.150-0.300mm | B205: 0.000-0.063mm | |
| B80: 0.125-0.212mm | B400: 0.030-0.063mm | |
| B100: 0.106-0.180mm | B505: 0.010-0.030mm | |
| Remark: Special specification can be customized | ||
3. Main Applications:
Metal surface for 3C products as well as its accessories;
Surface finish for metal pipelines,heat treated products;
Surface cleaning for glass-bottle moulds,tire moulds,die casting ect.
Surface preparation before electroplating,anodizing etc
Deburring for electronic components such as circuit board etc
Surface finish for cosmetic finishing,presion deburring,Contaminant removal etc
Shot Peening in areospace and automotive industry to produce parts with lower weight and improved
fatigue resistance

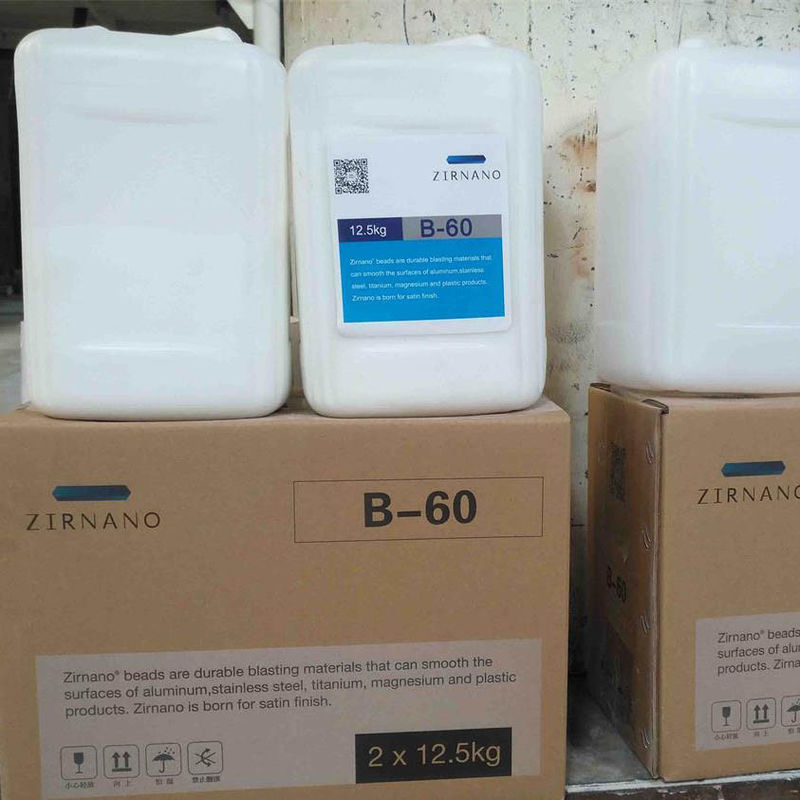

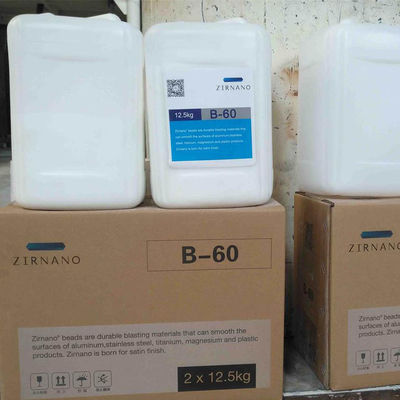

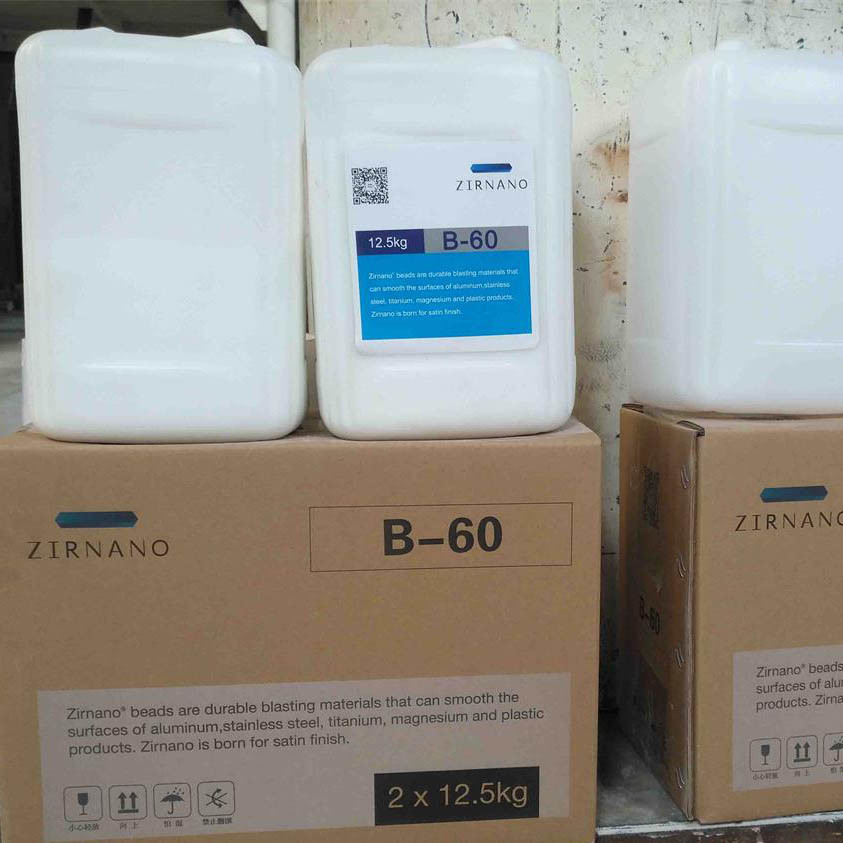

4. Main packages of ceramic beads
25kg barrel+pallet;
2*12.5kg barrel+pallet;
25kg barrel+ Wooden Box.
Special package can be customized.
5. Applicable Equipment
Manual sandblasting machine;
Automatic sandblasting machine;
Open type sandblasting machine;
Sandblasting machine room.
6. Why ceramic beads is widely used as one popular blasting media?
Ceramic beads has good sphericity,high hardness and smooth surface, it can be rebounded in multi
angles in the process of sandblasting ,especially suitable for the complicated structure(Metal
or plastic workpieces).
Ceramic beads has lower break-down rate,people do not need to refuel the beads frequently,finally it
will save the refuel time and finally achieve more consistent blasting effect.
It will aslo provide one clean and bright working condition,people will escape from the hideen danger
of silicosis and also reduce the treatment cost of solid waste.
Therefore ceramic beads is one high effective and popular blasting media.
