• Round Solid Ceramic Bead Blasting Media For Metal Surface Finish
  • Round Solid Ceramic Bead Blasting Media For Metal Surface Finish
Round Solid Ceramic Bead Blasting Media For Metal Surface Finish

Round Solid Ceramic Bead Blasting Media For Metal Surface Finish

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25 kg barrel + Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Bead Blasting Media Product Name: Ceramic Beads
Usage: Blasting Media Color: White
Vicker Hardness: 700HV Min Buck Density: 2.2±0.1 G/cm3
Sphericity: 85% Shape: Solid Round Beads
High Light:

abrasive media blasting


low dust blasting media

Product Description

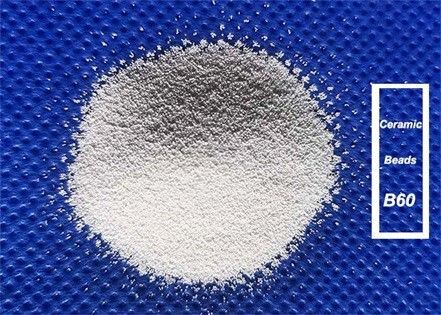

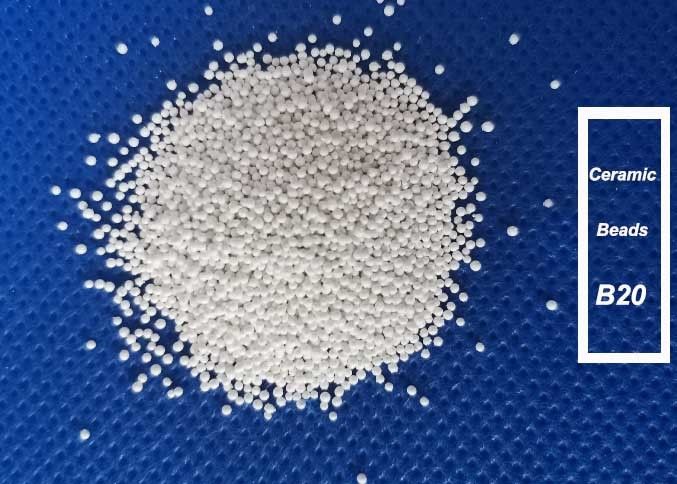

Round Solid Ceramic Bead Blasting Media B100 B80 B60 B40 B30 B20 for Metal Surface Finish

1. Product Description of Ceramic Bead Blasting Media

Ceramic beads is also called as ceramic microbeads, it selects the high quality zircon sand as main raw

material,then fused in arc furnce under high temperature,then made in to different beads after special

spray cooling technology.It is one solid round beads with the outstanding features of high heat resistance,

low expansion rate,widely used in blasting applications.

2. Main Technical Data of Ceramic Beads

Commodity Chemical Index Physical Index
Ceramic Beads
(Melting Process)
ZrO2 60-66% Bulk density:2.3g/cm3
SiO2 25-30% True Gravity ≥3.85 g/cm3
Al2O3 7-13% Vicker Hardness≥700 HV
Particle Size B20:0.600-0.850mm B120: 0.063-0.125mm
B30: 0.425-0.600mm B150:0.053-0.106mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.150-0.300mm B205: 0.000-0.063mm
B80: 0.125-0.212mm B400: 0.030-0.063mm
B100: 0.106-0.180mm B505: 0.010-0.030mm
Special specification can be customized


3. Main Applications of Ceramic Beads

Surface cleaning for Mould cleaning such as galss-bottle moulds,tire moulds etc.


Surface finish for 3C products such as mobilephone metal shell,computer monitor shell as well as its

accessories of power bank,USB disk,mobile phone camera decoration etc.


Sandblasting for stainless steel products such as tableware,sanitary wares etc.


Surface finish for aluminum alloy and titanium alloy products,magnesium alloy such as door handles,

glasses frames etc;


Deburring for electronic products such as circuit board etc.


Surface strengthen for springs,gears,aircraft impellers to eliminate the stress and improve its strength

and service life.

Round Solid Ceramic Bead Blasting Media For Metal Surface Finish 0

4. Which kind of material can be blasted by Ceramic Beads?

Products made by titanium alloy Ti-6Al-4V,Ti-5Al-2.5Sn,Ti-2Al-2.5Zr,Ti-32Mo,,Ti-Pd,SP-700,Ti-6242,

Ti-1023,BT9,BT20,IMI829,IMI834 etc.;


Workpieces made by magnesium alloy AZ91D, AM60B, AM50A,AS41B etc.;


Aluminum alloy such as2011,2017,2618,2024,4032,6061,6082,6262,6N01,6063,5056,2014,2017,5083 etc.;


Stainless steel products such as 201,202,301,303,304,304L,316,316L,321,310S,401,409,410,420J1,

420J2,430,439,443,444 etc.;


Plastic products such as PA66,PC,POM,PBT,PC/ABS,ETFE,PTFE,PPS,PS,PBT,475 etc.


5. Our Advantages of Zirnano Ceramic Beads

Higher Cleanliness

All the ceramic beads are screened more than six times and blow-cleaning under high temperature,which

provides higher clearliness and ensures it to be work normally in humid weather;


Guaranteed Product Quality

All products is traceable from the very beginning of raw material to the final products,each shipment will

be tested even for one some quantity sample,providing good quality & stable performance


High price/performance Ratio

Our plant is located in mountain area,with competitive environmental costs and staff salaries,finally providing

more competitive price
