Zero Pollution 95 Yttrium Stabilized Zirconia Beads Grinding Media 0.1-0.2mm,1.8-2.0mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Zirnano |
| Certification: | ISO14001,ISO9001,SGS,ROHS |
| Model Number: | 0.1-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kg barrel+Pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300mts per year |
|
Detail Information |
|||
| Commodity: | 95 Yttrium Stabilized Zirconia Beads | Product Name: | 95 Zirconia Beads |
|---|---|---|---|
| Usage: | Grinding Media For High Viscosity Slurry | Color: | White |
| Shape: | Spherical | Bulk Density: | 3.7g/cm3 |
| True Gravity: | 6.0g/cm3 | Vicker Hardness: | 1100HV |
| Main Chemical: | 95% ZrO2 | ||
| High Light: | zirconia ceramic balls,zirconium oxide beads |
||
Product Description

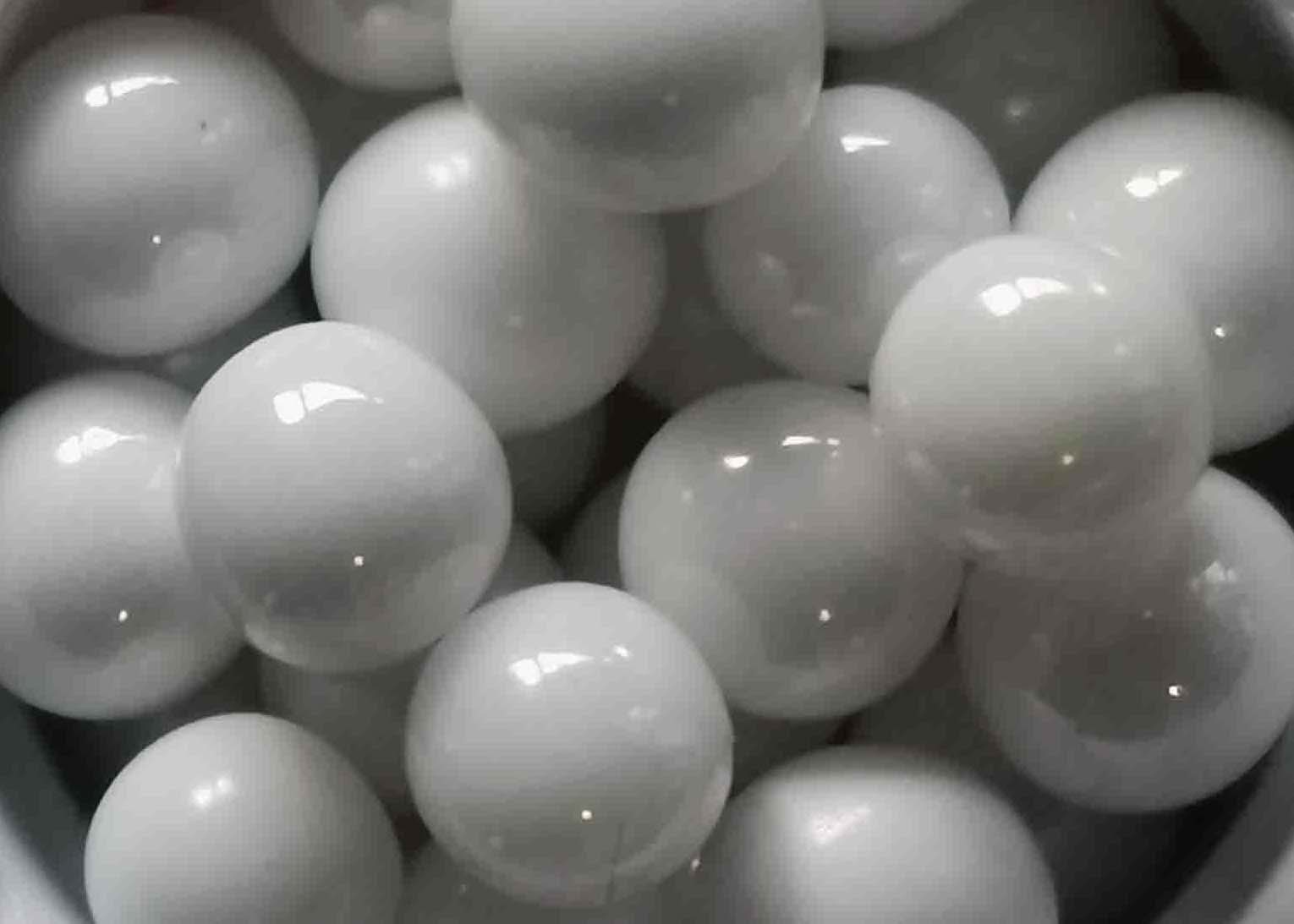

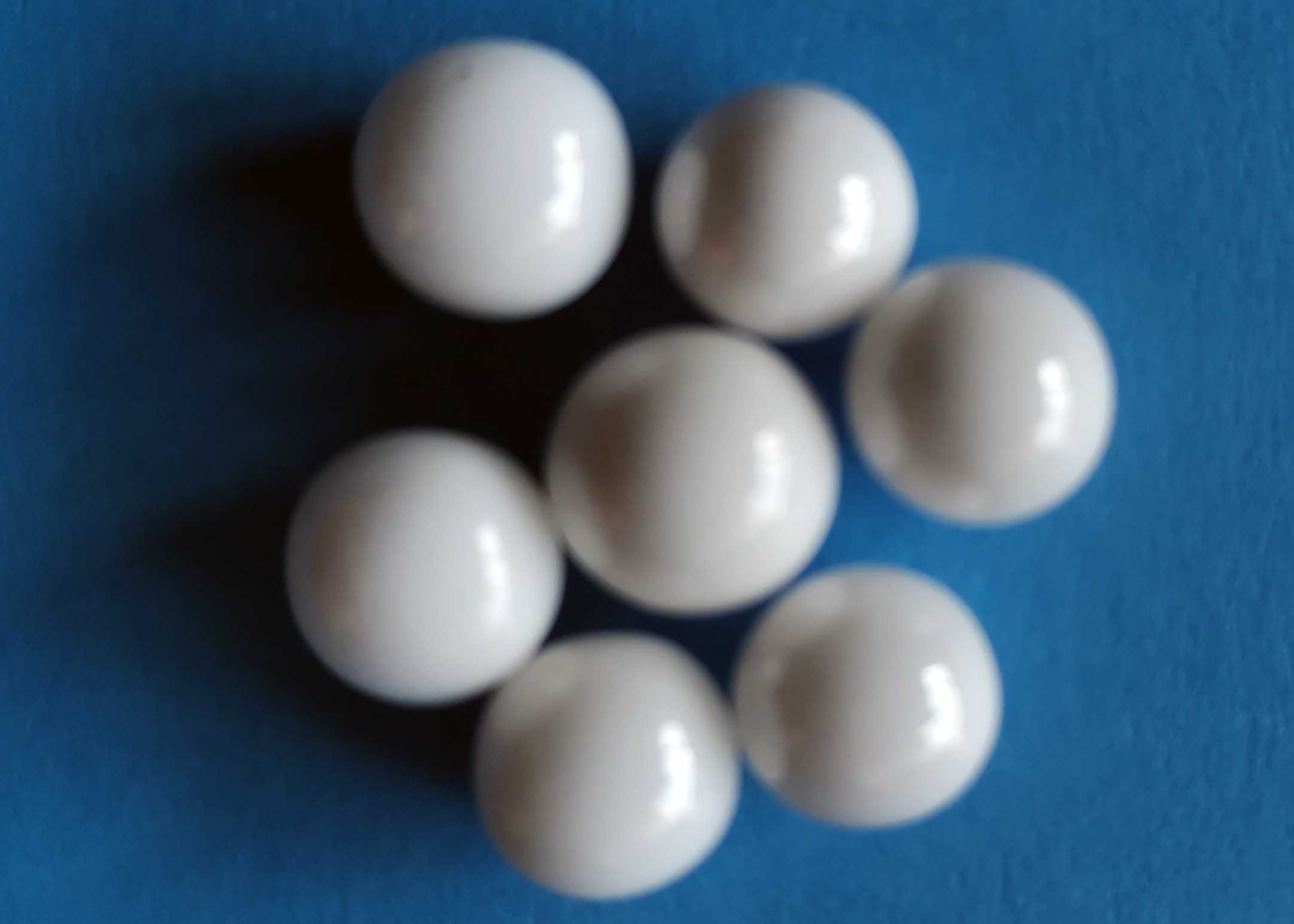

Zero Pollution 95 Yttrium Stabilized Zirconia Beads Grinding Media 0.1-0.2mm,1.8-2.0mm
1. Product Description of 95 Yttrium Stabilized Zirconia Beads
95 Yttrium Stabilized Zirconia Beads is also called as 95 zirconia beads,it is made by sintering process,
using the rare earth yttrium oxide as stabilizer,which is used for the ultra-fine grinding of high viscosity slurry.
2. Main Technical Data of 95 Zirconia Beads
| Commodity | Typical Chemical Index | Main Physical Index |
|
95 Yttrium Stabilized Zirconia Beads |
ZrO2 ≥95% | True Gravity ≥6.0g/cm3 |
| Y2O3 ≥4.5% | Bulk Density ≥3.7g/cm3 | |
| Others ≤0.5% | Vicker Hardness ≥1100 HV | |
| sintering process | compressive strength ≥2.0KN (Φ2mm) |
| Specification | |||
| Φ0.1-0.2mm | Φ0.2-0.3mm | Φ0.3-0.4mm | Φ0.4-0.6mm |
| Φ0.6-0.8mm | Φ0.8-1.0mm | Φ1.0-1.2mm | Φ1.2-1.4mm |
| Φ1.4-1.6mm | Φ1.6-1.8mm | Φ1.8-2.0mm | Φ2.0-2.2mm |
| Φ2.2-2.4mm | Φ2.4-2.6mm | Φ2.6-2.8mm | Φ2.8-3.0mm |
| Φ4mm | Φ5mm | Φ6mm | Φ7mm |
| Φ8mm | Φ9mm | Φ10mm | Φ12mm |
| Φ15mm | Φ17mm | Φ20mm | Φ25mm |
| Φ30mm | Φ40mm | Φ45mm | Φ50mm |
| Special Specification can be customized | |||
3. Main Features of 95 Zirconia Beads
Smooth surface, high density, high strength;
Good chemical inertness, strong acid and alkali resistant;
Good compressive strength & impact resistance, low abrasion rate;
No pollution to the slurry and little damge to the grinding machine.
4. Main Applications
For ultra-fine grinding of paint,coating,inks,dye etc;
Forultra-fine dispersion of electronic materials and magnetic materials;
For grinding and dispersion of lithium battery;
For grinding and dispersion of pharmaceutical industry
5. Applicable Grinding Equipments:
Suitable for horizontal sand mills, high-speed stirring mills, vibration mills, ultra-fine mills, and various
high-speed rod-pin sand mills as well as turbine sand mill etc.
6. Why Choose us?
Professional Manufacturer,Multiple Authentication
Certificated by ISO9001 ISO14001,SGS,ROHS
Guaranteed Product Quality
All products is traceable from the very beginning of raw material to the final products,each shipment
will be tested even for one some quantity sample,providing good quality & stable performance;
High price/performance Ratio
Our plant is located in mountain area,with competitive environmental costs and staff salaries,finally
providing more competitive price;
Flexible Cooperation models
We will provide flexible cooperation model and payment terms no matter you are the final users or distributor etc.
