Stainless Steel Parts Round Solid Ceramic Bead Blasting
Contact Person : Caroline Cui
Phone Number : 0086-15003865330
WhatsApp : +008615003865330，008613598099524
|Minimum Order Quantity :||100KGS||Price :||Negotiable|
|Packaging Details :||25kg barrel+pallet or 2*12.5kg barrel + Pallet||Delivery Time :||Within 3-5 days after order Confirmed|
|Payment Terms :||L/C, T/T, Western Union, MoneyGram||Supply Ability :||3000 MTS Per Year|
|Place of Origin:||China||Brand Name:||Zirnano|
|Commodity:||Ceramic Beads Blasting Meida||Product Name:||Ceramic Beads|
|Application:||Blasting Media||True Gravity:||3.85 G/cm3|
|Particle Range:||0-850 μm||Specification:||B20-B505|
|Vicker Hardness:||700HV||Sphericity:||≥ 80%|
low dust blasting media,
ceramic cleaning media

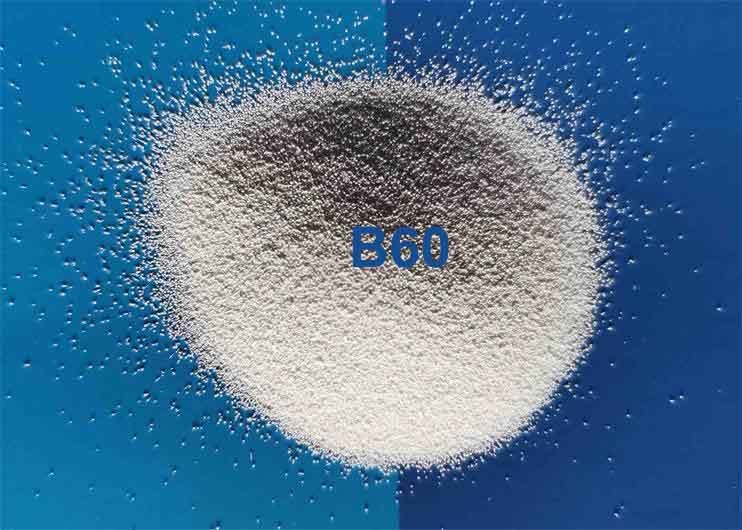

Ceramic Beads Blasting Media Zirconia Sand B60 150-300μm for Stainless Steel Surface Finish
1. Product Description of Ceramic Bead Blasting
Ceramic Beads selected the high quality zircon sand as main raw materials,then fused in electric furnace,finally
made into different sizes through special technology.
It is one clean blasting media with lower dust in the whole blasting process,it is also one more efficient abrasive ,
whose service life will be prolonged 20-30 times compared with glass beads. It is widely used in many applications
where one clean and more consistent blasting effect is required.
2. The Main Technical Data of Ceramic Bead Blasting
|Commodity||Main Chemical Index||Main Physical Index|
Ceramic Bead Blasting
|ZrO2 60-66%||Bulk Density: 2.3g/cm3|
|SiO2 25-30%||True Specific Gravity: 3.85 g/cm3|
|Al2O3 7-13%||Vickers Hardness: 700 kg /mm2|
||B20: 0.600-0.850mm||B100: 0.106-0.180mm|
|B30: 0.425-0.600mm||B120: 0.063-0.125mm|
|B40: 0.250-0.425mm||B170: 0.045-0.090mm|
|B60: 0.150-0.300mm||B205: 0.000-0.063mm|
|B80: 0.125-0.212mm||B400: 0.030-0.063mm|
|Remark: Special specification can be customized|
3. The advantages of Ceramic Bead Blasting
More Consistent Blasting Effect
Ceramic Beads has lower breakdown rate, only few beads will be broken,the non-broken ceramic beads will
maintain its original shape and properties to achieve more consistent blasting effect.
Low treatment costs for solid waste
There is little dust generated in whole blasting process, so little solid waste to be treated,finally save the production
Longer service life
Ceramic beads has fine microstructure, lower breakdown rate,it is not easy to be broken in the whole blasting
process, the non-broken one will still maintain its original shape and properties, it can be reused for many cycles.
No hidden danger of Silicosis
Ceramic beads will generate little dust in the whole blasting process,there is no hidden danger of silicosis to the
4. Main Applications of Ceramic Bead Blasting:
Surface Blasting for casting and forging parts, welded parts, heat-treated parts etc;
Surface cleaning for steel pipe,metal pipes;
Surface finish for medical instruments and golf head etc
Surface Blasting for hardwares,mechnical parts etc

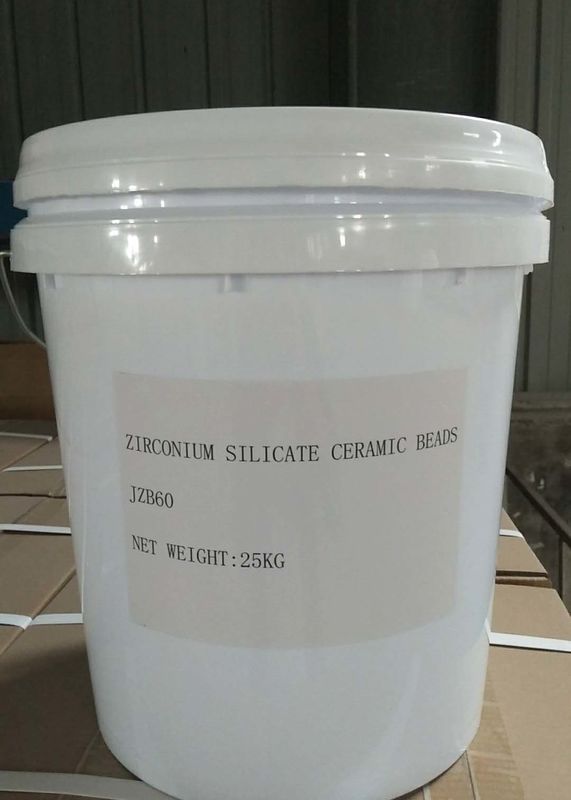

6. Package of Ceramic Beads:
25kg barrel+ pallet or 2*12.5kg barrel + Pallet
Special package can be customized.
7. Cautions for Blasting :
Ensure the sufficient ceramic beads in the blasting machine；
The workers must wear the protective equipments before work.
No less than two workers when the blasting machine is working.
Please check the gas storage tank, pressure gauge and safety valve regularly；
It is necessary to start the ventilation and dust removal equipment five minutes before working.
It is prohibited to work when the above equipment can not work properly.
Please open the air valve slowly and keep the normal pressure.
