700 HV Ceramic Bead Blasting Media B170 For Iphone Metal Surface Finish

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25 KG (12L)Barrel + Pallet; 2*12.5 KG Barrel+ Carton Box+ Pallet Delivery Time : Within 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000 MTS Per Year
Place of Origin: China Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS Model Number: B20-B505

Detail Information

Commodity: Ceramic Beads Product Name: Ceramic Beads Blasting
Application: Blasting Media Mohs Hardness: 8
Bulk Density: 2.3 G/cm3 True Gravity: 3.85g/cm3
Specification: B170 0-63μm Vicker Hardness: 700 HV
High Light:

abrasive media blasting


low dust blasting media

Product Description


Ceramic Beads Blasting Media B170, B205,B400,B505 for Iphone Metal Surface Finish

1. Product Description of Ceramic Bead Blasting Media

Ceramic beads is also called as zircon sand,it selected the high quality zirconium sand as main raw

material,then fused in electric furnace at high temperature,finally made into different mirco beads by

special technology.
2. Main Technical Data of Ceramic Bead Blasting Media


Item Ceramic Blasting Beads Particle Size
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
B20:0.600-0.850mm B120:0.063-0.125mm
B30:0.425-0.600mm B150:0.053-0.106mm
B40:0.250-0.425mm B170:0.045-0.090mm
Mohs Hardness ≥700 HV B60:0.150-0.300mm B205:0.000-0.063mm
True Specific Gravity ≥3.85 g/cm3 B80:0.125-0.212mm B400:0.030-0.063mm
Bulk Density ≥2.3g/cm3 B100:0.106-0.180mm B505:0.010-0.030mm

3.  Main Features of Ceramic Beads Blasting Media
High hardness,good elasticity and smooth surface,then ceramic beads can be rebounded in multi-angles,
especially suitable for metal surface finish;
Longer service life and lower consumption,ceramic beads has tiny microstructure,it is not easy to be broken
in the blasting process,service life can be prolonged 25-30 times than the one of glass beads in wet blasting.
Lower breakdown rate
People do not need to refuel the ceramic beads frequently,the quantity and the shape of ceramic beads
almost keep the same in the blasting process, which will achieve more consistent and nice shiny smooth
blasting effect than the one of glass beads.
Solid round shape and white color
There is little damage and no ferrous contamination to the treatment surface due to its solid round shape
and white color.
Little dust generation
Ceramic Beads will generate little dust in blasting process,which will provide better blasting visual and no
hidden danger of silicosis.
4. Main Applications of Ceramic Beads Blasting

In Blasting Applications:

Surface Finish in Aerospace industry such as the structural materials of aluminum alloy, titanium alloy,

aluminum alloy, high temperature alloy etc.

Anti-fatigue treatment and strengthening treatment on the surface of turbine blades and suspension

spring in turbine industry and automotive industry

Metal surface finish for mechanical parts, cylinder heads, surgical instruments, prosthetics, golf heads,

artificial joints, springs, gears, glasses frame etc.

Deburring forcircuit board , plastic parts at low temperature in plastic and electronics industries:

Mould cleaning and maintenance in mould industry such as glass moulds, tire manufacturing.

700 HV Ceramic Bead Blasting Media B170 For Iphone Metal Surface Finish 0

In Shot Peening Applications:

Shot peening in aviation and automotive industries;

Shot peening in nuclear and chemical equipments.

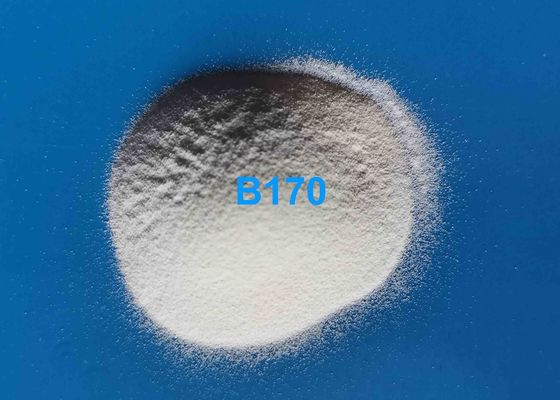

700 HV Ceramic Bead Blasting Media B170 For Iphone Metal Surface Finish 1
5. Precautions When Using Ceramic Beads for the first time

Please kindly open 1/3 to 1/2 vest of dust collector when using ceramic bead for the first time,because ceramic

beads need the wind to be recycled. This is different from glass beads, when using galss beads,the vest of dust

collector is sealed completely.
6. Which kind of material are suitable for being treated by ceramic beads?

Stainless steel parts;

Aluminum and aluminum alloy parts:

Copper partsMagnesium alloy parts;

Titanium alloy parts;

Plastic parts etc.
