• High Toughness Ceramic Shot Peening Z100-Z850 For Aviation / Automotive Industry
  • High Toughness Ceramic Shot Peening Z100-Z850 For Aviation / Automotive Industry
High Toughness Ceramic Shot Peening Z100-Z850 For Aviation / Automotive Industry

High Toughness Ceramic Shot Peening Z100-Z850 For Aviation / Automotive Industry

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001,ROHS,SGS
Model Number: Z100-Z850

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 25 KG (12L)Barrel + Pallet; 2*12.5 KG Barrel+ Carton Box+ Pallet
Delivery Time: Within 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 MTS Per Year
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Shot Peening Product Name: Ceramic Bead Blasting Media
Application: Shot Peening Or Blasting Media Mohs Hardness: 8 Mohs
Bulk Density: 2.3 G/cm3 True Gravity: 3.85 G/cm3
Color: White Wear Rate: 0.5-1.0kg/h
High Light:

shot blasting material


shot blasting abrasive


abrasive shot blasting

Product Description

High Toughness Ceramic Shot Peening Z100-Z850 in Aviation and Automotive Industry

1. Description of Ceramic Shot Peening

Ceramic beads is also called as zirconia sand,it selects the high grade zircon sand as main raw materials

then fused in an electric furnace,finally made into different micro sizes through the special technologies.


Its unique chemical composition and microstructure ensures its high hardness,good elasticity and good

impact strength,it is one ideal media in shot peening and blasting applications.


Since ceramic beads has wide particle range,it is able to meet all the blasting equipment.


2. Mian Technical Data of Ceramic Shot Peening

Commodity Process Chemical Index Physical Index

Ceramic Shot Peening

Ceramic Beads

Melting ZrO2 60-66% Bulk density:2.3g/cm3
SiO2 25-30% True Gravity ≥3.85 g/cm3
Al2O3 7-13% Vicker Hardness≥700 HV
Particle Size
For Blasting Media
B20:0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Particle Size
For Shot Peening
Z100: 100-150μm Z425:425-600μm

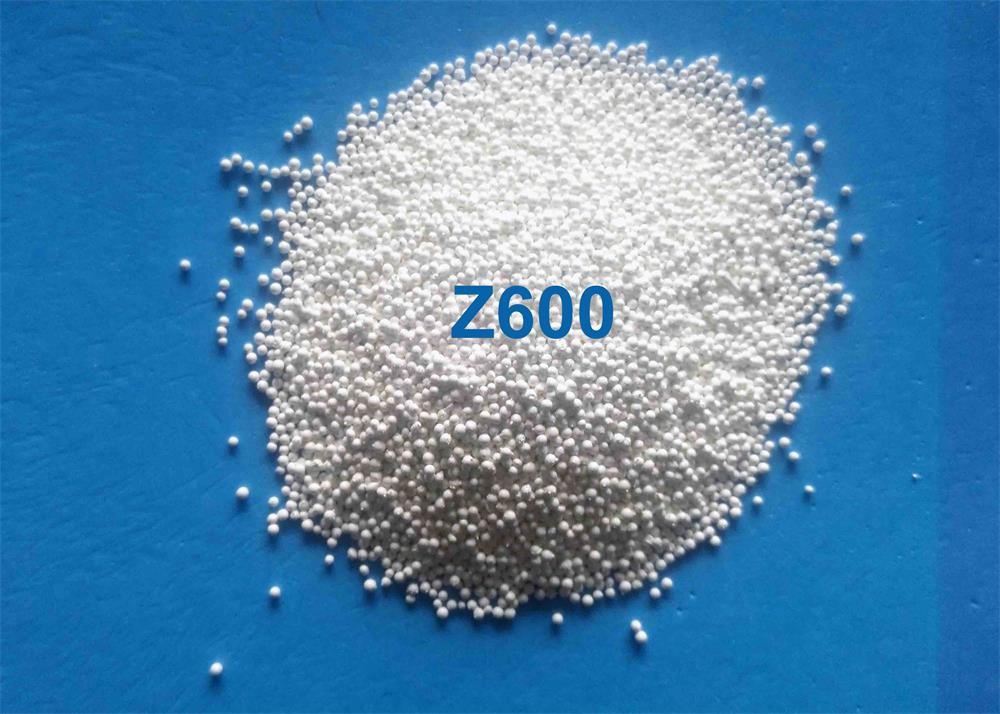

Z150: 150-210μm Z600: 600-850μm
Z210: 210-300μm Z850: 850-1180μm

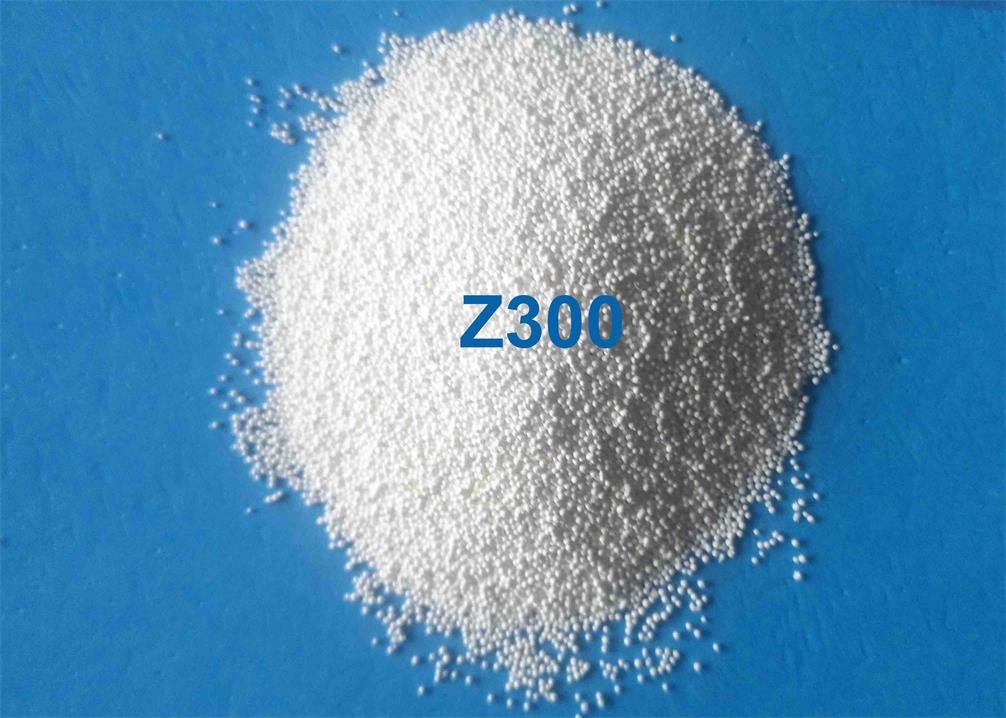

Z300: 300-425μm /
Remark: Special specification can be customized


3. Which kind of material are suitable for being treated by Ceramic Beads?

  • Stainless steel parts
  • Aluminum and aluminum alloy parts:
  • Copper partsMagnesium alloy parts
  • Titanium alloy parts
  • Plastic parts etc...

4. The comparation between ceramic beads and glass beads in consumption and dust generation

Ceramic sand has low break down rate, there is little dust generated in blasting or peening process,the

non-break down beads will still maintain its original size and hardness as well as smoothness,it will achieve

more consistent blasting or peening effect.


The glass beads is easy to be broken down and generate a lot of dust and adhere to the surface of other

glass beads.generally speaking, the glass beads will be pulverized into dust after ten cycles, and adhere

to the surface of other glass beads, it will damage the workpieces and equipments. The consumption of glass

beads is at least 20 times of ceramic beads.


5. Why Choose us?

Professional Manufacturer of ceramic beads,annual output over 3000mts;

Equipped the most advanced production line,testing equipment, as well as professional technical staffs and

7*24h technical support;

Strict quality control and quality assurance, products will be inspected by each shipment,even for the free

sample in small quantity;

Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;

Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc

Products in good quality & stable performance,competitive price,flexible payment terms,prompt delivery etc.
