• High Cleanliness Abrasive Shot Blasting
  • High Cleanliness Abrasive Shot Blasting
High Cleanliness Abrasive Shot Blasting

High Cleanliness Abrasive Shot Blasting

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20,B30,B40,B60,B80,B100,B120,B150,B170,B205,B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Zirconia Sand Usage: Shot Peening Media For Automotive Industry
Bulk Density: 2.3g/cm3 True Gravity: ≥3.85g/cm3
Shape: Spherical ZRO2: 60-66%
High Light:

shot blasting material

,

shot blasting abrasive

Product Description

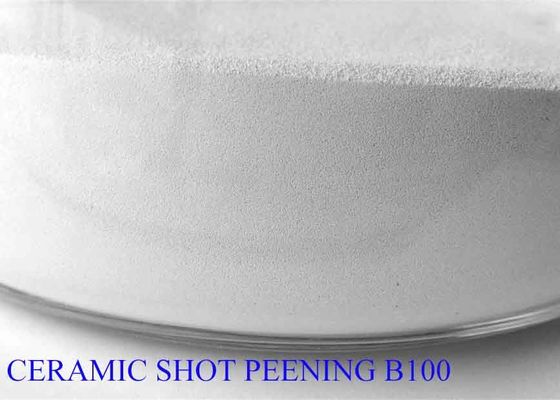

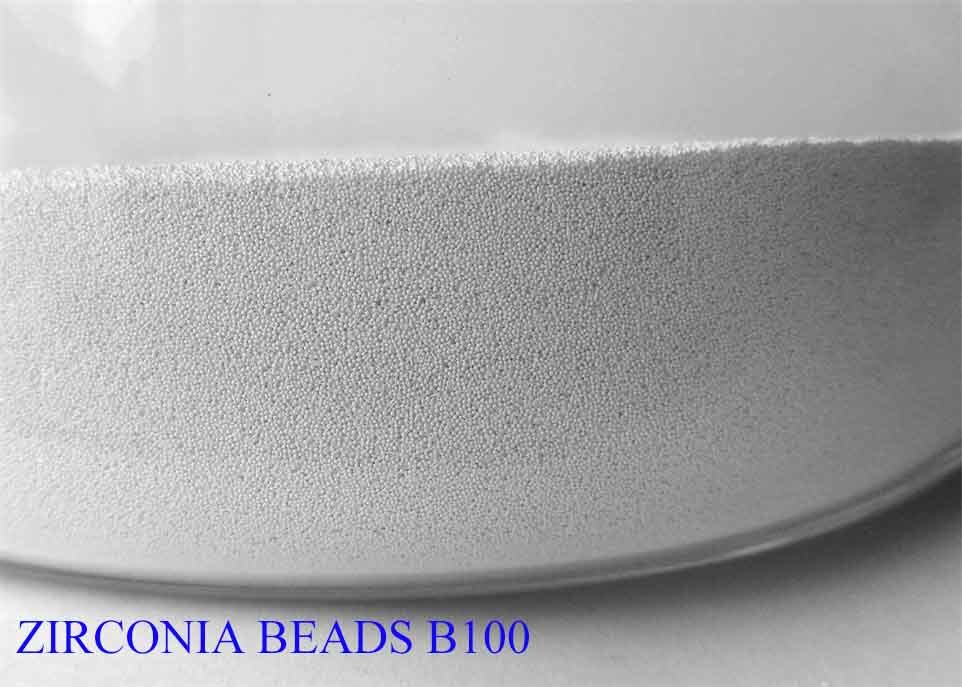

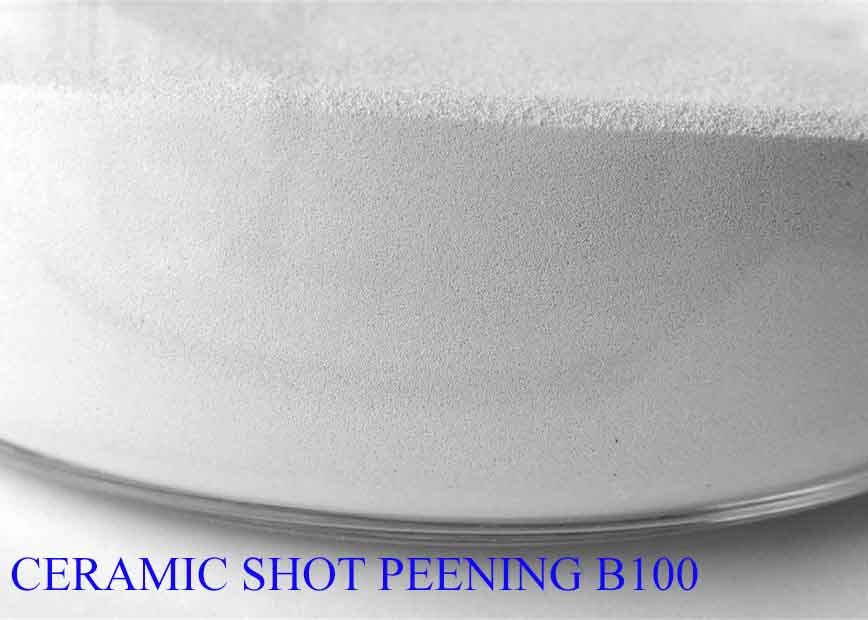

High Cleanlines Ceramic Shot Peening Zirconia Sand B100 for Automotive Industry

1. Product Description

The Ceramic Shot Peening Zirconia Sand is fused  by zirconium sand in electro furnace under high temperature over 2000 degrees,made into different beads through selecting, inspeting,packing etc,

its characteristics of high hardness and low breakdown rate makes it to be widely used as shot

peening media.
2. Main Technical Index of Ceramic Shot Peening Zirconia Sand

Commodity Main Chemical Index Main Physical Index



Ceramic Shot Peening

Zirconia Sand

(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13%

Vickers Hardness: 700 kg /mm2



Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized



3. Why Zirconia Sand is suitable for shot peening beads?

Due to the special chemical composition and physical property ,Zirconia Sand has lower breakdown

rate when as shot peening beads,that means the beads in balsting equipment is more stable and

consistency ,people do not need to refuel new beads in to the equipment frequently ,then it  will

achieve more consistent surface finish effect during the long working time compared with the

glass beads, it will also impact a layerof residual compressive stress onto the treatment surface

to avoid the formation of fatigue cracks occurred on the surface,then finally prolong the treatment

service life.



Also due to the high hardness and lower breakdown rate,ceramic beads has long service life which is

20-30 times compared with the one of glass beads when treating the same parts. Although its initial

price is expensive than the one of glass beads,while seen from the  long time operation, the overall

cost is cheaper.



There is also no dust and  hidden danger of silicosis to the worker's health,it is one environmental

friendly peening beads compared with the traditional glass beads.


4. Main Application of Ceramic Shot Peening Zirconia Sand(Just name few applications)

Shot peening for aircraft and shipbuilding industry such as springs,gears,wheelturbine etc

High Cleanliness Abrasive Shot Blasting 0

Shot peening for automotive compentents such as gearbox, aluminium hubs etc to extend its

anti-fatigue life

High Cleanliness Abrasive Shot Blasting 1

Shot peening for vairous molds such as galss molds, tie molds,dies to clean the oil stains, rust etc.

High Cleanliness Abrasive Shot Blasting 2

5. Applicable Equipment:

Manual Sandblasting machine:

High Cleanliness Abrasive Shot Blasting 3

Automatic Blasting Machine:

High Cleanliness Abrasive Shot Blasting 4

Open Blasting Machine:

High Cleanliness Abrasive Shot Blasting 5

Sandblasting Room

High Cleanliness Abrasive Shot Blasting 6

6. Product Package:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
High Cleanliness Abrasive Shot Blasting 7High Cleanliness Abrasive Shot Blasting 8

6.Plant Photo
High Cleanliness Abrasive Shot Blasting 9
