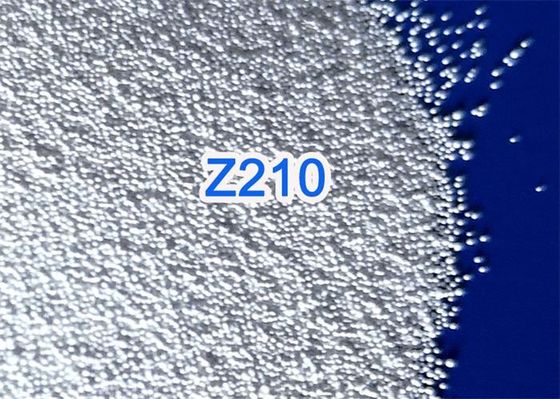

2.3g/cm3 Bulk Density Shot Blasting Beads Z210 Ceramic Beads Blasting Media
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | Z850, Z600, Z425, Z300, Z210, Z150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g/cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | shot blasting material,shot blasting abrasive,abrasive shot blasting |
||
Product Description
Shot Peening Ceramic Media Z210 using in automotive and aerospace industry
Ceramic beads shot peening media is made from imported zirconia sand by electric fusion method.
It’s one of the most popular medias in shot peening using in automotive and aerospace industry.
Shot peening by ceramic beads can improve the bending fatigue strength and contact fatigue
strength of the gear teeth, which is an important way to improve the anti-seizure ability of the
gear and improve the life of the gear;
And also can improve the stress corrosion and hydrogen embrittlement fracture of fasteners against
fatigue fracture. After the ceramic beads shot peening, the reliability and durability of the workpiece can
be obviously improved and improved;
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
| Bead Size (mm) | Bead Size (mm) | ||
| Z150 | 0.15-0.21 | Z425 | 0.425-0.6 |
| Z210 | 0.21-0.30 | Z600 | 0.6-0.85 |
| Z300 | 0.30-0.425 | Z850 | 0.85-1.18 |
Special sizes available against clients’ requirement.
- High hardness, good elasticity and long service life
- Smooth surface finish that minimizes crack initiation
- Very low material abrasion that maintains accuracy of fine geometries
- High rebound that allows homogeneous coverage of intricate geometries
- No need for decontamination post-treatments for non-ferrous alloys
- High in price but low in cost. Can be recycling use and cost savings on the downstream processes (coating, polishing)
Fields: Shot peening of aluminum alloy rims, automobile springs, gearbox gears, engine crankshafts, etc. in the automotive industry, shot peening of aircraft blades, gears, turbine disks, landing gear support beams, wings, etc. in the aerospace industry
Parameters affecting shot quality:
1. Shot peening strength
The process parameters that affect the shot peening strength are: projectile diameter, blast flow velocity, projectile flow rate, shot peening time, etc.
2. Coverage
Factors affecting coverage: hardness of part materials, projectile diameter, spray angle and speed, shot peening time, etc.
3. Surface roughness
Factors affecting the roughness: strength and hardness of the part material, projectile diameter, spray angle and speed, original surface roughness of the part
We have all sizes ceramic beads from Z100 to Z850.
If you need any, just contact us for high quality ceramic beads.
The process parameters that affect the shot peening strength are: projectile diameter, blast flow velocity, projectile flow rate, shot peening time, etc.
Coverage
Free Samples -1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
Quality Guarantee
Guarantee our ceramic beads has no quality problems, and in case any problems are found,
We accept return and/or exchange.
