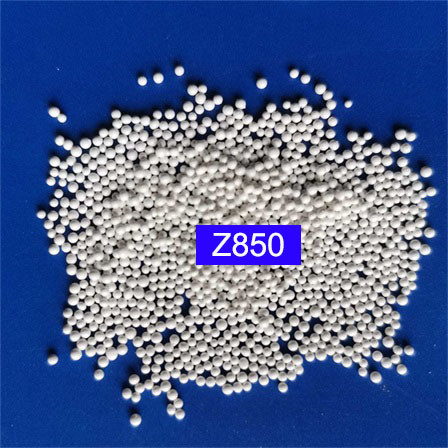

Non Ferrous AMS Ceramic Shot Peening Media Z850 Z600 Z425 For Engines And Wheel Hub

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25KG Barrel + Pallet,2*12.5KG Barrel + Pallet Delivery Time : 3-5 Days after order Confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 3000mt per Year
Place of Origin: China Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: Z100-Z850

Detail Information

Commodity: Ceramic Shot Peening Product Name: Ceramic Shot
Usage: Shot Peening True Gravity: 3.85 G/cm3
Vicker Hardness: 700HV Bulk Density: 2.3 G/cm3
Shape: Solid Round Beads Size: Z100-Z850
High Light:

Ceramic Shot Peening Media


AMS Ceramic Shot Peening


Z850 Ceramic Shot Peening

Product Description

1. Product of Description of Ceramic Beads


Ceramic shot peening is one ideal shot peening material, it has the characteristics of high strength,

high hardness and zero pollution, widely used in the shot peening industry.


Ceramic shot peening selects the high-quality imported zircon sand as main raw material, then fused

in an electric arc furnace under high temperature over 2500 degrees, then made into different size

according ti AMS standard.


Although Ceramic shot peening and ceramic beads blasting media have the same chemical structure,

their different size distribution determines their different applications: Ceramic Shot Peening has narrow

and concentrated particle size distribution,used for shot peening purpose; ceramic beads blasting media

has wide size,which can match almost blasting machine,widely used in blasting purpose.


2. Main Technical Data


Ceramic Shot Peening
ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
Vickers Hardness ≥700 HV
Bulk Density≥2.3g/cm3
True Gravity: 3.85g/cm3
Process: Melting
Particle Size for Ceramic Shot Peening
Z100: 100-150μm Z150: 150-210μm
Z210: 210-300μm Z300: 300-425μm
Z425:425-600μm Z600: 600-850μm
Z850: 850-1180μm ./
Remark: Special specification can be customized.



3. Main Features of Ceramic Shot Peening


Ceramic sand has high strength and compact structure, with good wear resistance and impact resistance.


Ceramic beads has medium density compared with steel shot and glass shot. It can be used to shot-peening

both the low-strength structural parts and high-strength structural parts, especially will achieve outstanding

effect for for parts of aluminum alloy and titanium alloy.


Ceramic shot peening has high hardness and small deformation, which can not only improve the production

efficiency,but also improve the final shot peening effect;


Ceramic shot peening has lower break-down rate,which will provide one clean working condition,also reduce

the treatment cost of solid waste.


Ceramic shot peening has good chemical inertness,no contamination to the treatments.


4. Main Applications of Ceramic Shot Peening


Shot peening in the manufacture of key load-bearing components of aircraft, engines and aerospace to

improve their fatigue life and surface strength.

Non Ferrous AMS Ceramic Shot Peening Media Z850 Z600 Z425 For Engines And Wheel Hub 0

5. Why choose us?


Professional manufacturer of ceramic shot peening and ceramic beads blasting media;


Strict quality control system,all the cargo can be traced in each step;


All the beads will be tested twice before delivery even for one small sample;


Stable supplier of Foxconn,Samsung Electronics...


Quick response,fast shipment,flexible delivery,competitive price.
