Non Ferrous AMS Ceramic Shot Peening Media Z850 Z600 Z425 For Engines And Wheel Hub
Contact Person : Caroline Cui
Phone Number : 0086-15003865330
WhatsApp : +008615003865330，008613598099524,008615003835681
|Minimum Order Quantity :||100KGS||Price :||Negotiable|
|Packaging Details :||25 KG (12L)Barrel + Pallet; 2*12.5 KG Barrel+ Carton Box+ Pallet||Delivery Time :||Within 3-5 days after order confirmed|
|Payment Terms :||L/C, T/T, Western Union, MoneyGram||Supply Ability :||3000 MTS Per Year|
|Place of Origin:||China||Brand Name:||Zirnano|
|Vicker Hardness:||700 HV||Application:||Shot Peening|
|Commodity:||Ceramic Beads||Product Name:||Ceramic Shot Peening|
|Mohs Hardness:||8||Bulk Density:||2.3 G/cm3|
|True Gravity:||3.85g/cm3||Specification:||Z300 300-425μm|
shot blasting material,
shot blasting abrasive,
abrasive shot blasting

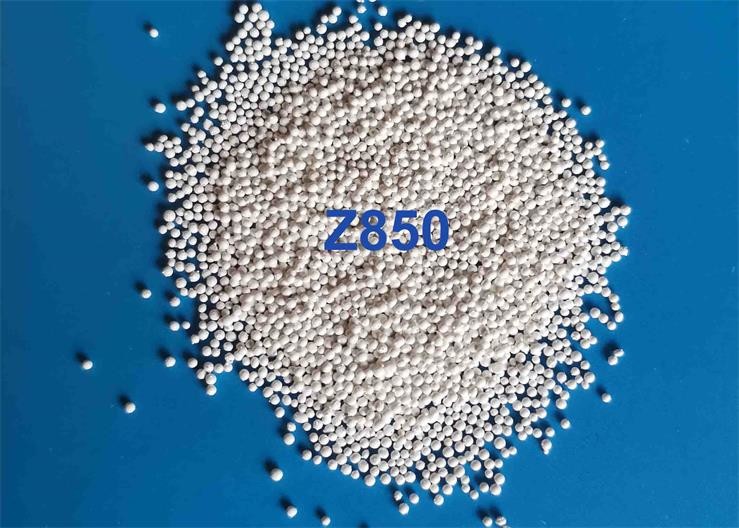

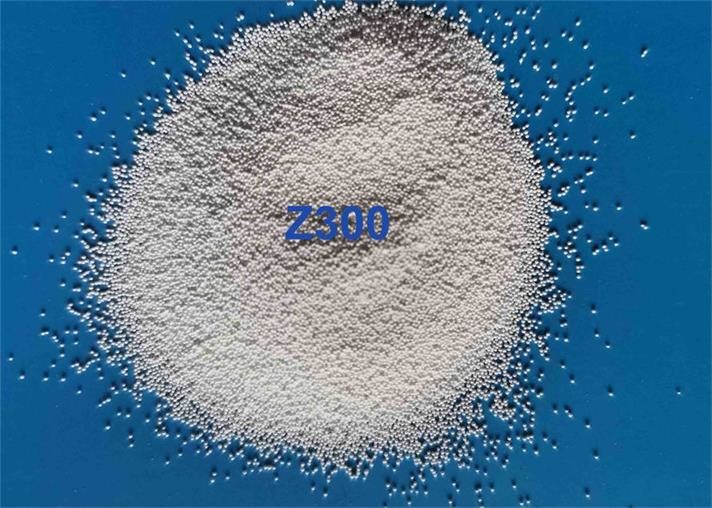

Good Impact Resistance Ceramic Shot Peening Z850,Z600,Z425,Z300,Z210,Z150,Z100
1. Product Description of Ceramic Shot Peening
If you are looking for one Shot Peening,which has long service life,low break down rate and no color or
ferrous contamination to the surface treatment,ceramic shot peening is the right one you need.
Ceramic shot peening contains 62-66% ZrO2,it selected the imported zircon sand as raw Material,then
fused in one electric furnace under high temperature over 2000 degree,finally made into different solid
beads by screening,magnetic separation,inspecting,packing process.
2. Main Technical Data of Ceramic Shot Peening
|Commodity||Main Chemical Index||Main Physical Index|
Ceramic Shot Peening
|ZrO2 60-66%||Bulk Density: 2.3g/cm3|
|SiO2 25-30%||True Specific Gravity: 3.85 g/cm3|
|Al2O3 7-13%||Vickers Hardness: 700 kg /mm2|
|Particle Size||Z100: 100-150μm||Z150: 150-210μm|
|Z210: 210-300μm||Z300: 300-425μm|
|Remark: Special specification can be customized|
3. Why Ceramic Beads is widely used as shot peening media?
Good sphericity, smooth surface, providing the minimal crack initiation.
Good elasticity,high hardness,it will be rebunded in multi-angles in the peening process,it is able to cover
the intricate geometries homogeneously,finally achieving the consistent visual effect;
Ceramic beads has zero ferrous contaminations to the treatment;
Ceramic beads has high hardness and good impact resistance,when sprayed on the metal surface in high
speed,the impacted surface and the underlying metal material are plastically deformed and extended,finally
extend the fatigue life and corrosion resistance.
Therefore ceramic beads is widely used as one shot peening media.
4. Main Application of Ceramic Shot Peening:
Shot peening for metal parts in aerospace industry to improve the surface strength,eliminate the stress,
reduce the metal weights;
Shot peening in automotive industry such as gearbox gears,automotive aluminum hubs etc. to extend the
5. Why Choose Us?
Professional Manufacturer of ceramic beads,annual output over 3000mts
Equipped the most advanced production line,testing equipment, as well as professional technical staffs and
7*24h technical support;
Strict quality control and quality assurance, products will be inspected by each
Shipment,even for the free sample in small quantity;
Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;
Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc
Products in good quality & stable performance,competitive price,flexible payment terms,prompt delivery etc.
