Ceramic Blasting Beads B120 Multi Sizes Lead Different Roughness
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet |
| Delivery Time: | 3-5 days after order confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200mts per month |
|
Detail Information |
|||
| Commodity: | Ceramic Blasting Beads | Product Name: | Ceramic Blasting Media |
|---|---|---|---|
| Usage: | Surface Finish For 3C Products | Bulk Density: | 2.3 G/cm3 |
| True Gravity: | 3.85 G/cm3 | Vicker Hardness: | 700 HV |
| Main Material: | 62-66% ZrO2 | Shape: | Solid Round Ball |
| High Light: | low dust blasting media,ceramic cleaning media |
||
Product Description

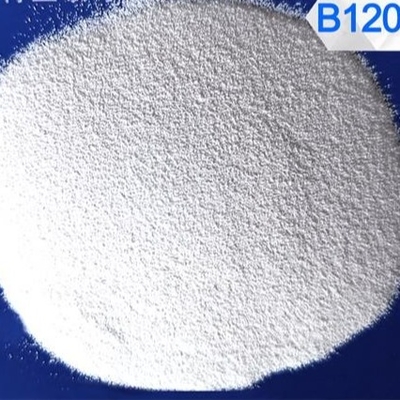

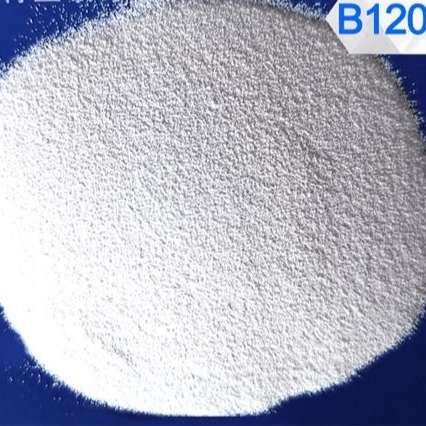

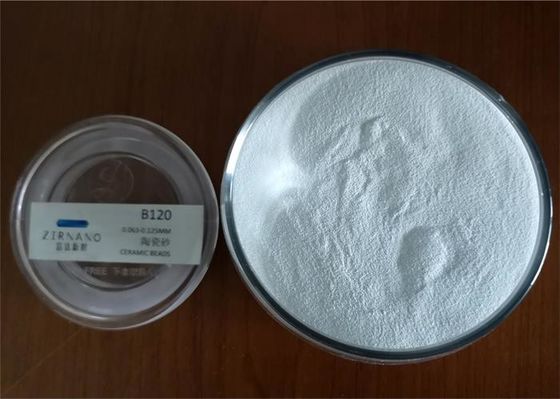

Ceramic Beads B120 blasting media multi sizes leading different roughness
DESCRIPTION OF CERAMIC BEADS
Ceramic beads is one of popular sand blasting media for metal surface treatment, and the sandblasting is
the more thorough, more versatile, faster, and more efficient cleaning and surface treatment method.
Using ceramic beads as the blasting meida, is arbitrarily chosen between different roughnesses, and other
processes have no way to achieve this.
| Technical Data | |||
| Components | Content | CAS No. | EC No. |
| ZrO2 (Zirconium dioxide) | 60-68% | 1314-23-4 | 215-227-2 |
| SiO2 (Silicon dioxide) | 25-30 | 60676-86-0 | 262-373-8 |
| Al2O3 (Aluminum oxide ) | 7-13% | 1344-28-1 | 215-691-6 |
| Manufacturing Method | Melting in above 2000℃ furnace | ||
| True Density | 3.85 g/cm3 | ||
| Bulk Density | 2.3g/cm3 | ||
| Vicker Hardness | 700HV | ||
| Sizes for Sand Blasting | |||
| Bead Size | Size range | Bead Size | Size range |
| B20 | 0.60-0.85 mm | B120 | 0.063-0.125 mm |
| B30 | 0.425-0.60 mm | B125 | 0.000-0.125 mm |
| B40 | 0.24-0.425 mm | B170 | 0.045-0.090 mm |
| B60 | 0.125-0.25 mm | B205 | 0.000-0.063 mm |
| B80 | 0.18-0.25 mm | B400 | 0.030-0.063 mm |
| B100 | 0.125-0.18 mm | B505 | 0.000-0.030 mm |
| Sizes for Shot Peening | |||
| Z850 | 0.85-1.18 mm | Z210 | 0.21-0.30 mm |
| Z600 | 0.6-0.85 mm | Z150 | 0.15-0.21 mm |
| Z425 | 0.425-0.60 mm | Z100 | 0.10-0.15 mm |
| Z300 | 0.30-0.425 mm | ||
FEATURES OF CERAMIC BEADS
Characteristics of metal surface blasting process with Ceramic beads:
1. To sandblast with ceramic beads as media, the flexibility of cleaning is large. It is easy to clean the inner and outer surfaces of the complex workpiece and the inner wall of the pipe; and it is not restricted by the site, it can be moved to the vicinity of the extra large workpiece for cleaning.
2. Ceramic beads blasting consumes smaller energy comparing with steel balls.
3. The ceramic bead blasting equipment structure is simple, the investment of the whole machine is less, the wearing parts are less, and the maintenance cost is low.
4. Metal surface blasting process with ceramic beads media has high cleaning efficiency.
5. Other wet clean ways is easy to have moisture, easy to embroider.
APPLICATION OF CERAMIC BEADS
- 3C industry sandblasting: Computer shell, mobile phone middle frame, built-in parts and USB Data cable plug blasting surface treatment.
- Glass bottle & Tires Molds cleaning sandblasting
- Shot peening in automotive and aerospace industry.
- Metal work pieces surface treatment blasting finish, like Hard wares parts, Pots, medical instrument, golf club, etc
CONTACT US
If you need ceramic beads sandblasting media or shot peening media, please don't hesitate to contact us.
Every inquiry will be responsed fastly.
