B20-B505 Ceramic Beads  Blasting Media for metal surface treatment

B20-B505 Ceramic Beads Blasting Media for metal surface treatment

Product Details:

Place of Origin: China
Brand Name: ZIRNANO
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiable
Packaging Details: 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200mts per month
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Blasting Beads Product Name: Ceramic Blasting Media
Usage: Surface Finish For 3C Products Bulk Density: 2.3 G/cm3
True Gravity: 3.85 G/cm3 Vicker Hardness: 700 HV
Main Material: 62-66% ZrO2 Shape: Solid Round Ball
High Light:

abrasive media blasting

,

low dust blasting media

Product Description

B20-B505 Ceramic Beads Blasting Media for metal surface treatment

DESCRIPTION
Ceramic beads blasting media is mainly for metal sandblasting surface treatment, like  metal substrate surface roughening, cleaning or finishing by using sandblasting machine.
It is no dust and environmentally friendly.
Widely used to replace glass beads or steel shot beads.


TitleZrO2 62%-66% Ceramic  Blasting Beads

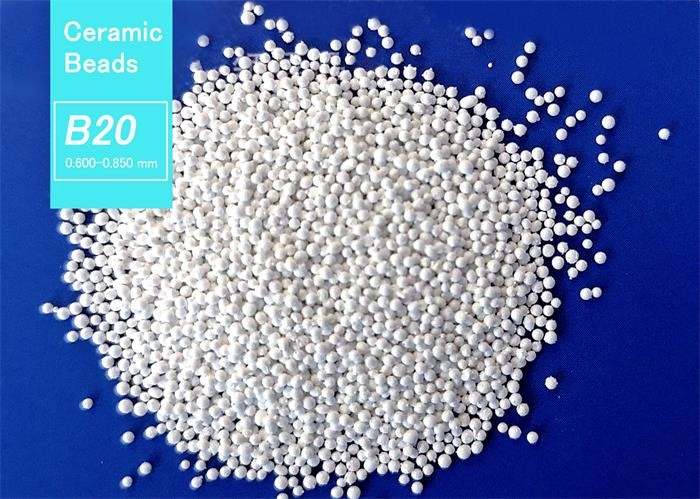

B20, B30, B40, B60, B80, B100, B120, B170, B205, B400, B505
Product NameCeramic Beads Blasting Media/ Ceramic Media Shot Peening
Technical Data
ComponentsContentCAS No.EC No.
ZrO2 (Zirconium dioxide)60-68%1314-23-4215-227-2
SiO2 (Silicon dioxide)25-3060676-86-0262-373-8
Al2O3 (Aluminum oxide )7-13%1344-28-1215-691-6
Manufacturing MethodMelting in above 2000℃ furnace
True Density3.85 g/cm3
Bulk Density2.3g/cm3
Vicker Hardness700HV
Sizes for Sand Blasting
Bead SizeSize rangeBead SizeSize range
B200.60-0.85 mmB1200.063-0.125 mm
B300.425-0.60 mmB1250.000-0.125 mm
B400.24-0.425 mmB1700.045-0.090 mm
B600.125-0.25 mmB2050.000-0.063 mm
B800.18-0.25 mmB4000.030-0.063 mm
B1000.125-0.18 mmB5050.000-0.030 mm
Sizes for Shot Peening
Z8500.85-1.18 mmZ2100.21-0.30 mm
Z6000.6-0.85 mmZ1500.15-0.21 mm
Z4250.425-0.60 mmZ1000.10-0.15 mm
Z3000.30-0.425 mm
Application in Sand Blasting
1) 3C products - Sandblasting Finishing
Alloy shell, middle frame and built-in parts of computers, mobile phones, cameras, etc
Clean burrs to form film-light decorative or fine reflective surface, on alloy workpiece such as mobile
phone to achieve different reflection or matte.
2) Kitchen Industry-Sandblasting finishing
Stainless steel cutlery and kitchen utensils sandblasting finishing
3) Golf club - Sandblasting finishing
Golf club & ball head alloy surface treatment Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Clean all the dirt on the surface of the alloy workpiece, micro burrs, improve the flatness and
smoothness of the workpiece, and expose to uniform metallic color, achieving smooth and
non-reflective requirements on surface
5) Pipeline - Sandblast Cleaning
Metal pipes such as copper pipes, steel pipes are cleaned and polished on the inner and outer walls.
6) Molds - Sandblast cleaning
Cleaning of molds of glass bottles, tires, etc., rust, dirt and impurities.
7) Electroplating, painting, anode-Surface Pretreatment
Electroplating, painting, anode, Teflon, rubber, plastic, traversing, metal, spray welding, gold plating,
titanium plating, etc., to remove dirt and increase product surface adhesion.
8) Hardware parts - Sandblasting to improve lubrication conditions
It can produce uniform and fine uneven surface on the surface of the part, so that the lubricating oil can
be stored, improve the lubrication condition and reduce the noise.
Application in Shot Peening
1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine
blades, aircraft wing etc..
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine
crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the
visual effect and texture, and also shot peening reinforcement to improve its worklife.


Applicable materials:

Stainless steel, aluminum, copper, aluminum alloy, magnesium alloy, titanium alloy and other metal work pieces.


FEATURES
1. High hardness and small deformation.
Ceramic beads hardness over 700 HV and with high impact strength.
The small deformation ensures that the shape of the ceramic beads particles do not change during sandblasting, ensuring the consistency of the sandblasting effect.

2. Compared with glass beads, ceramic beads has better finish effect.
Ceramic beads can be recycled many times, and its life is about 30 times that of glass beads.
The hardness of glass beads is only 47HRC. Compared with ceramic beads 60HRC, it has poor wear resistance and is easy to be broken. It produces a lot of free dust, harmful to workers' health and increases the cost of solid waste treatment.
The ceramic beads surface is smooth and elastic, and the small crystal sizes provides a high modulus of elasticity: 330 GPa. During the sandblasting process, the beads particles rebound from multiple angles, not easily broken, and can be recycled many times. The service life is about 30 times that of glass beads.
