Zirconia Beads Ceramic Shot Peening Spherical Shape High Precision ISO9001
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | Z100-Z850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25KG Barrel + Pallet,2*12.5KG Barrel + Pallet |
| Delivery Time: | 3-5 Days after order Confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000mt per Year |
|
Detail Information |
|||
| Product Name: | Zirconia Beads | Commodity: | Ceramic Shot Peening |
|---|---|---|---|
| Usage: | Shot Peening | Shape: | Spherical |
| True Gravity: | 3.85 G/cm3 | Vicker Hardness: | 700HV |
| Main Chemical: | 60-66% ZrO2 | Breakdown Rate: | 1.2% |
| High Light: | shot blasting material,shot blasting abrasive,abrasive shot blasting |
||
Product Description

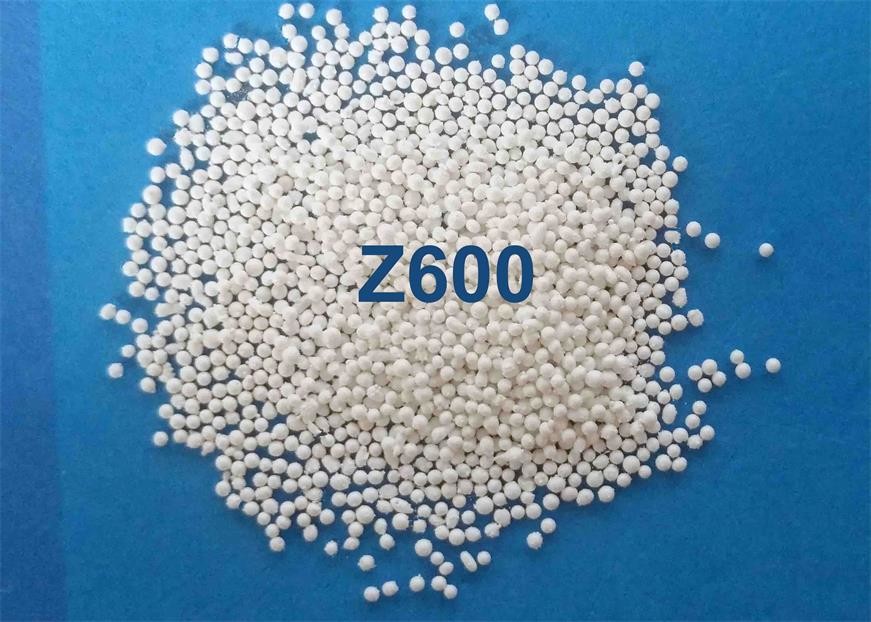

Ceramic Shot Peening Zirconia Beads Z850,Z600,Z425,Z300 for Steel Forgings
1. Product Description of Ceramic Shot Peening
Ceramic Shot Peening selects the imported zirconium sand as raw material,fused in electric furnace under
high temperature,then made into different solid beads through special technologies and processes.
Ceramic shot peening is widely used for metal surface to improve the wear properties.
2. Main Technical Data of Ceramic Shot Peening
| Commodity | Main Chemical Index | Main Physical Index |
| Ceramic Shot Peening | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size | |
| Z100: 100-150μm | Z150: 150-210μm |
| Z210: 210-300μm | Z300: 300-425μm |
| Z425:425-600μm | Z600: 600-850μm |
| Z850: 850-1180μm | |
| Remark: Special specification can be customized | |
3. Main Features of Ceramic Shot Peening
- Wide Particle Size Distribution to meet the different peening effect;
- Smooth surface and good elasticity to provide the minimal crack initiation and more consistent visual effect;
- Little dust generation to provide better peening sight;
- No color and ferrous contamination to the treatment surface;
- Low abrasion rate to save the refuel time and work in high efficiency;
4. Main Applications of Ceramic Shot Peening:
- Shot peening in golf club, medical component manufacturing as well as pharmaceutical production.
- Shot Peening in automotive and avaition industries
- Shot peening for aluminum,stell,steel forgings etc.
5. Why Choose Zirnano Ceramic Shot Peening?
- Higher clearliness
Our ceramic bead are screened more than six times and blow-cleaning under high temperature,which provides
higher clearliness and ensures it to be work normally in humid weather;
- Competitive Price
Our plant located in mountain areas,having lower cost of environmental protection and product,woker’s salary ,
then the price is more competitive.
