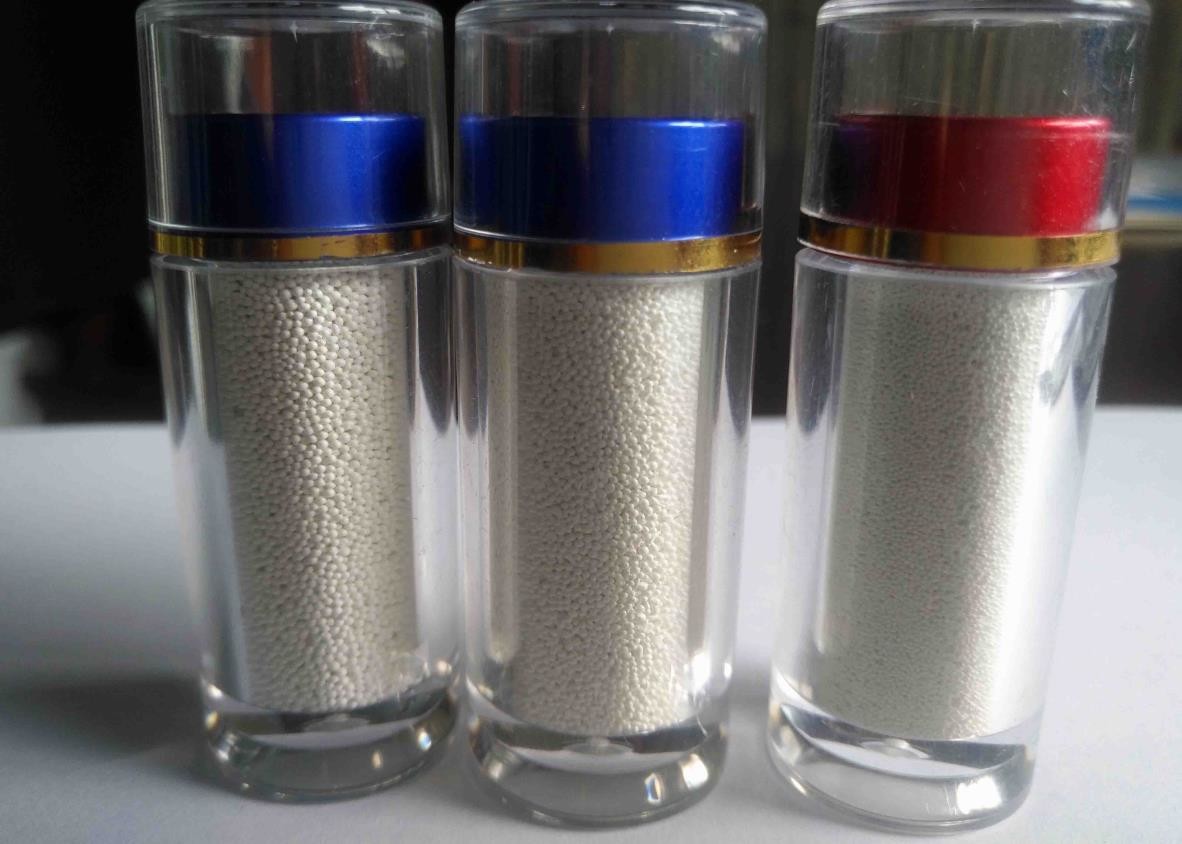

60 - 66% ZrO2 Ceramic Beads Z600 - Z850 For Aviation / Automotive Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | ZIRNANO |
| Certification: | ISO9001,ISO14001 |
| Model Number: | Z100-Z850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25KG Barrel + Pallet,2*12.5KG Barrel + Pallet |
| Delivery Time: | 3-5 Days after order Confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000mt per Year |
|
Detail Information |
|||
| Commodity: | Ceramic Shot Peening | Product Name: | Ceramic Beads |
|---|---|---|---|
| Usage: | Shot Peening | Color: | White |
| Shape: | Spherical | True Gravity: | 3.85 G/cm3 |
| Vicker Hardness: | 700HV | Main Chemical: | 60-66% ZrO2 |
| High Light: | shot blasting material,shot blasting abrasive,abrasive shot blasting |
||
Product Description
60-66% ZrO2 Ceramic Shot Peening Z600-Z850 Ceramic Beads for Aviation & Automotive Industry
1. Product Description of Ceramic Shot Peening Ceramic Beads
Ceramic beads is produced by electro fusion of oxides,it has fine and homogeneous microstructure.
It is widely used as one shot peening media in high performance applications such as aviation and
automotive industry.
2. Main Technical Data of Ceramic Shot Peening
| Commodity | Main Chemical Index | Main Physical Index |
| Ceramic Shot Peening | ZrO2 60-66% | Bulk Density: 2.3g/cm3 |
| SiO2 25-30% | True Specific Gravity: 3.85 g/cm3 | |
| Al2O3 7-13% | Vickers Hardness: 700 kg /mm2 |
| Particle Size | |||

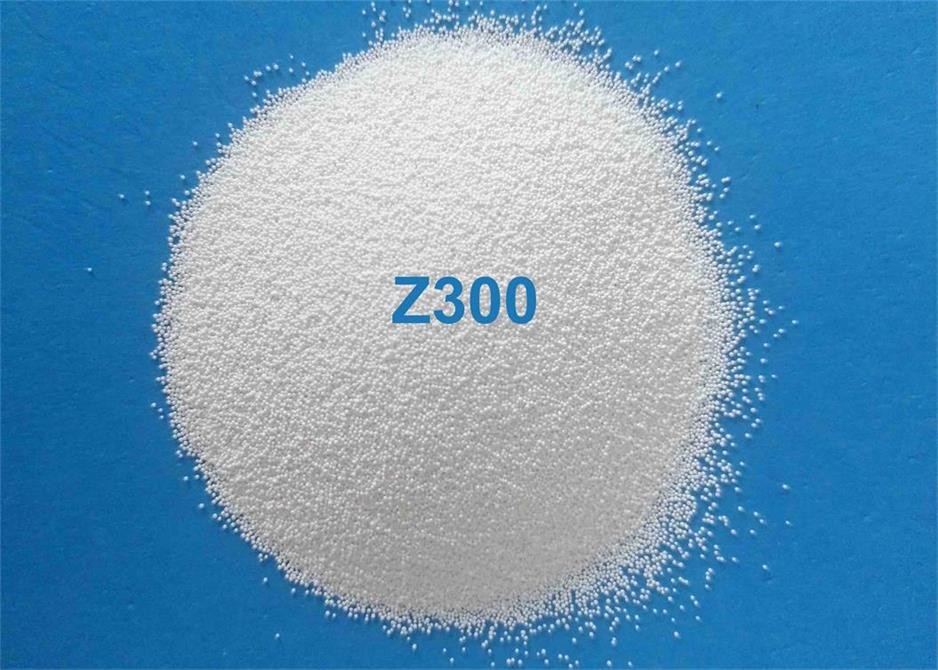

| Z100 | Z150 | Z210 | Z300 |
| 100-150μm | 150-210μm | 210-300μm | 300-425μm |
| Z425 | Z600 | Z850 | |
| 425-600μm | 600-850μm | 850-1180μm | |
| Remark: Special specification can be customized | |||
3. Package of Ceramic Shot Peening:
4. Main Product Features of Ceramic Beads:
- Smooth surface finish,which will provide the minimal crack initiation
- Low material abrasion rate,which will maintain the accuracy of fine geometries;
- Good elasticity and smooth surface allows high rebound and consistent coverage.
- No ferrous contamination to the treatment surface
5. Main Application of Ceramic Shot Peening
Shot peening for metal parts in aviation, ships, machinery industry etc. to improve the surface strength,
eliminate the stress,reduce the metal weights;
Shot peening in automotive industry such as gearbox gears,automotive aluminum hubs etc. to extend the
anti-fatigue life.
6. Why Choose Us?
Professional Manufacturer of ceramic beads,annual output over 3000mts;
Equipped the most advanced production line,testing equipment, as well as professional technical staffs
and 7*24h technical support;
Strict quality control and quality assurance, products will be inspected by eachshipment,even for the free
sample in small quantity;
Multiple Authentication,Certificated by ISO9001 ISO14001,SGS,ROHS;
Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc;
Products in good quality & stable performance,competitive price,flexible payment terms,prompt delivery etc.
