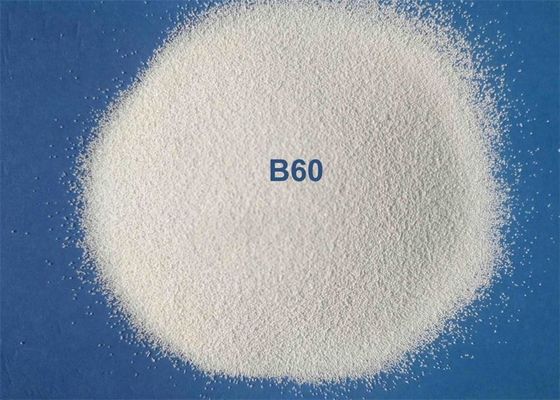

Ceramic Bead Zirconium Silicate Beads B60 B120 B170 B205 for Surface Cleaning

Ceramic Bead Zirconium Silicate Beads B60 B120 B170 B205 for Surface Cleaning

Product Details:

Place of Origin: China
Brand Name: Zirnano
Certification: ISO9001,ISO14001
Model Number: B20-B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotaible
Packaging Details: 2*12.5 KGS Barrel +Carton Box + Pallet,25KGS Barrel + Pallet
Delivery Time: 3-5 days after order confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000mts
Get Best Price Contact Now

Detail Information

Commodity: Ceramic Bead Blasting Product Name: Zirconium Silicate Beads
Usage: Blasting Media Bulk Density: ≥2.3 G/cm3
True Gravity: ≥3.85 G/cm3 Recycles: 70-90
High Light:

abrasive media blasting

,

low dust blasting media

Product Description

Ceramic Bead Blasting Zirconium Silicate Beads B20 B40 B60 B120 B170 B205 for Surface Cleaning



1. Product Description of Ceramic Bead Blasting Zirconium Silicate Beads

Ceramic Bead is one clean and durable blasting media,it has smooth surface,which will not damage the

original dimension of most treated parts. leaves a fine surface and will not distort or change dimensions

of most parts.



2. The Simple Comparation between Ceramic Beads & Glass Beads

As we know,ceramic beads and glass beads has the similar solid round shape,while they are different

two blasting media,hereby we just make a simple comparation as below:

Item Ceramic Blasting Beads Glass Beads
Chemical Index ZrO2 60-66%
SiO2 25-30%
Al2O3 7-13%
SiO2:>65%,
Na2O<14.0%
CaO>8.0%,MgO>2.5%
Al2O3 0.5-2.0% Fe2O3:0.15


Vickers Hardness ≥700 HV ≥560HV
True Specific Gravity ≥3.85 g/cm3 ≥2.5g/cm3
Bulk Density ≥2.3g/cm3 ≥1.5g/cm3
Particle Size 0.04-0.85mm 0.045-0.85mm
Usage Blasting Media Blasting Media
Ferrous Contamination No Ferrous No Ferrous
Dust Pollution Little Large
Recyclable Times 70-90 9-12
%Breakdown 1.2% 10%
Equipment Wear Rate Low Low
Blasting Effect Stain finish
No discoloration
High finish
White discoloration



Seen from the above chart, ceramic beads is more durable and could be recycled for 70-90times,while

glass beads only could be recycled for 9-12 times;Ceramic beads also has quite low breakdown rate,

dust pollution and will provide no discoloration to the treatment surface.



Therefore,ceramic beads can replace glass beads where a clean and good blasting effect requires.



3. The particle size of ceramic bead blasting

Ceramic beads has wide particle size from micro size to the very fine size,it is able to be matched

with various blasting equipment, detail particle size as below:

Particle Size
B20 B30 B40
600-850μm 425-600μm 250-425μm
B60 B80 B100
125-250μm 180-250μm 125-180μm
B120 B170 B205
63-125μm 45-90μm 0-63μm



4. Why Ceramic Beads is widely used as one Blasting Media?

Ceramic beads contains 62-66% ZrO2,its fine microstructure ensures it has the characteristics of high hardness,

strong mechanical resistance,good elasticity,it is more durable,not easy to be broken in the blasting process;



Ceramic beads has higher density than the one of glass beads,and lower density than the one of steel shot,it will

make up the upper and lower limit gap between glass beads and steel shot,therefore ceramic beads is able to

replace them in many applications;



Ceramic beads has lower breakdown rate,then little dust generated,it will provide a clean and good blasting sight

for the operator;People do not need to refuel the new beads frequently,the beads will be kept the same shape and

quality in the blasting machine,then it will achieve one more consistent blasting effect from the first part to the last;



5. Main Applications of Ceramic Bead Blasting

Surface cleaning to remove the rust,oil stain and impurities of various molds such as glass bottles,tires and dies,

automotive molds,plastics molds,forged and casted metal etc.



Surface cleaning for the inner and outer walls of various metal pipes such as copper pipes,steel pipes.



6. Why Choose Zirnano Ceramic Beads?

Higher clearliness

Our ceramic bead are screened more than six times and blow-cleaning under high temperature,which provides

higher clearliness and ensures it to be work normally in humid weather;



More concentrated particle size distribution

B400(0.030-0.063μm) is more concentrated than the other one(0-0.063μm) from other company,which will achieve

better blasting effect.



Multiple Authentication

Certificated by ISO9001 ISO14001,SGS,ROHS



Stable supplier of Foxconn,Ujiden,Samsung Electronics,Tongda Group etc



Products in good quality & stable performance,competitive price,flexible payment terms.
