Peening Media Ceramic Shot Peening Beads AMS 2431/7A Z100 Size 0.10 - 0.15MM
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | Z100-Z850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| Highlight: | shot blasting material,shot blasting abrasive,abrasive shot blasting |
||
Product Description

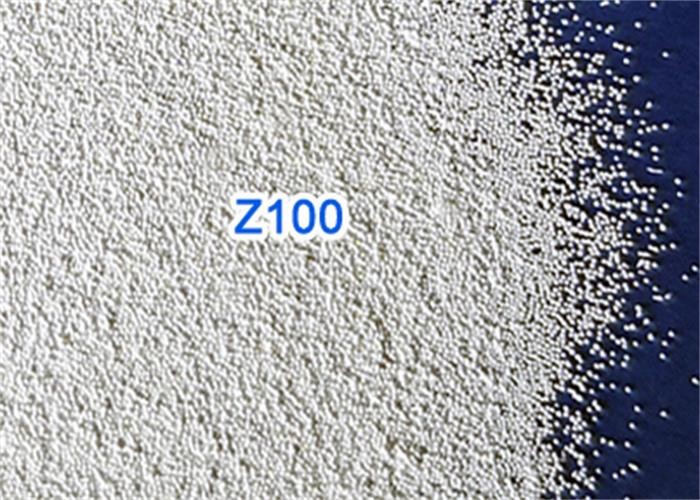

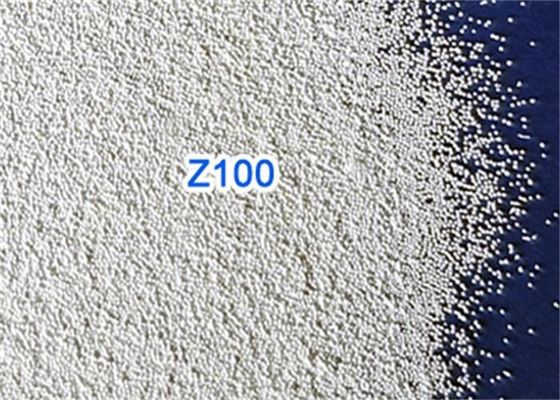

Ceramic beads AMS 2431/7A Peening media ceramic shot Z100 size 0.10-0.15MM
The ceramic shot peening media is also call ceramic beads, with ZrO2 60-66%, size from Z100 to Z850
Shot Peening is a process to impact surface with media (steel shot, glass beads or ceramic shot) to produce compressive residual stress and modify mechanical properties of metals to prolong service life of the work pierces.
Ceramic beads meet the standard- AMS 2431/7A, Peening media ceramic shot.
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
| Bead Size (mm) |
Z100 |
0.10-0.15 | |
| Z150 | 0.15-0.21 | Z425 | 0.425-0.6 |
| Z210 | 0.21-0.30 | Z600 | 0.6-0.85 |
| Z300 | 0.30-0.425 | Z850 | 0.85-1.18 |
Special sizes available against clients’ requirement.
• High consistency from bead to bead leading uniform finishes to the tightest tolerances.
• Precision hardening of the part to increase strength and wear and fatigue resistance.
• High toughness, High durability, Long working life in shot peening
• Smooth spherical surface, low abrasion loss, can reduce wear and tear on peening machines.
- Used for surface strengthening treatment of precision casting parts such as aircraft turbine blades and shafts, ordnance, and various spring gear hydraulic parts to eliminate internal stress.
- Used in the automotive industry for strengthening treatment to the surface of Shock absorber spring to improve its anti-fatigue performance
- Shot peening of gears, machined tools and other metal /alloy parts to eliminate stress and increase surface strength
wheel blast or air blast shot peening equipment
Airblast cabinet
Automatic and compact peening system
Gear and Shaft Shot Peening
Coil Spring Shot Peening
Leaf Spring Peening
Rail Wheel Peening
Wing Peening
Our Service
Free Samples -1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
Quality Guarantee
Guarantee our ceramic beads has no quality problems, and in case any problems are found,
We accept return and/or exchange.
If you're looking for ceramic shot peening media, just feel free to contact us to get advisory pre-sale service, best price and sample. etc.
