High Efficiency Ceramic Shot Peening Media 700HV Hardness Z425 AMS 2431/7A
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | Z850, Z600, Z425, Z300, Z210, Z150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Shot Peening Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| Highlight: | shot blasting material,shot blasting abrasive,abrasive shot blasting |
||
Product Description
Ceramic shot Z425 meeting AMS 2431/7A Peening media ceramic shot
The ceramic shot peening media is also call ceramic beads, with ZrO2 60-66%, size from Z150 to Z850
Ceramic beads shot peening can improve the work pieces performance and prolong working life.
Mainly used for in aerospace industry, automotive industry and medical instrument.
Meeting SAE Aerospace Material Specification AMS 2431/7A, Peening media ceramic shot.
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||

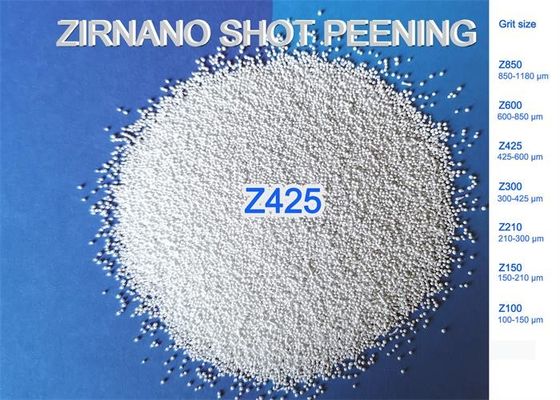

| Bead Size (mm) | Bead Size (mm) | ||
| Z150 | 0.15-0.21 | Z425 | 0.425-0.6 |
| Z210 | 0.21-0.30 | Z600 | 0.6-0.85 |
| Z300 | 0.30-0.425 | Z850 | 0.85-1.18 |
Special sizes available against clients’ requirement.
Difference between ceramic shot and cast steel shot
1). Compared with cast steel shot peening, residual stress distributions induced by ceramic shot can be obtained in wider variation range.
2). The plastic deformation layer depths induced by ceramic shots are much lighter than thatof cast steel shot peening.
3). All the surface topographies induced by ceramic shots are much delicate/smooth that those of ceramic shots.
In the work of Ti1023 alloy shot peen, the ceramic shot with a diameter of 1.08mm and peening intensity of 0.18 mm A is the optimal shot-peening condition.
-
1) Aerospace industry-Shot Peening
Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.
-
In shot peening /shot blasting
Pneumatic shot blasting machine
Centrifugal shot blasting machine
CNC shot peening equipment
Wet shot blasting equipment
Free Samples -1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
