High Mechinical Strength Ceramic Bead Blasting Shot Peening B20 - B205 Z100 - Z850

Minimum Order Quantity : 100KGS Price : Negotiable
Packaging Details : 25 Kg Barrel +Pallet or 2*12.5kg barrel+Carton Box+Pallet Delivery Time : 3-4 Days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200mts per Month
Place of Origin: CHINA Brand Name: ZIRNANO
Certification: ISO9001,ISO14001 Model Number: B20-B400,Z100-Z850

Detail Information

Commodity: Ceramic Shot Peening Product Name: Zirconia Beads
Application: Shot Peening,Surface Finish Vicker Hardness: 700HV
True Gravity: 3.85 G/cm3 Color: White
High Light:

shot blasting material


shot blasting abrasive


abrasive shot blasting

Product Description

High Mechinical strength Ceramic bead blasting shot peening B20-B205,Z100-Z850

1. Product Description of Ceramic bead blasting shot peening B20-B205,Z100-Z850

Ceramic bead is made by high quality zirconium sand in one electrical furnace under high temperature

over 2000 degrees through special technology.

Ceramic bead is divided into two types: the microblast fine ceramic beads are used for one clean blasting

media in surface finishing,the other one are used for shot peening of metal alloys as well as hard alloys

for aerospace structural components.


2. Main Technical Data of Ceramic Bead Blasting

ZrO2 SiO2 Al2O3
60-66% 25-30% 7-13%
Vicker Hardness True Specific Gravity Bulk Density
≥700 HV ≥3.85 g/cm3 2.3g/cm3

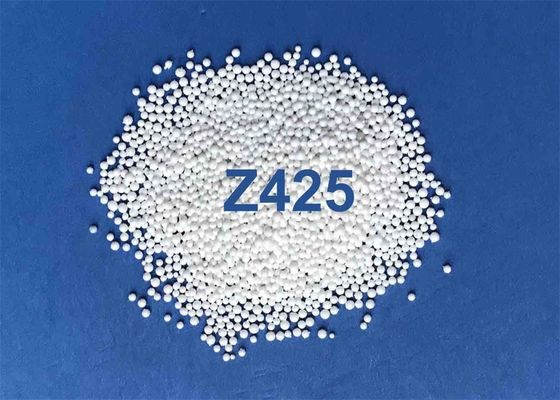

High Mechinical Strength Ceramic Bead Blasting Shot Peening B20 - B205 Z100 - Z850 0

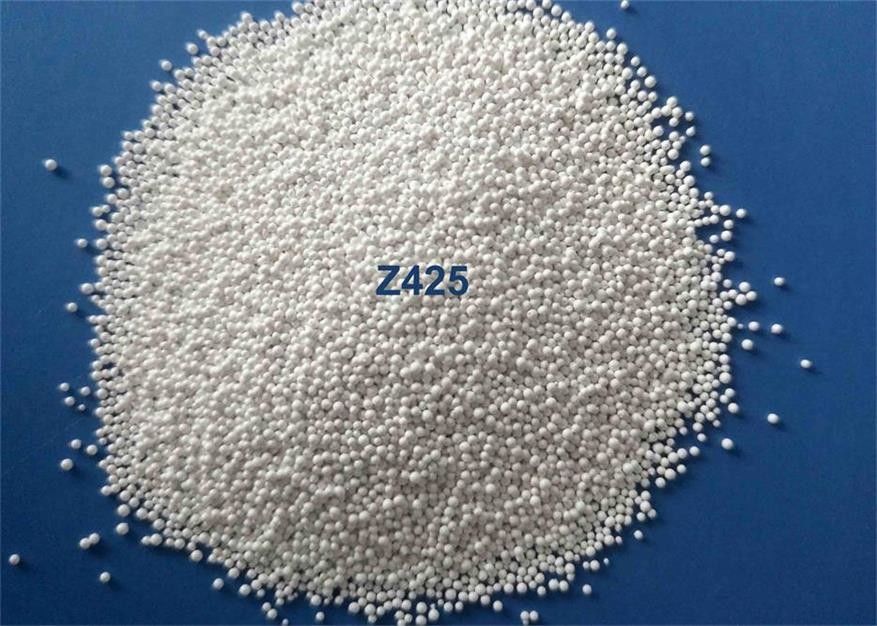

High Mechinical Strength Ceramic Bead Blasting Shot Peening B20 - B205 Z100 - Z850 1


3. Main Features of Ceramic Bead Blasting

High Hardness,small deformation

Low breakdown rate,long service life

Low dust levels,good blasting sight

No ferrous contamination to the treatment surface

Few damage to the blasting equipment

No hideen danger of silicosis


4. Main Application of Sandblasting & Shot Peening

Ceramic bead has high hardness and good impact resistance,low breakdown rate,so it is widely used as

one clean blasting media in surface finish of 3C products such as the metal or plastic surface or its built-in
parts of computer,mobile phone,camera as well as for USB, power bank etc....


Ceramic beads has extremely fine microstructure, which provides good impact strength and toughness,

so it is suitable for Shot peening of metal parts and light alloy parts such as alluminum & alluminum alloy

parts,titanium alloy,magnesium alloy as well as stainless steel parts and copper parts.


5. The comparasion between Sandblasting and Shot peening

Same Working Principle:

Both Selected the compressed air as power, and blow the blasting media out at high speed to impact the

surface of the workpiece to achieve the cleaning effect.

While Shot peening produces a larger compressive stress on the surface than the one of sand blasting

So they will achieve different visual effect:

Sandblasting will provide a dark surface without metallic luster, while shot peening will achieve the matt effect
&metallic luster.


6. Why choose us

Higher clearliness

Our ceramic bead are screened more than six times and blow-cleaning under high temperature,

which provides higher clearliness and ensures it to be work normally in humid weather;


More concentrated particle size distribution

B170(0.045-0.090μm),B205(0.045-0.063μm) is more concentrated than the other one(0-0.063μm) from

other company,which will achieve better blasting effect.


High price/performance Ratio

Our factory is located in the mountain area,where has the lower production cost and environmental cost,

So price is more competitive.
