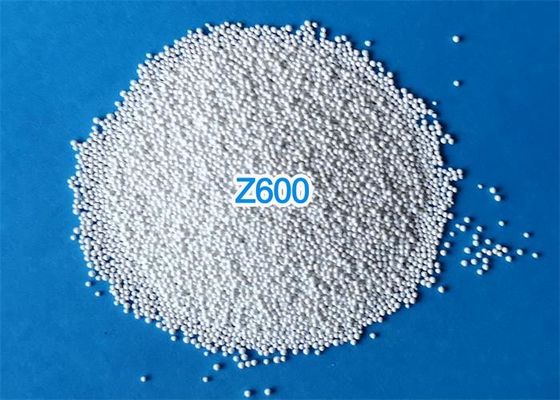

Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears

Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, ISO14001
Model Number: Z150,Z210,Z300,Z425,Z600,Z850

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

shot blasting material

,

shot blasting abrasive

,

abrasive shot blasting

Product Description

Ceramic shot peening beads Z150-Z850 for automotive and aerospace industries



Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears 0

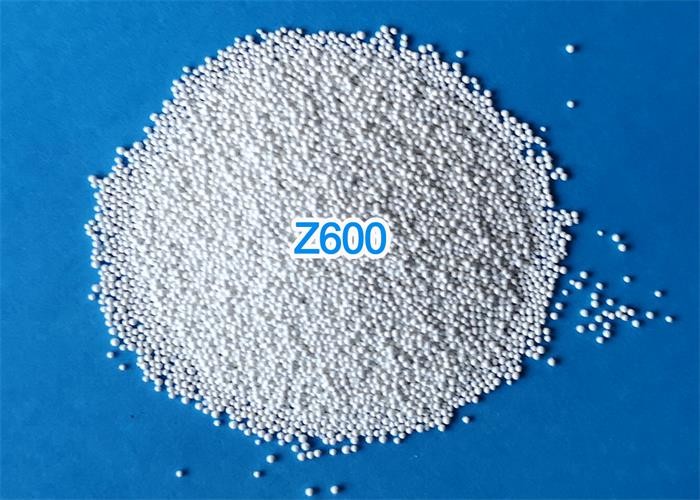

The ceramic shot peening also call ceramic beads, are zirconia based shot peening media, manufactured by electro-fusion at high temperatures, are high wear and fracture-resistant, with ZrO2 60-66%, size from Z150 t0 Z850.



In the shot peening process, the surface is hammered with small round shot media (steel shot, glass beads and ceramic beads).



Ceramic shot peening media is mainly used for in aerospace industry, automotive industry and medical instrument.

Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears 1



Chemical Index ZrO2 SiO2 Al2O3
60-65% 25-30% 7-13%
Typical Value 62.20% 26.10% 9.05%
Bulk Density 2.3g/cm3
Specific Density 3.85g/cm3
Vickers Hardness 700HV



Bead Size (mm) Bead Size (mm)
Z150 0.15-0.21 Z425 0.425-0.6
Z210 0.21-0.30 Z600 0.6-0.85
Z300 0.30-0.425 Z850 0.85-1.18


Special sizes available against clients’ requirement.

Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears 2

  • 1. High Density, not only applicable for shot peening of low-strength structural parts, but also can shot peening for high-strength structural parts.

  • 2. Smooth surface, high sphericity, and good elasticity, can protect the equipment, whether it is dry or wet spray.

  • 3. Can strengthen the surface of the metal surface, improve the service life of the workpiece, improve the wear resistance, and improve the texture of the workpiece.

  • 4. Variety of grade, or size, of the ceramic shot to provide the required surface finish and strength compression.

  • 5. Applicable to finish many metals, including aluminum, steel, steel forgings and machine parts.



Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears 3

  • 1) Aerospace industry-Shot Peening

    Suitable for aerospace engine components, aircraft landing gear, gear transmissions, aero-engine blades, aircraft wing-shot peening

    2) Automotive industry-Sandblasting reinforcement/ Shot Peening

    Suitable for gearbox gears, automotive aluminum hubs, piston components/shock absorbers, engine crankshaft sandblasting reinforcement/shot peening

    3) Machinery, Medical Instrument - Sandblast finishing/shot peening

    The overall sandblasting and polishing, finishing, restore the natural color of the metal, enhance the visual effect and texture, and also shot peening reinforcement to improve its worklife.

Roundness 80% Ceramic Beads Blasting Media Shot Peening Beads Z600 For Automotive Gears 4



Free Samples -1kgs

Different blasting workpieces, Different requirements for ceramic beads.

Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.



OEM customize same ceramic beads with your samples or requirements.

Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.



Quality Guarantee

Guarantee our ceramic beads has no quality problems, and in case any problems are found,

We accept return and/or exchange.
