Iron Free Ceramic Micro Beads B170 Blasting Media For Alloy Surface Finishing
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B20-B505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |

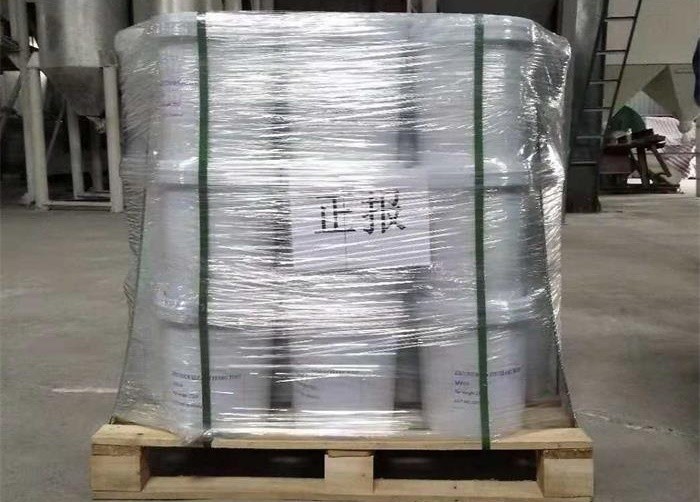

| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | low dust blasting media,ceramic cleaning media |
||
Product Description

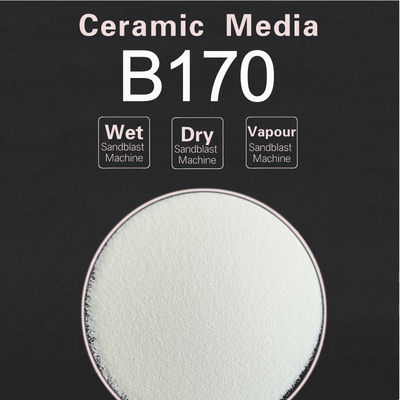

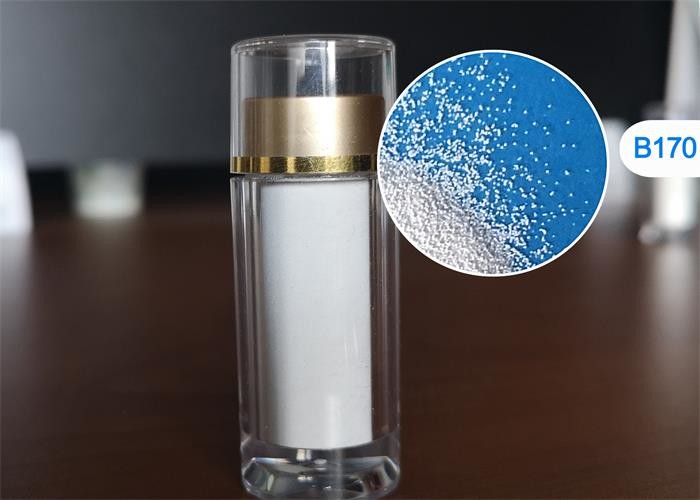

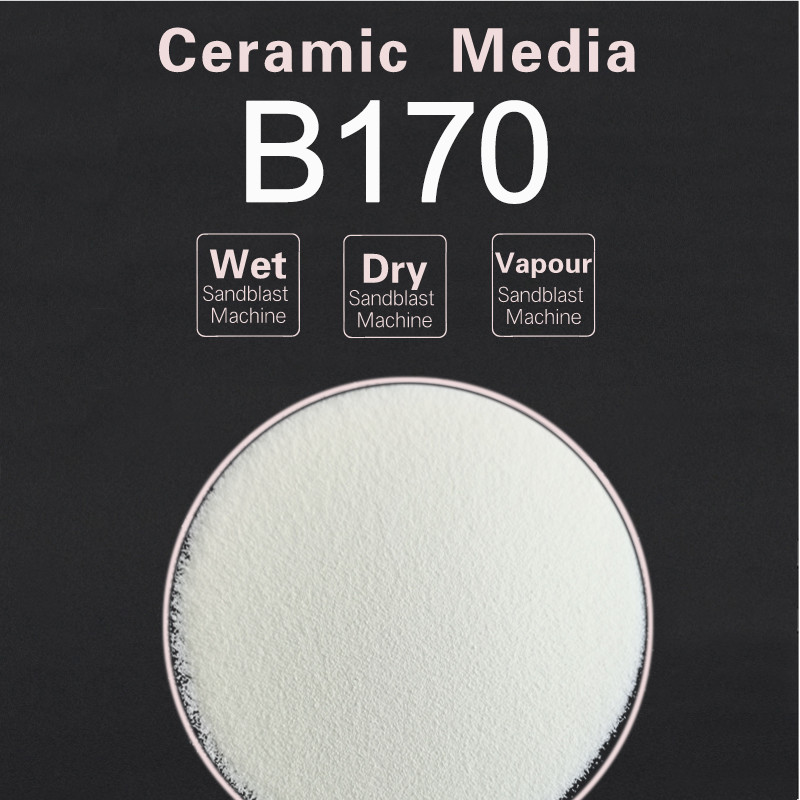

Iron-free Ceramic micro beads B170 blasting media for alloy surface finishing
DESCRIPTION
Ceramic bead blasting is zirconia-based blasting media, obtained in special production process and unique formula. ZrO2 62-65%, HS code 690919. The beads are no dust, durable and efficient, offering consistent surface finishing, are new eco-friendly blasting material, widely used for blast cleaning and surface preparation.
Ceramic blasting beads mainly used for debluring and blast finishing in mobile phone middle frames and other 3C products, also in glass bottles molds cleaning, golf clubs surface finishing, painting surface pretreatment and shot peening in aerospace industry, automotive industry and medical instrument.
SPECIFICATION
Manufacturing process: Melting method
| ZrO2 | SiO2 | Al2O3 | Other |
| 60-66%, | 25-30% max. | 7-13% max. | 5-8% |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.3g/cm3 | 3.85g/cm3 | 700 HV |
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 |
Special sizes can be customized |
|
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 | ||
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
FEATURES
1. High hardness and good impact resistance to enable Efficient and durable blasting
2. Consistent Surface Finishing
3. No contaminating to the treated material
4. Very low dust emission, safe and healthy for workers
5. High toughness to ensure media stability over numbers of blasting cycles
6. Not break down, extremely cost effective
APPLICATIONS
- Molds Cleaning
Removal of carbon deposits and other impurities from glass making and rubber tire molds, without damaging the surface or critical edges. Deburring thin gaskets.
- Surface finishing
Cleaning, sanitizing and surface finishing of fabricated stainless steel items for food and pharmaceutical industries. Blasting gives stainless steel a satin grey touch
Medical implant and instrument surface finishing.
Work pieces blasted with ceramic beads are a lot less prone to fingerprints and other handling stains than those blasted with glass beads and stay looking good a lot longer.
APPLICABLE EQUIPMENT
Suitable sand blasting machine:
Manual type series:
Manual closed type blasting machine, manual cart rotary blasting machine, double gun double station manual blasting machine, manual (automatic) roller dual-purpose blasting machine, manual closed pressure
Automatic series of sand blasting machine:
Automatic closed pressure blasting machine, automatic conveying type blasting machine, crawler type blasting machine, automatic turntable blasting machine, automatic turntable continuous pressure blasting machine, automatic conveying
Open type series of sand blasting machine:
Crankshaft inner wall automatic sand blasting machine
Blasting room series:
Pneumatic conveying type blasting room, mechanical conveying type blasting room, etc.
CONTACT US
No matter you’re the end users, blasting service suppliers, sandblasting equipment dealers or ceramic beads and other blasting abrasive distributors, welcome to contact us. More details of ceramic bead blasting, updated prices and samples will be available.
