Zirconia Ceramic Beads Blasting B60 Easy Cleaning After Sandblasting
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, ISO14001 |
| Model Number: | B60,B80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| Highlight: | abrasive media blasting,low dust blasting media |
||
Product Description

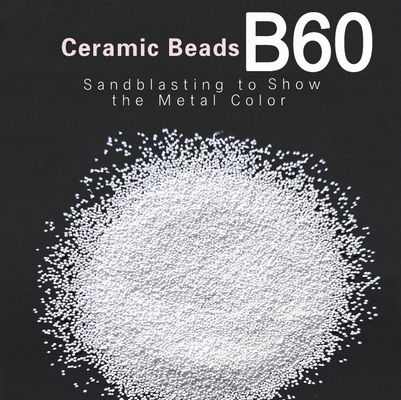

Zirconia Ceramic Bead Blasting B60 easy to clean after sandblasting
DESCRIPTION OF CERAMIC BEADS BLASTING MEDIA
Our ceramic bead blasting is kind of Zirconia ceramic blasting media, with ZrO2 60-66%, size from B20 t0 B505,
same as ZIRBLAST and MICROBLAST. Ceramic blasting beads mainly used for debluring and blast finishing
in mobile phone middle frames and other 3C products, also in glass bottles molds cleaning, painting surface
pretreatment and shot peening in aerospace industry, automotive industry and medical instrument.
SPECIFICATION OF CERAMIC BEADS BLASTING MEDIA
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
| Grit size | B20 | B30 | B40 | B60 | B80 | B100 | B120 |
| Microns μm | 600-850 | 425-600 | 250-425 | 125-250 | 180-250 | 125-180 | 63-125 |
| Grit size | B125 | B170 | B205 | B400 | B505 |
Special sizes can be customized |
|
| Microns μm | 0-125 | 45-90 | 0-63 | 30-63 | 0-63 | ||
| Grit size | Z850 | Z600 | Z425 | Z300 | Z210 | Z150 | Z100 |
| Microns | 850-1180 | 600-850 | 425-600 | 300-425 | 210-300 | 150-210 | 100-150 |
FEATURES OF CERAMIC BEADS BLASTING MEDIA
1. High hardness, long life and good elasticity
The zirconia sand ceramic beads has high hardness, vickers 700HV.It ensures that the ceramic beads can be shot peened for high-strength and ultra-high-strength structural parts. The small deformation ensures that the shape of the projectile does not change during impact.
2. Recyclable and improving efficiency
Ceramic bead blasting media has long service life and high cost performance: The life of ceramic bead is more than 20 times that of glass beads.
Ceramic beads not easy to be broken, and low wear, it can effectively reduce the materials replacement times and reduce the cost of workers to improve efficiency.
APPLICATION OF CERAMIC BEADS BLASTING MEDIA
- In Sandblasting
1) 3C products - Sandblasting Finishing
2) Kitchen Industry-Sandblasting finishing
4) Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
5) Pipeline - Sandblast Cleaning
6) Molds - Sandblast cleaning
7) Electroplating, painting, anode-Surface Pretreatment
8) Hardware parts - Sandblasting to improve lubrication conditions
- In shot peening
1) Aerospace industry-Shot Peening
2) Automotive industry-Sandblasting reinforcement/ Shot Peening
3) Machinery, Medical Instrument - Sandblast finishing/shot peening
APPLICABLE EQUIPMENT
- In sandblasting
Manual sandblasting machine
Automatic sandblasting machine
Open type sandblasting machine
Sandblasting machine room
- In shot peening /shot blasting
Pneumatic shot blasting machine
Centrifugal shot blasting machine
CNC shot peening equipment
Wet shot blasting equipment
