• No Ferrous Pollution Ceramic Bead Blasting Media B400 Zirconium Oxide Ball For Surface Finish
No Ferrous Pollution Ceramic Bead Blasting Media B400 Zirconium Oxide Ball For Surface Finish

No Ferrous Pollution Ceramic Bead Blasting Media B400 Zirconium Oxide Ball For Surface Finish

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days depending on the order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Zirconia Ceramic Bead Usage: Surface Finish
Specification: B400 Particle Size: 0-0.063mm
Vicker Hardness: 700HV Bulk Density: ≥2.3 G/cm3
High Light:

abrasive media blasting

,

low dust blasting media

Product Description

No Ferrous Pollution Zirconia Ceramic Bead Blasting Media B400 for Surface Finish

1. Description of Zirconia Ceramic Bead Blasting Media

Generally, there are four kinds of zirconia beads according to different zirconia content:

Zirconia Ceramic Beads,60-66% zirconia,which is used for blasting media

65 zirconia beads, Min 65% zirconia,which is used for grinding media

80 zirconia beads,Min 80% Zirconia,which is used for grinding media

95 zirconia beads,Min 95% zirconia, which is also used for grinding media



Here we mianly introduce the first zirconia ceramic beads,which is widely used for blasting media.

That zirconia ceramic beads is made from the fusion of zircounium sand in an electric furnace under

high temperature over 2000 degree,then made into different micro beads through special production

process.



It has smooth surface and good elasticity,which could be rebounded in multi-angles,it is suitable for

sandblasting for the metal surface,then achieve different matte effect and good visual effect.


2. Main Technical Index of Zirconia Ceramic Bead Blasting Media



Commodity Main Chemical Index Main Physical Index

Zirconia Ceramic Bead Blasting Media



(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13%

Vickers Hardness: 700 kg /mm2



Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm
B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized



3. Why Zirconia Ceramic Bead is suitable for one blasting media?

Firstly,zirconia ceramic bead has high hardness and light weight,there will be formed one strong plastic

deformation on the treatment surface when a large quantity of beads are sprayed onto the treatment

surface,it will finally achieved one surface strengthening layer to improve the fatigue strength.

Secondly,ceramic beads is not easy to be broken down in the long time blasting period,the non-broken

beads will continue to keep its original shape,the beads in the blasting equipment will almost keep the

same quantity and shape,when they are sprayed onto the treatment surface,it will offers the consistent

blasting effect. In addition,people do not need to refuel the beads frequently,it will save their working time

as well as the blasting efficiency.

Thirdly,Ceramic Beads is in white color and contains 65% of ZrO2,then there will be no ferrous contamination

to the treatment surface,it is more suitable for the working conditions where ferrous contamination is concerned.

Fourthly,Ceramic beads has no hidden silicosis danger due to its low abrasion rate,it is an green blasting media.



4. Main Application of Zirconia Blasting Media Ceramic Beads

Ceramic Beads B505 is widely used for metal surface finishing such as the light metal of magnesium alloy,aluminum
alloy,titanium alloy as well as stainless steel etc.



In addition,Ceramic Beads is also used the following applications (just name few)

Ceramic Beads is used for for removing the scale oxide, rust, burrs  before surface pretreatment;

Ceramic Beads is also widely used for surface cleaning in  various industrial tools such as glass processing, tire

manufacturing and plastic molding.

Ceramic Beads is also usually used for surface strengthening of precision casting parts such as aircraft turbine blades

various spring gear hydraulic parts to eliminate the internal stress.

5. Applicable Equipment:



Manual Sandblasting machine;

Automatic Blasting Machine;

Open Blasting Machine;

Sandblasting Room



6. Product Package:

2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.

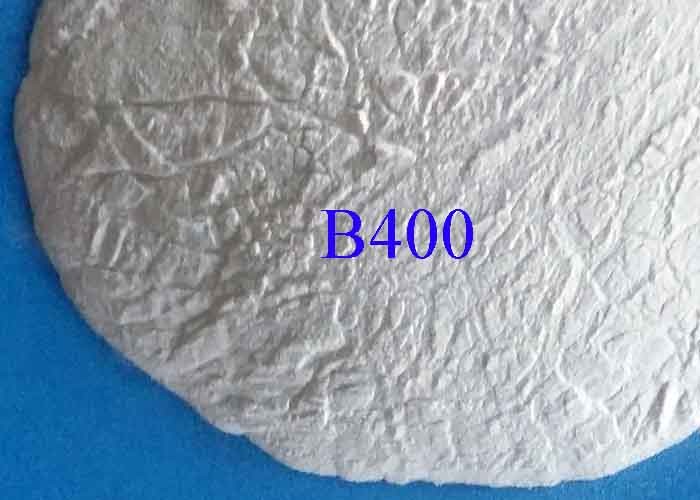

No Ferrous Pollution Ceramic Bead Blasting Media B400 Zirconium Oxide Ball For Surface Finish 0

6. Why Choose Us?


Professional manufacturer,Providing good products with stable quality & favorable price;



Equipped with the most advanced production line and testing equipments,certificatd by ISO9001&14001;



Being the stable supplier of Foxconn,Samsung,products has exported to USA,Vietnam,South Korea,Japan

etc.
