• 60 - 66% ZrO2 Ceramic Bead Blasting Zirconia Sand B20 - B505 Surface Treatment
60 - 66% ZrO2 Ceramic Bead Blasting Zirconia Sand B20 - B505 Surface Treatment

60 - 66% ZrO2 Ceramic Bead Blasting Zirconia Sand B20 - B505 Surface Treatment

Product Details:

Place of Origin: Shanxi,China
Brand Name: FUDA
Certification: ISO9001,ISO14001
Model Number: B20-B505

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet
Delivery Time: 3-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200mt per month
Get Best Price Contact Now

Detail Information

Product Name: Ceramic Bead Blasting Commodity: Zirconia Sand
Usage: Surface Treatment Vicker Hardness: 700 HV
Specification: B20-B505 True Gravity: 3.85 G/cm3
High Light:

abrasive media blasting


low dust blasting media

Product Description

60-66% ZrO2 Ceramic Bead Blasting Media Zirconia Sand B20-B505 for surface Treatment

1. Description of Ceramic Bead Blasting Media Zirconia Sand

Zirconia Ceramic Beads is one kind of ceramic blasting media,it selects the high grade zirconium sand as

main raw materials,then fused in electro furnace in high temperature,
then made into micro beads by the special technology.Its main chemical composition is 60-60% ZrO2,

it has the characteristics of high hardness, good elasticity, high gloss and high durability.

2. Main Technical Index of Ceramic Bead Blasting Media Zirconia Sand

Commodity Main Chemical Index Main Physical Index

Ceramic Blasting Media

(Melting Method)

ZrO2 60-66% Bulk Density: 2.3g/cm3
SiO2 25-30% True Specific Gravity: 3.85 g/cm3
Al2O3 7-13% Vickers Hardness: 700 kg /mm2


Particle Size
B20: 0.600-0.850mm B100: 0.125-0.180mm
B30: 0.425-0.600mm B120: 0.063-0.125mm
B40: 0.250-0.425mm B170: 0.045-0.090mm

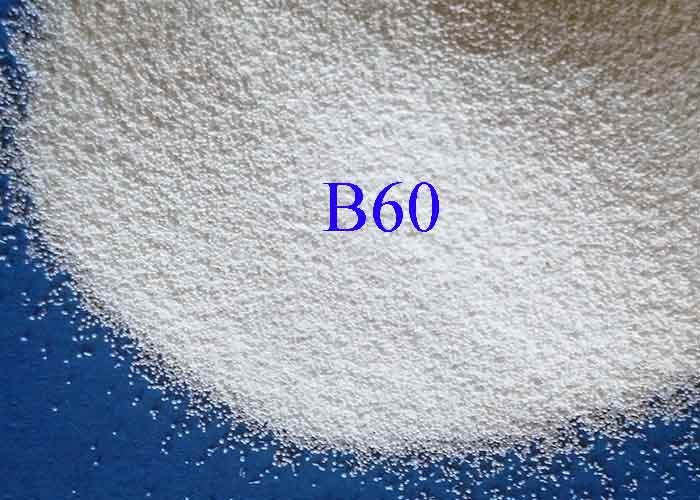

B60: 0.125-0.250mm B205: 0.000-0.063mm
B80: 0.180-0.250mm B400: 0.030-0.063mm
Remark: Special specification can be customized

3. Why ceramic beads is suitable for sandblasting media?

Firstly,ceramic beads has good sophericity and smooth surface,which ensures it is able to

be rebounded in multi angles when blasting the workpieces,there is little damage to the treatment surface

and achieve different matte effect;


Secondly, ceramic beads has high hardness, it is not easy to be broken down in the high blasting speed,

the non-broken beads will keep the original shape then go on working,it will achieve the consistent blasting

effect,because people donot need to refuel the new beads frequently. Then aslo improve the blasting effect

and save the beads cost.


Thirdly,there is no dust generated in the blasting process,it is good for the operator,and no hidden silicosis danger.


Fourthly,ceramic beads contains 60-66% ZrO2 and in white color,so no ferrous contamination to the treatment


4. Main Application of Ceramic (Bead) Blasting Media

Surface Finish for 3C products including mobile phone,computer,camera;

Sandblasting for mechnical products to remove the tiny burrs,oxide scale etc.;

Surface cleaning for various pipelines;

Surface Strengthen for aviation& aerospace and shipbuilding industry.

5. Product Package:

2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.

60 - 66% ZrO2 Ceramic Bead Blasting Zirconia Sand B20 - B505 Surface Treatment 0
























6. FAQ

Are you direct Manufacturer of Zirconia Ceramic Beads ?

Yes,we are professional manufacturer,equipped with the most advanced production line and testing



Are you able to provide free samples?

Yes, few quantity free sample is avialable.


Could you please name your some clients?

Yes, our clients includes Foxconn, Samsung Electronics etc.


If you have any other questions,please contact me freely.
