700HV Ceramic Shot Peening Beads Z150 - Z850 For Automotive / Aerospace Industries
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | Z150,Z210,Z300,Z425,Z600,Z850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet |
| Delivery Time: | 5-10 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity Name: | Ceramic Beads Blasting Media | Chemical Index: | ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13% |
|---|---|---|---|
| Manufacturing Process: | Melting Method | Bulk Density: | 2.3g.cm3 |
| True Density: | 3.85g/cm3 | Hardness: | 700HV |
| Package: | 25kgs Paper Cartons Or 25kgs Barrels +pallet | ||
| High Light: | shot blasting abrasive,abrasive shot blasting |
||
Product Description

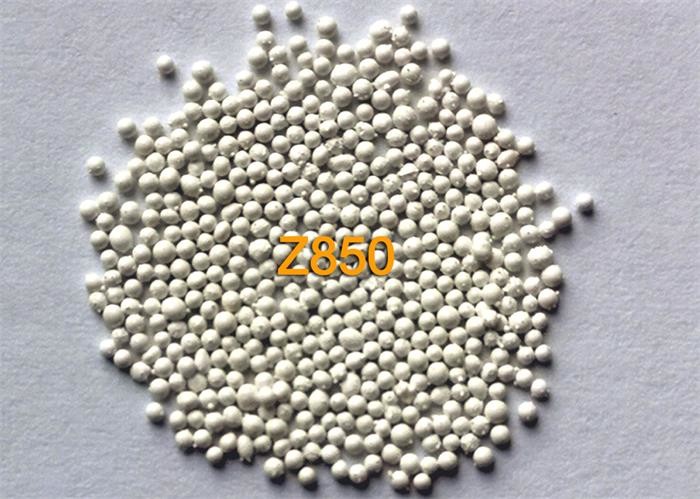

Ceramic shot peening beads Z150-Z850 for automotive and aerospace industries
Ceramic bead is also called Zirconium silicate beads, produced by melting method. It is of high toughness and density, not easy to deform its shape, resulting in a consistent surface finish, and less prone to stains or blemishes during use.
Our ceramic shot peening services meet the standards in the shot peening industry, including the SAE International standards. We are registered in ISO9001 and ISO 14001,
We serve many industries, and specialize in the automotive and aerospace industries.
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% | |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 | ||
| Specific Density | 3.85g/cm3 | ||
| Vickers Hardness | 700HV | ||
| Bead Size (mm) | Bead Size (mm) | ||
| Z150 | 0.15-0.21 | Z425 | 0.425-0.6 |
| Z210 | 0.21-0.30 | Z600 | 0.6-0.85 |
| Z300 | 0.30-0.425 | Z850 | 0.85-1.18 |
Special sizes available against clients’ requirement.
-
1. High Density, not only applicable for shot peening of low-strength structural parts, but also can shot peening for high-strength structural parts.
-
2. Smooth surface, high sphericity, and good elasticity, can protect the equipment, whether it is dry or wet spray.
-
3. Can strengthen the surface of the metal surface, improve the service life of the workpiece, improve the wear resistance, and improve the texture of the workpiece.
-
4. Variety of grade, or size, of the ceramic shot to provide the required surface finish and strength compression.
-
5. Applicable to finish many metals, including aluminum, steel, steel forgings and machine parts.
- It is ideally suited for shot peening, widely used processes for improving the wear properties of metal surfaces, usually for gears and other complex shapes. Ceramic shot peening creates dimples on the surface of the gear. The dimples retain beneficial oils and eliminate geartooth pitting, increasing the strength and fatigue life of the gear.
Our Service
Free Samples -1kgs
Different blasting workpieces, Different requirements for ceramic beads.
Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.
OEM customize same ceramic beads with your samples or requirements.
Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.
Quality Guarantee
Guarantee our ceramic beads has no quality problems, and in case any problems are found,
We accept return and/or exchange.
