Ceramic Shot Blasting Beads , Z150 - Z850 To Eliminate Stress Shot Blasting Abrasive

Ceramic Shot Blasting Beads , Z150 - Z850 To Eliminate Stress Shot Blasting Abrasive

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, ISO14001
Model Number: B20, B30, B40, B60, B80, B100, B120, B170, B205, B400

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: Negotiation
Packaging Details: 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet
Delivery Time: 5-10 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Ceramic Beads Blasting Media Chemical Index: ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%
Manufacturing Process: Melting Method Bulk Density: 2.3g.cm3
True Density: 3.85g/cm3 Hardness: 700HV
Package: 25kgs Paper Cartons Or 25kgs Barrels +pallet
High Light:

shot blasting material

,

abrasive shot blasting

Product Description



Ceramic shot peening beads Z150-Z850 to eliminate stress



Ceramic Shot Blasting Beads , Z150 - Z850 To Eliminate Stress Shot Blasting Abrasive 0

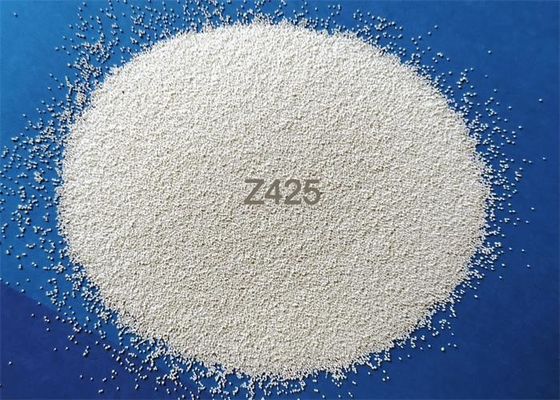

Ceramic Beads are a spherical peening media produced by electrofusion at a temperature of 2000°C, extremely tough and fracture-resistant, which ensures consistent peening intensities and surface finishes. Ceramic Beads are available in two grades, one for impact surface treatment and the other for shot peening applications. A variety of sizes are available for finishing, peening, deburring, cleaning and descaling ferrous and non-ferrous parts.

Ceramic Shot Blasting Beads , Z150 - Z850 To Eliminate Stress Shot Blasting Abrasive 1



Chemical Index ZrO2 SiO2 Al2O3
60-65% 25-30% 7-13%
Typical Value 62.20% 26.10% 9.05%
Bulk Density 2.3g/cm3
Specific Density 3.85g/cm3
Vickers Hardness 700HV



Bead Size (mm) Bead Size (mm)
Z150 0.15-0.21 Z425 0.425-0.6
Z210 0.21-0.30 Z600 0.6-0.85
Z300 0.30-0.425 Z850 0.85-1.18


Special sizes available against clients’ requirement.

Ceramic Shot Blasting Beads , Z150 - Z850 To Eliminate Stress Shot Blasting Abrasive 2

  • High hardness, good elasticity and long service life
  • Smooth surface finish that minimizes crack initiation
  • Very low material abrasion that maintains accuracy of fine geometries
  • High rebound that allows homogeneous coverage of intricate geometries
  • No need for decontamination post-treatments for non-ferrous alloys
  • High in price but low in cost. Can be recycling use and cost savings on the downstream processes (coating, polishing)

Ceramic Shot Blasting Beads , Z150 - Z850 To Eliminate Stress Shot Blasting Abrasive 3

Shot peening to extend fatigue life by stress relieving, peen-forming and peen-straightening.

Widely used in below industries

  • Aerospace Industry: manufacture and maintenance of titanium alloy parts.
  • Metalworking: shot peening of metal and alloy workpieces to release stress
  • Automotive industry: Anti-fatigue and strengthening treatment of suspension spring surface
  • Turbine industry: anti-fatigue treatment and strengthening treatment of turbine blade surface
  • Steel industry: High Strength Steel (HSS) shot peening to strengthen surface





Our Service



Free Samples -1kgs

Different blasting workpieces, Different requirements for ceramic beads.

Our factory can provide consult solution, suggest the ceramic beads sizes according to the workpiece you handle and provide 1kgs ceramic beads samples for free.



OEM customize same ceramic beads with your samples or requirements.

Our factory has our own test lab., with high precision chemical and particle size detection instruments. You can send ceramic beads samples, then we will test and analysis it and customize same ceramic beads with your samples or according to your customer requirements.



Quality Guarantee

Guarantee our ceramic beads has no quality problems, and in case any problems are found,

We accept return and/or exchange.
