Zirconia grinding media for pesticide suspensions ultrafine grinding dispersion
Product Details:
Place of Origin: | Shanxi, China |
Brand Name: | Zirnano |
Certification: | ISO9001, IS014001 |
Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
Minimum Order Quantity: | 25kgs |
---|---|
Price: | Negotiation |
Packaging Details: | 25kgs barrels+Pallet |
Delivery Time: | 5-20 days |
Supply Ability: | 500mt per year |
Detail Information |
|||
Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
---|---|---|---|
Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
True Density: | 6.0g/cm3 | Harness: | 1100HV |
Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
Highlight: | zirconium oxide beads,zirconium oxide balls |
Product Description

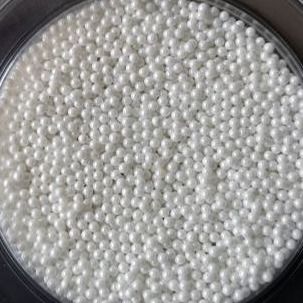

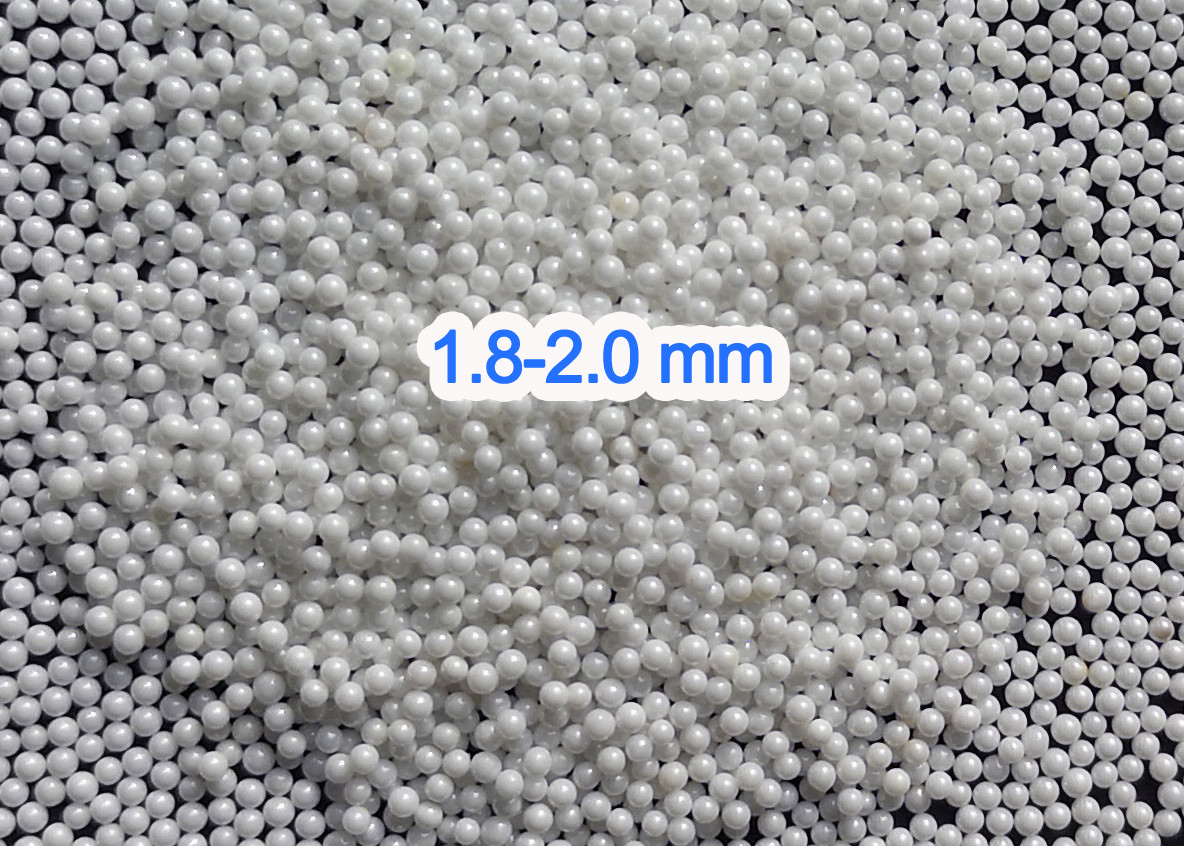

Zirconia grinding media for pesticide suspensions ultrafine grinding dispersion
Zirconia beads grinding media is produced from imported Yttria stabilized zirconia powder, smooth sphere surface, high density, is an ideal grinding media in wet grinding and dispersing applications because of below features:
- Smooth surface, great sphericity leading higher grinding and dispersion efficiency.
- Higher density provides it greater impact force and superior grinding efficiency.
- Higher wear resistance resulting in minimizing product contamination from media wear.
- Higher wear resistance results in less frequent media replacement.
- Resistant to rust and corrosion, and thus compatible with water based processing.
Manufacturing process: Sintering Method
Chemical composition | ZrO2 95% Min. Y2O3 4.5% Min |
Color | Shiny white |
Shape | Sphere/ Bead / Ball |
Density | 6.0g/cm³ Min. |
Specific density | 3.7g/cm³ Min. |
Moh's hardness | 9 |
Impact Strength | 2.9KN (2mm) |
Compressive Strength | 5500MPa |
Modulus of Elasticity | 200Gpa |
Package | 25kg/barrel |
SIZES Φ MM | ||||
0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 |
Superfine grinding of pesticide suspensions, herbicides, insecticides, fungicides, seed dressing suspensions,
Grinding fineness between 0.1 to 5um
In the pesticide industry, the grinding of traditional products is usually carried out by using three sand mills in series. The most common grinding media selected by the three sand mills are Φ1.8-2.0mm and Φ1.4. -1.6mm, Φ1.0-1.2mm and Φ1.4-1.6mm, Φ1.0-1.2mm, Φ0.8-1.0mm, depending on the actual situation of each manufacturer, there are also other sizes. Many producers use 65% ZrO2 zirconium silicate beads as grinding media, Some other manufacturers use 95% ZrO2 yttrium-stabilized zirconia beads.
Generally, coarse grinding is usually choose 65 zirconium silicate beads as grinding media, and superfine grinding use 95 yttrium-stabilized zirconia beads.
- Bar pin horizonal grinding mill
- Turbine horizonal grinding mill
- Ring-type grinding mill
- Centrifugal grinding mill
- Nano Grinder
Our Services
1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated.
2. Treat all clients with sincerity, no imaginary higher price.
Even if you’re the first time to buy the Zirconia beads milling media, you can get the same price as the experienced clients.
3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.
4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.
5. Fast response within 24 Hours
6. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.
