Electronic Paste Ultrafine Zirconia Milling Media Lithium Battery Slurry Dispersion
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | zirconium oxide balls,zirconia ceramic balls |
||
Product Description

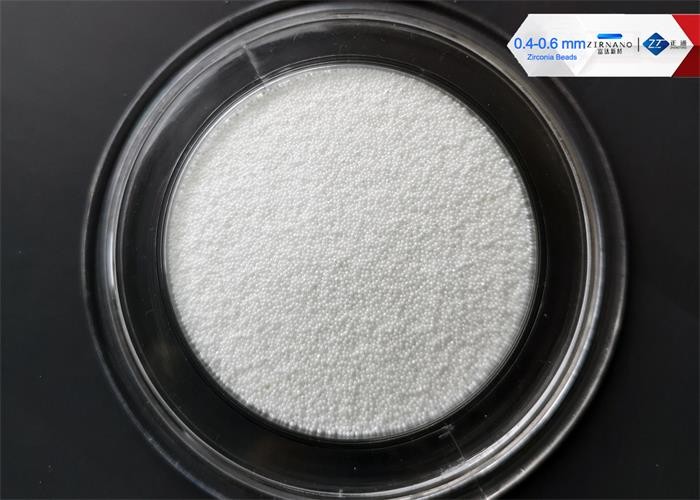

Zirconia grinding media for electronic paste lithium battery slurry ultrafine grinding
Zirconia beads is produced by our advanced technology in sintering method, leading the beads superior strength and fracture toughness, ppm wear grade, high hardness, corrosion resistance, ultra-smooth surface features etc. As ideal grinding media, zirconia beads are widely applicable in various grinding and dispersion condition.
Manufacturing process: Sintering Method
| Chemical composition | ZrO2 95% Min. Y2O3 4.5% Min |
| Color | Shiny white |
| Shape | Sphere/ Bead / Ball |
| Density | 6.0g/cm³ Min. |
| Specific density | 3.7g/cm³ Min. |
| Moh's hardness | 9 |
| Impact Strength | 2.9KN (2mm) |
| Compressive Strength | 5500MPa |
| Modulus of Elasticity | 200Gpa |
| Package | 25kg/barrel |
| SIZES Φ MM | ||||
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
| 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
| 2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 | |||
1) Extreme low wear rate--Can Prevent material from contamination
2) High density- High grinding efficiency.
3) Long working life-Lower processing costs
4) Suitable for high velocity operations and wet grinding operations.
Ultrafine grinding dispersion in:
- Electronic paste
- Silver paste, aluminum silver paste, tungsten paste, molybdenum manganese paste
- Solar cell positive electrode slurry
- Lithium battery slurry
- Graphene conductive paste,
- Thick film electronic paste, electrode paste for electronic components, etc.
Generally, 95 Yttria stabilized zirconia beads between 1.0 and 3.0mm are applicable
- Bar pin horizonal grinding mill
- Turbine horizonal grinding mill
- Ring-type grinding mill
- Centrifugal grinding mill
- Nano Grinder
Our Services
1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated.
2. Treat all clients with sincerity, no imaginary higher price.
Even if you’re the first time to buy the Zirconia beads milling media, you can get the same price as the experienced clients.
3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.
4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.
5. Fast response within 24 Hours
6. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.
