2.0 - 2.2mm / 2.2 - 2.4mm Zirconium Oxide Balls , Sphere Zirconia Sintering Beads
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min., Y2O3 4.5%Min. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | zirconium oxide beads,zirconium oxide balls |
||
Product Description

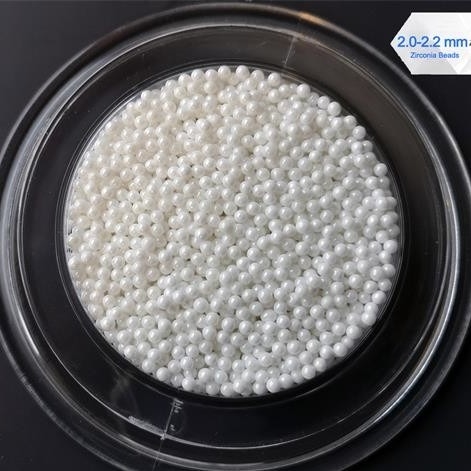

95 Yttria stabilized zirconia grinding media beads 2.0-2.2, 2.2-2.4, 2.4-2.6, 2.6-2.8, 2.8-3.0mm
Zirconia beads Grinding Media, is produced from imported yttria-stabilized zirconia powder in sintered method, exhibiting high crushing strength and wear resistance. Due to its high density, high crushing strength and relative inertness to most non acidic fluids, the zirconia beads can be more effectively used in high speed agitation mills and horizonal grinding mills.
Smooth surface leads to low mill wear and longevity. Compatibility with water based processing, as well as lower media disposal costs due to its high wear resistance and thus less frequent need for disposal. High cost is offset by low wear and minimal contamination.
All these make zirconia beads an environmentally friendly grinding media and the most cost effective media.
Manufacturing process: Sintering Method
| Chemical composition | ZrO2 95% Min. Y2O3 4.5% Min |
| Density | 6.0g/cm³ Min. |
| Specific density | 3.7g/cm³ Min. |
| Moh's hardness | 9 |
| Impact Strength | 2.0KN (2mm) |
| Compressive Strength | 5500MPa |
| Modulus of Elasticity | 200Gpa |
| Thermal Expansion Coefficient | 9.6 (20-400℃ ) |
| Compressive strength | 2300KN (Φ2.0mm) |
| Package | 25kg/barrel |
| SIZES Φ MM | ||||
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
| 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
| 2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 | |||
Yttria stabilized ZIRCONIA GRINDING MEDIA price
| Beads Diameter | Quantity and Price | |
|
2.0-2.2mm 2.2-2.4mm 2.4-2.6mm 2.6-2.8mm 2.8-3.0mm |
25-100 kgs | $28/ kgs FOB |
| 101-500 kgs | $25/ kgs FOB | |
| Above 500 kgs |
|
|
| Other Sizes |
|
|
- Materials for grinding and dispersing: Structural ceramics, electronics ceramics, refractory ceramics, magnetic material, metallurgy, medicine, pesticide, food, cosmetics, dyeing, pigment coating, painting and mine industries.
• Magnetic coatings
• Minerals
• Electronic ceramics
• Paints
• Inks
• Dyes
• Pigments
•Pesticides
• Cosmetics
Our Services
1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated factory.
2. Treat all clients with sincerity, no imaginary higher price.
Even if you’re the first time to buy and know little about the Zirconia grinding beads, you can get the same price as the experienced clients.
3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.
4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.
5. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.
6. Customized/OEM available, size, shape, Packages could be made against customer’s requirements.
