• 95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color
95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color

95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color

Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, IS014001
Model Number: 0.1mm-50mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Price: Negotiation
Packaging Details: 25kgs barrels+Pallet
Delivery Time: 5-20 days
Supply Ability: 500mt per year
Get Best Price Contact Now

Detail Information

Commodity Name: Zirconia Milling Beads Color: Shiny White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Chemical Index: ZrO2 95%Min., Y2O3 4.5%Min. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

zirconium oxide balls

,

zirconia ceramic balls

Product Description

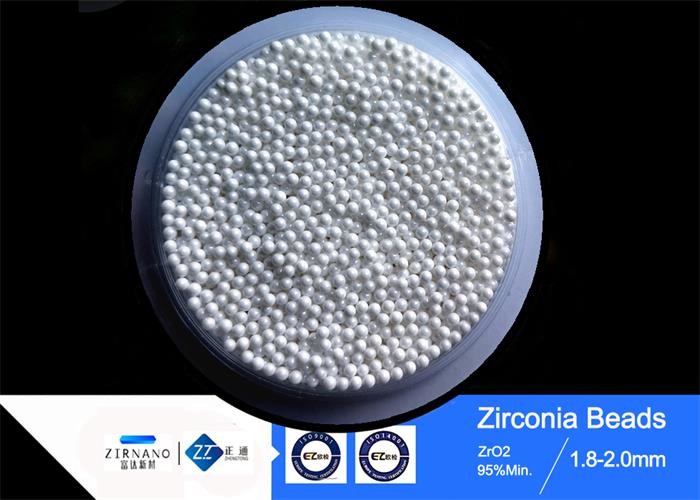

95 Yttria stabilized zirconia grinding media beads

1.0-1.2, 1.2-1.4, 1.4-1.6, 1.6-.18, 1.8-2.0mm

95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color 0

95 Yttria stabilized zirconia grinding media beads is made of imported composite yttrium stabilized zirconia powder, it has high strength and good wear resistance.

The zirconia Beads 0.1-0.2, 0.2-0.4, 0.4-0.6, 0.6-.08, 0.8-1.0mm have the lowest breakage and can greatly reduce operating costs, Widely used in various grinding and dispersion conditions.

95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color 1

Manufacturing process: Sintering Method



Chemical composition ZrO2 95% Min. Y2O3 4.5% Min
Color Shiny white
Shape Sphere/ Bead / Ball
Density 6.0g/cm³ Min.
Specific density 3.7g/cm³ Min.
Moh's hardness 9
Impact Strength 2.9KN (2mm)
Compressive Strength 5500MPa
Modulus of Elasticity 200Gpa
Package 25kg/barrel



SIZES Φ MM
0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8
0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50



95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color 2



1) Imported composite yttrium stabilized zirconia powder as raw material, with high strength and good wear resistance.

2) No break beads in working process

3) Good self-lubricating properties and less wear on equipment

4) Extreme low wear rate--Can Prevent material from contamination

5) No impurity, keep the material high degree of purity.



95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color 3

  • Materials for grinding and dispersing: Structural ceramics, electronics ceramics, refractory ceramics, magnetic material, metallurgy, medicine, pesticide, food, cosmetics, dyeing, pigment coating, painting and mine industries.

95 Yttria Stabilized Zirconia Grinding Media High Harness Multi Sizes Shiny White Color 4

  • Bar pin horizonal grinding mill
  • Turbine horizonal grinding mill
  • Ring-type grinding mill
  • Centrifugal grinding mill
  • Nano Grinder

Our Services



1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated factory.

2. Treat all clients with sincerity, no imaginary higher price.

Even if you’re the first time to buy and know little about the Zirconia grinding beads, you can get the same price as the experienced clients.

3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.

4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.

5. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.

6. Customized/OEM available, size, shape, Packages could be made against customer’s requirements.
