Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape

Minimum Order Quantity : 25kgs Price : Negotiation
Packaging Details : 25kgs barrels+Pallet Delivery Time : 5-20 days
Supply Ability : 500mt per year
Place of Origin: Shanxi, China Brand Name: Zirnano
Certification: ISO9001, IS014001 Model Number: 0.1mm-50mm

Detail Information

Commodity Name: Zirconia Milling Beads Color: Shiny White
Shape: Sphere Bulk Density: 3.7g/cm3
True Density: 6.0g/cm3 Harness: 1100HV
Impact Strength: 2.0KN Abrasion Loss: 0.5ppm/h
Chemical Index: ZrO2 95%Min., Y2O3 4.5%Min. Port Of Loading: Tianjin/Qingdao, China
Package: 25kgs Barrels+Pallet Application: Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc
High Light:

zirconium oxide beads

,

zirconium oxide balls

Product Description

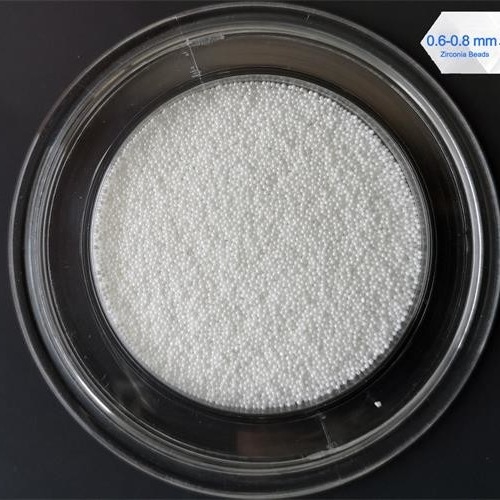

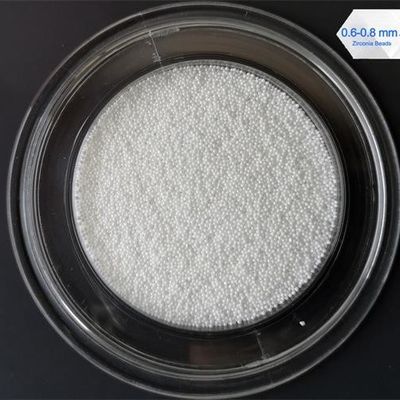

95 Yttria stabilized zirconia grinding media beads 0.1-0.2, 0.2-0.4, 0.4-0.6, 0.6-.08, 0.8-1.0mm



Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape 0

Zirconia grinding media beads is produced in sintering method by our advanced technology, leading the beads superior strength and fracture toughness.



The Fine Beads 0.1-0.2, 0.2-0.4, 0.4-0.6, 0.6-.08, 0.8-1.0mm have the highest impact strength and wear resistance with the lowest breakage and can greatly reduce operating costs, Widely used in various grinding and dispersion conditions, is high quality milling media

Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape 1

Manufacturing process: Sintering Method



Chemical composition ZrO2 95% Min. Y2O3 4.5% Min
Color Shiny white
Shape Sphere/ Bead / Ball
Density 6.0g/cm³ Min.
Specific density 3.7g/cm³ Min.
Moh's hardness 9
Impact Strength 2.9KN (2mm)
Compressive Strength 5500MPa
Modulus of Elasticity 200Gpa
Package 25kg/barrel



SIZES Φ MM
0.1-0.2 0.2-0.3 0.3-0.4 0.4-0.6 0.6-0.8
0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.2-2.4 2.4-2.6 2.6-2.8
2.8-3.0 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50



Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape 2



1) Extreme low wear rate--Can Prevent material from contamination

2) High density- High grinding efficiency.

3) Long working life-Lower processing costs

4) Suitable for high velocity operations and wet grinding operations.

Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape 3

  • Electronic material (Such as BaTiO3,BaCO3), Magnetic bands, Lithium Battery superfine grinding,
  • Paint,pigment,Coatings, Ink dispesing and superfine grinding,
  • Ceramic glaze(zirconia sand) superfine grinding,
  • Food, Medication, Pesticides, Cosmetic dispersing and superfine grinding.

Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape 4

  • Bar pin horizonal grinding mill
  • Turbine horizonal grinding mill
  • Ring-type grinding mill
  • Centrifugal grinding mill
  • Nano Grinder

Our Services



1. One of TOP 10 Zirconia milling media manufacturers in China, ISO 14001, ISO9001 Certificated.

2. Treat all clients with sincerity, no imaginary higher price.

Even if you’re the first time to buy the Zirconia beads milling media, you can get the same price as the experienced clients.

3. Full range of Zirconia beads products: all sizes and all kinds of ceramic grinding beads, adapted to various working conditions.

4. Strict Quality Control: Quality inspection is carried out in every step of our production, before entering warehouse and before loading. SGS third party inspection is available.

5. Fast response within 24 Hours

6. Free Sample Service: In order to help clients know more about our Zirconia milling media before placing orders, 200g free sample is available for clients to test.





Multi Size Ceramic Grinding Media Balls Shiny White Color Sphere Shape 5
