Stabilized Zirconia Ceramic Grinding Balls Media 1.8mm For Painting

Minimum Order Quantity : Negotiable Price : Negotiable

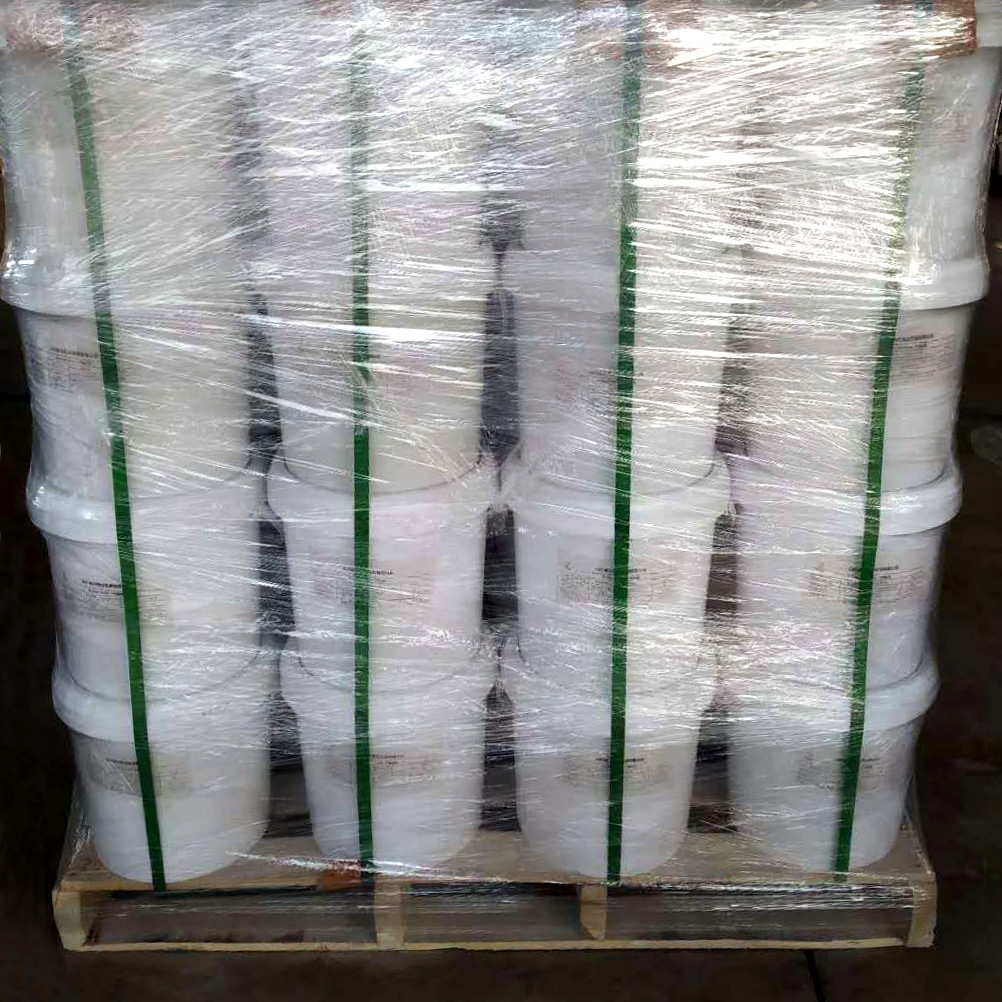

Packaging Details : 25kgs Barrels+Pallet Delivery Time : 3-10 days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1500mt per year
Place of Origin: Shandong,China Brand Name: Zhengtong
Certification: ISO9001, IS014001 Model Number: 1.8-2.0,mm

Detail Information

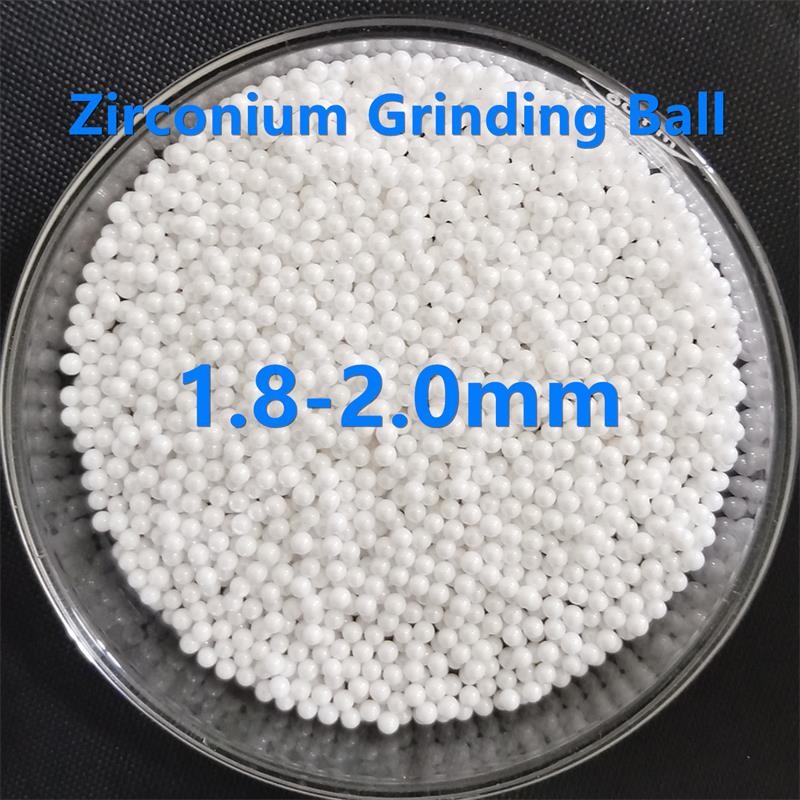

Product Name: Yttrium Stabilized Zirconium Grinding Balls Color: Milk White
Material Content: 95% Zirconia True Gravity: 6.0g/cm3
Bulk Density: 3.7g/cm3 Usage: Grinding And Dispering
Size: 0.1-50mm Advantage: Excellent Wear Resistance
High Light:

Stabilized Zirconia Ceramic Grinding Balls

,

1.8mm Ceramic Grinding Media

,

50mm Ceramic Grinding Balls

Product Description

1. Product Description

95 Yttrium stabilized zirconia cerami beads selects the high quality micron and sub-nano-level powder as raw material, and the production method is sintering.

With the good smooth surface and high strength,95 zirconia beads have  been mainly used for the ultra-fine grinding and dispersion of high-viscosity and high-hardness materials.



Compared with 65 zirconia silicate beads, 95 zirconia beads has higher hardness, bulk density and strength, and it is widely used for grinding and dispersion media where zero pollution and higher efficiency is required.



2. Main Technical Data of 95 yttrium stabilized zirconia ceramic beads

Commodity Typical Chemical Index Main Physical Index
95 Zirconia Beads ZrO2 ≥95% True Gravity ≥6.0g/cm3
Y2O3 ≥4.5% Bulk Density ≥3.7g/cm3
Others ≤0.5% Vicker Hardness ≥1100 HV
sintering process compressive strength ≥2.0KN Φ2mm



Zirconia Beads Specification
Φ0.1-0.2mm Φ0.2-0.3mm Φ0.3-0.4mm Φ0.4-0.6mm
Φ0.6-0.8mm Φ0.8-1.0mm Φ1.0-1.2mm Φ1.2-1.4mm
Φ1.4-1.6mm Φ1.6-1.8mm Φ1.8-2.0mm Φ2.0-2.2mm
Φ2.2-2.4mm Φ2.4-2.6mm Φ2.6-2.8mm Φ2.8-3.0mm
Φ4mm Φ5mm Φ6mm Φ7mm
Φ8mm Φ9mm Φ10mm Φ12mm
Φ15mm Φ17mm Φ20mm Φ25mm
Φ30mm Φ40mm Φ45mm Φ50mm
Special Specification can be customized



3. Main Features of 95 Zirconia Ceramic Balls

1)Good roundness, smooth surface, high density, high Strength
2)Good stability, strong acid resistance and alkali proof.
3)Have excellent toughness, impact resistance, unbreakable

4)  Low cost of use and best grinding media.



4. Main Applications of 95 Yttrium stabilized Zirconia Ceramic Beads

95 Yttrium stabilized Zirconia Ceramic Beads are mainly used for Grinding and Polishing, etc.
1)  Wear and corrosion resistant product: paint, coating, textile, pigment and dye;
2)  High strength and high tenacity product: magnetic material, piezoelectric ceramics and dielectric ceramics;
3)  Pollution prevention: medicine, food and cosmetics;
4)  Ceramics: electronic ceramics, refractory ceramics and structural ceramics

YTZP 95 Yttria Partially Stabilized Zirconia Grinding Media Ball Size 12mm 0



5. Application Equipment of 95 Zirconia Beads

1) Horizontal Bead Mill
2) Vertical Bead Mill (Sand Mill)

3) Vertical Attrition Mill

4) High Speed Ultra Fine Sand Mill

5) Basket Mill

6) Horizontal Pin Mill

7) Nano Mill

8) Ball Mill

9) Planetary Mill
