65 Zirconia Silicate Beads Ceramic Grinding Media 1.4 - 1.6Mm For Grinding Dispersion
Contact Person : Caroline Cui
Phone Number : 86-15003865330
WhatsApp : +8615003865330
Minimum Order Quantity : | 25kgs | Price : | Negotiation |
---|---|---|---|
Packaging Details : | 25kgs barrels+Pallet | Delivery Time : | 5-20 days |
Supply Ability : | 500mt per year |
Place of Origin: | Shanxi, China | Brand Name: | Zirnano |
---|---|---|---|
Certification: | ISO9001, IS014001 | Model Number: | 0.1mm-50mm |
Detail Information |
|||
Commodity Name: | Cerium Stabilized Zirconia Ceramic Beads | Color: | Brown |
---|---|---|---|
Shape: | Sphere | Bulk Density: | 3.9g/cm3 |
True Density: | 6.1g/cm3 | Harness: | 1100HV |
Impact Strength: | 10.0KN 7mm | Elastic Modulus: | 200 Gpa |
Chemical Index: | ZrO2 80%Min., CeO2 20%Max. | Port Of Loading: | Tianjin/Qingdao, China |
Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
High Light: | ceramic grinding balls,ceramic ball mill media |
Product Description

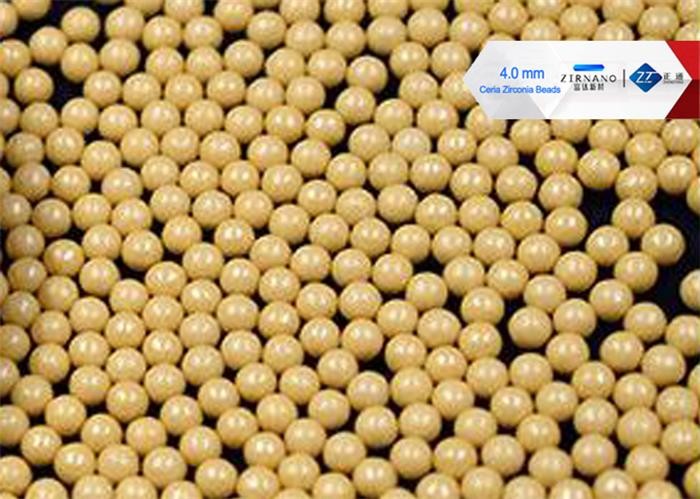

80 Cerium stabilized zirconia ceramic grinding media beads
Cerium stabilized zirconia ceramic grinding media beads is made of cerium stabilized zirconia powder by a process of titration molding, and baking and phasing. The microstructure of the beads is more delicate and denser, which is suitable for the dispersion and grinding of high solid content and difficult to decompose materials. It is the largest specific ceramic grinding media.
Items | Value |
Composition | 87~80% ZrO2 , 13~20% CeO2 |
Packed Density | 3.8(Φ7mm) Kg/L |
Specific Density | 5.5~6.2 g/cm3 |
Moh's | 8.5~9.0 |
Elastic modulus | 200 GPa |
Thermal Conductivity | 3 W/m.K |
Crushing Load | ≥10 (Φ7mm) KN |
Fracture Toughness | 8.5 MPam1-2 |
Thermal expansion Coeffcient(20-400 °C) |
9.0 10x10 -6 / °C(20-400) |
1. New energy lithium battery: lithium iron phosphate, lithium titanate, graphite, silicon carbon, graphene, carbon nanotubes, alumina ceramic diaphragm, etc.
2. Digital inkjet ink: thermal transfer ink, solvent ink, weak solvent ink, digital printing paint ink, digital printing disperse dye ink, pigment ink, LED-UV special curing ink, water-based universal pigment ink, coating ink, printing Ink, pen ink.
3. Paint, ink, dyes: automotive paint, wood paint, anti-corrosive paint, resin, offset ink, UV ink, gravure ink, water-based ink, water-based varnish, UV varnish, disperse dye, fluorescent dye, metallic pigment, Titanium dioxide and so on.
4. Ceramic inks and glazes: ceramic inks, glass pigments, ceramic glaze pigments, wrapping pigments, low-temperature glaze pigments, high-temperature fast-burning glaze pigments, metallic luster pigments, glass pigments, etc.
5. Electronic materials and magnetic materials: soft magnetic, permanent magnet, conductive ink, silver paste, rare earth metal, target, graphene conductive agent, electronic insulator material, piezoelectric material, ceramic capacitor material.
6. Pesticides Agrochemicals: Pesticides suspensions
7. Food,Cosmetics and medicine : chocolate grinding, creamy cosmetics, nanometer pharmaceutical powder
