65 % Sintering Ceramic Grinding Media , Sphericity Ceramic Ball Mill Media

Minimum Order Quantity : 25 KG Price : Negotiation
Packaging Details : 25kg drum+ pallet, ton bag Delivery Time : 3-10 days depending on the order quantity
Payment Terms : L/C, T/T Supply Ability : 1000mt per year
Place of Origin: Shanxi Brand Name: Fuda
Certification: ISO9001&14001 Model Number: 0.1-50mm etc

Detail Information

Product Name: Zirconia Beads Usage: Grinding Media
Material: Zirconia Shape: Sphericity
Production Process: Sintering Particle Size: Φ0.1-50mm
High Light:

ceramic grinding balls


ceramic ball mill media

Product Description

95 Zirconia Ceramic Grinding Media 65% ZrO2 Zirconium Silicate Beads for Dispersion

1. Product Description of Zirconia Ceramic Grinding Media

Zironia Beads is produced by sintering process,it is widely used as one ceramic grinding media in various


It is generally divided into three kinds of zirconia beads according the different zirconia content:

95 Zirconia Beads(95Yttrium stabilized Zirconia beads),which contains 95% ZrO2

80 Zirconia Beads,which contains about 80% ZrO2

65 Zirconia Beads( zirconium silicate beads),which contains about 65% ZrO2

2. Main Technical Data of Zirconia Ceramic Grinding Media


Item 65 Zirconia Beads 80 Zirconia Beads 95 Zirconia Beads
Chemical Index ZrO2 ≥65%
SiO2 25-30%
Others ≤1.0%
ZrO2 ≥80%
SiO2 ≥10%
ZrO2 ≥95%
Y2O3 ≥4.5%
Others ≤0.5%
Mohs Hardness 8 Mohs 9 Mohs 9 Mohs
True Specific Gravity ≥4.0g/cm3 5.2g/cm3 ≥6.0 g/cm3
Bulk Density ≥2.5g/cm3 3.2g/cm3 ≥3.7g/cm3
Wear Rate Per Ton 0.03kg/h 0.02kg/h 0.01kg/h
Particle Size Φ0.1-10mm etc. Φ0.6-2.2mm etc. Φ0.1-50mm etc.
Grinding Usage Low or Medium
Viscosity slurry
High Viscosity
High Viscosity & Hardnes with zero pollution


Seen from the above chart,95 zirconia has the higher hardness,bulk density and lower wear rate compared

with the one of 80 zirconia beads &65 zirconia beads.

3. The industry application of different zirconia beads


Industry Type Applicable Types of Zircona Beads
Ink Industry 95 zirconia,65 Zirconia,80 Zirconia
Paint Industry 95 zirconia,65 Zirconia,80 Zirconia
Coating Industry 95 zirconia,65 Zirconia,80 Zirconia
Pigment 95 zirconia,65 Zirconia,80 Zirconia
Dye 95 zirconia,80 Zirconia
Pesticide 95 zirconia,65 Zirconia,80 Zirconia
Titanium Dioxide 95 zirconia,65 Zirconia,80 Zirconia
Electronic industry 95 zirconia
Medical Industry 95 zirconia
Non-metal Minerals 95 zirconia,65 Zirconia,80 Zirconia


4. Main Applications of Zirconium Silicate Beads

Zirconium Silicate Beads is widely used for grinding of ultrafine grinding of Pesticide such as Insecticides,

herbicides,fungicides and seed coatings.

In pesticide industry,zirconium silicate beads Φ1.8-2.0mm, Φ1.4. -1.6mm,Φ1.0-1.2mm and Φ1.4-1.6mm,

Φ1.0-1.2mm,Φ0.8-1.0mm are the most popular beads.

5. Product Package:

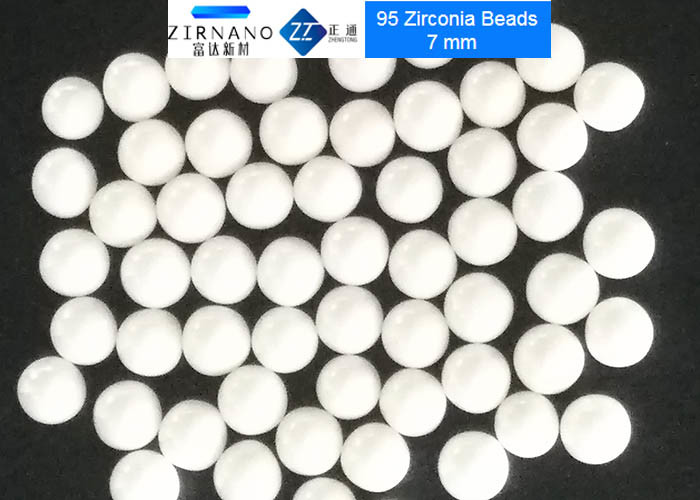

65 % Sintering Ceramic Grinding Media , Sphericity Ceramic Ball Mill Media  0

6.Why Choose Us?

Professional manufacturer,Providing good products with stable quality & favorable price;

Equipped with the most advanced production line and testing equipments,certificatd by


Products has been exported to USA,South Korea,Vietnam,Japan etc.
