95% Yttrium Stabilized Zirconia Ceramic Bead for Grinding/Dispersing
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.8-1.0mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

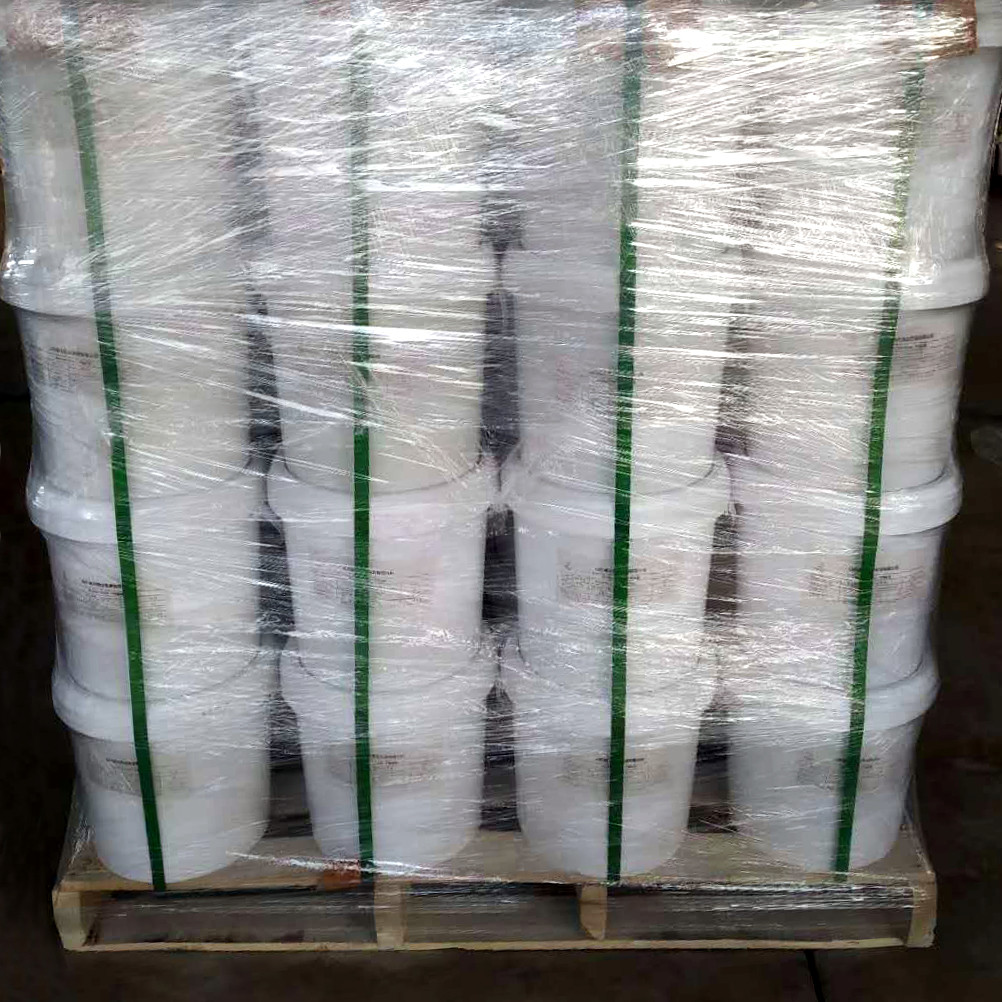

| Packaging Details: | 25kgs Barrels+Pallet |
| Delivery Time: | 2-20 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500mt per Year |
|
Detail Information |
|||
| Commodity Name: | Yttrium Stabilized Zirconia Ceramic Bead | Color: | Milk White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density:: | 6.0g/cm3 | Vickers Hardness: | 1100HV |
| Package: | 25kgs Barrels+Pallet | Port Of Loading: | Tianjin/Qingdao, China |
Product Description

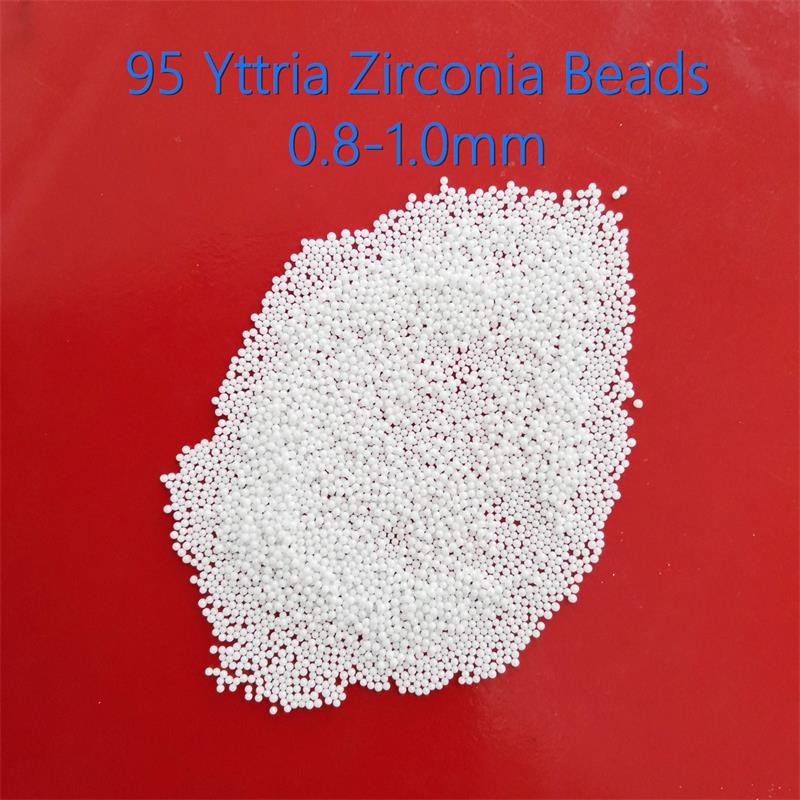

1. Product Description
Zirconia Ceramic beads grinding media is produced from good quality Yttria stabilized zirconia powder, smooth sphere surface, high density, is an ideal grinding media in grinding and dispersing applications.
2. Main Technical Data of 95 Ziconia Ceramic Beads Grinding Media
|
Commodity |
Process |
Physical Index |
|
95 Zirconia |
ZrO2 ≥94.5% |
True Gravity≥6.0g/cm3 |
|
size |
Φ0.1-0.2mm,Φ0.2-0.3mm,Φ0.3-0.4mm,Φ0.4-0.6mm, |
|
|
Φ0.6-0.8mm,Φ0.8-1.0mm,Φ1.0-1.2mm,Φ1.2-1.4mm, |
||
|
Φ1.4-1.6mm,Φ1.6-1.8mm,Φ1.6-1.8mm,Φ2.0-2.2mm, |
||
|
Φ2.2-2.4mm,Φ2.4-2.6mm,Φ2.6-2.8mm ,Φ4mm,Φ5mm, |
||
|
Φ6mm,Φ7mm,Φ8mm,Φ9mm,Φ10mm,Φ12mm,Φ15mm |
||
|
Φ17mm,Φ20mm,Φ25mm,Φ30mm,Φ40mm,Φ45mm,Φ50m... |
||
|
Special products can be customized |
||
3. Main Characteristic of of Zirconium Ceramic Grinding Media
a. Good roundness, smooth surface
b. High strength and hardness
c. High density
d. High Wear-resisting property.
e. Easy cleaning,Reduce the internal friction between beads and improve the material flow efficiency.
4.Applications of Zirconium Ceramic Grinding Media
It is especially suitable for ultra-fine grinding process where requires “zero pollution”.
-
Dye Grinding Field
-
Grinding and dispersion of coatings and paints
-
Inks and pigments
-
Textile dyes
-
Battery Material/Lithium Battery
-
Medcine/Pesticides
5. Applicable Equipment of Zirconia Ceramic Grinding Media
-
Nano grinder.
-
Horizonal Grinding Mill
-
Vertical Grinding Mill
-
Basket-type Grinding Mill
