95 Yttrium Stabilized Zirconia Beads Grinding Media For High Viscosity & High Hardness Materials

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 25kg barrel+ Pallet Delivery Time : Within 3-5 days after order confirmed
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 500mt per Year
Place of Origin: Shanxi,China Brand Name: Zirnano
Certification: ISO Model Number: 0.2-10mm

Detail Information

Commodity: 95 Zirconia Beads Product Name: 95 Yttrium Stabilized Zirconia Beads
Usage: Grinding Media For High Hardness And High Viscosity Slurry Main Chemical: 94.5% ZrO2
Bulk Density: 3.6g/cm3 True Gravity: 6.0 G/cm3
Vicker Hardness: ≥1100HV Product Process: Sintering
High Light:

95 Yttrium Stabilized Zirconia


Yttrium Stabilized Zirconia Beads Media


95 yttria doped zirconia

Product Description

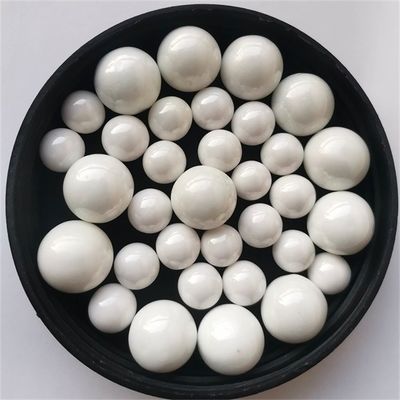

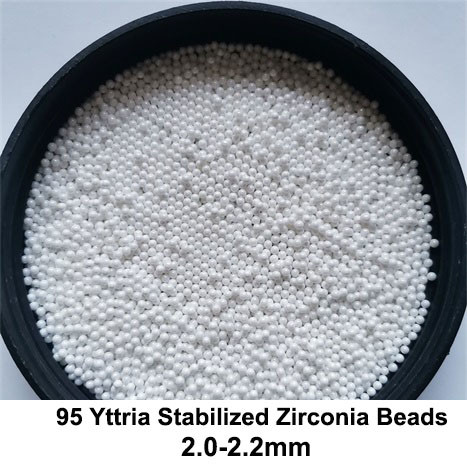

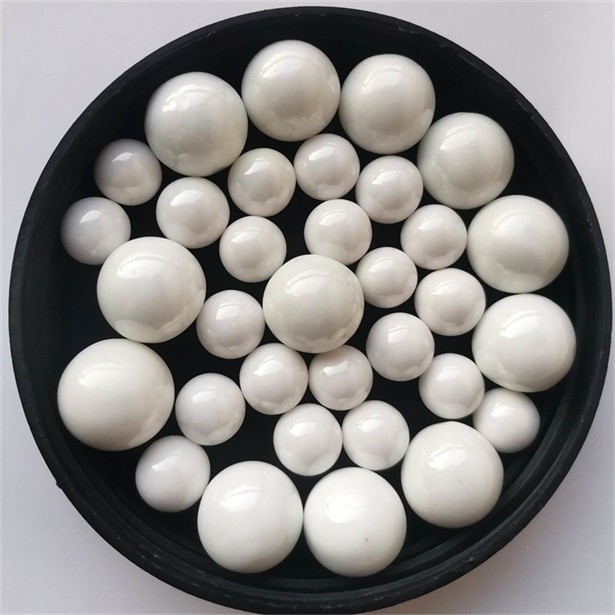

95 Yttrium stabilized Zirconia Beads Grinding Media for High viscosity& High hardness materials

1. Product Description of 95 Zirconia Beads

The crystal structure of 95 zirconia beads is mostly Tetragonal Zirconium Polycrystal, so it is also called

as "TZP" zirconia beads, it selects the micron and sub-nano zirconium oxide and yttrium oxide as raw

materials, then sintered under high temperature, finally made into different size by special technology.


It is mainly used for the ultra-fine grinding and dispersion of high-viscosity and high-hardness materials

which requires zero pollution.


2. Main Technical Data of 95 Yttrium stabilized Zirconia Beads

Main Chemical Index ZrO2≥94.5%
Bulk Density 3.6 g/cm3
True Gravity 6.0 g/cm3
Bending strength ≥900 Mpa
Compressive strength 7500 Mpa
Hardness 8.5-9 Mohs
Wear Abrasion Rate 4 ppm/hr


3. Main Features of 95 Zirconia Beads:


Good wear resistance,good liquidity;

High density, high grinding efficiency;

Zero pollution to the materials to be ground;

Good stability, acid and alkali corrosion resistance.


4. Main Applications of 95 Yttrium stabilized Zirconia Beads:

Grinding and dispersion of electronic materials such as BaTiO3, BaCO3, etc.

Ultrafine grinding of magnetic materials

Superfine dispersion and grinding of paints, inks and coatings

Ultrafine grinding and dispersion of medicine and cosmetics

95 Yttrium Stabilized Zirconia Beads Grinding Media For High Viscosity & High Hardness Materials 0


5. Precautions for using 95 zirconia beads:


Select the suitable zirconia beads according to the viscosity, hardness, dispersed particle size and grinding

requirements of the grinding material;


Clean the inner wall of the grinder barrel before grinding


Put the grinding material into the grinder firstly, then put the right amount of zirconium beads.

Gradually add the zirconia beads after the grinder is running normally. The filling volume is generally 70%-85%

of the internal volume of the grinder barrel;


Do not run the grinder for a long time under the condition of lack of grinding material, otherwise the grinder is

easy to be damaged;


Suggest to refuel the new zirconium beads appropriately to ensure the quality and efficiency of the grinding after

the grinder has running for a long time


6. How to distinguish the normal abrasion and broken beads?

Generally speaking, the zirconia beads will become smaller when working for a period ,but still smooth in the

surface without edges and corners , which should be the wear of normal beads;


On the contrary, if there are angular, flake shaped beads in the beads, it should be broken beads.
