80 Cerium Stabilized Zirconium Oxide Balls 200 Gpa Elastic Modulus Sphere Shape
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Cerium Stabilized Zirconia Ceramic Beads | Color: | Brown |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.9g/cm3 |
| True Density: | 6.2g/cm3 | Harness: | 1100HV |
| Impact Strength: | 10.0KN 7mm | Elastic Modulus: | 200 Gpa |
| Chemical Index: | ZrO2 80%Min., CeO2 20%Max. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| High Light: | zirconium oxide beads,zirconia milling media |
||
Product Description

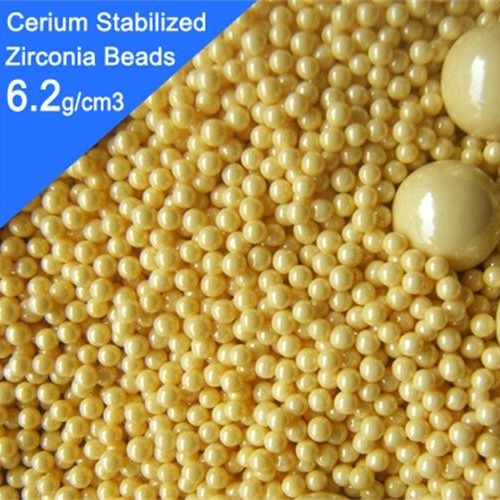

80 Cerium stabilized zirconium oxide balls grinding media
- DESCRIPTION
Cerium Stabilized zirconium oxide balls, which contains the rare earth element”cerium”, is the most specific of all zirconium beads. It is suitable for some special industries, such as grinding of high specific gravity and high viscosity materials.

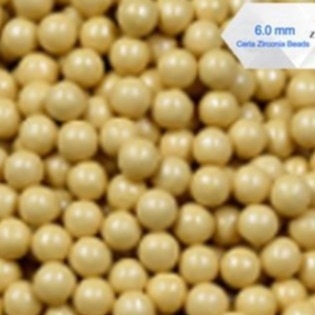

6MM
- SPECIFICATION
| Chemical Composition | Zro2 80% | CeO2 20% | ||||
|
Physical Index |
Process | Specific Density | Bulk Density | Mohs’Hardness | Abrasion loss | Compressive strength |
|
Sintering & titration |
5.2g/cm3 | 3.3g/cm3 | 8.5 |
<20ppm/hr (24hr) |
>2000KN (Φ2.0mm) |
|
| Sizes |
0.4-0.6mm 0.6-0.8mm 0.8-1.0mm 1.0-1.2mm 1.2-1.4mm 1.4-1.6mm 1.6-1.8mm 1.8-2.0mm 2.0-2.2mm 2.2-2.4mm 2.4-2.6mm 2.6-2.8mm 2.8-3.2mm 3.0-3.5mm 3.5-4.0mm 4.0-4.5mm 4.5-5.0mm 5.0-5.5mm 5.5-6.0mm 6.0-6.5mm 8mm 10mm 12mm 15mm 20mm
|
|||||

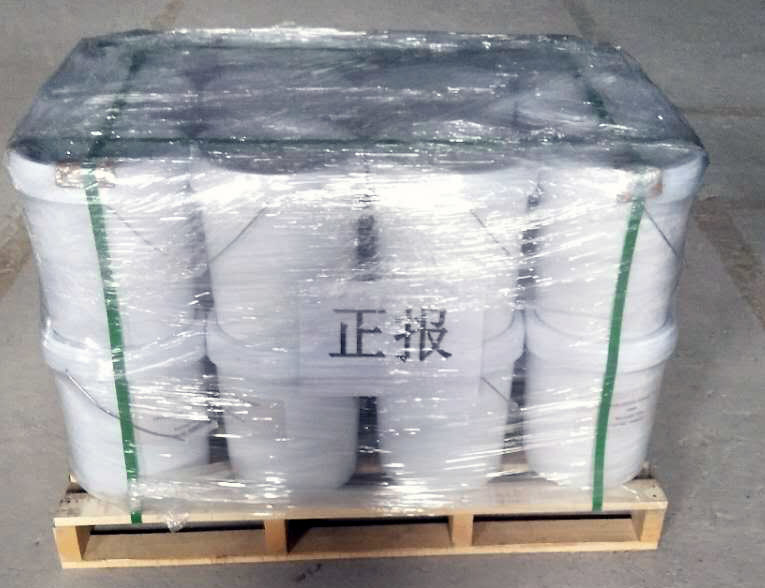

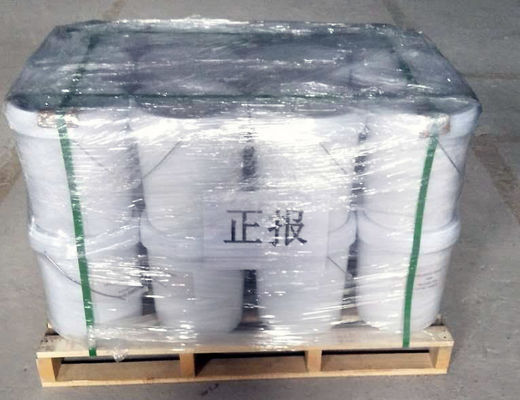

- PACKAGE
- FEATURES
Combining the advantages of zirconium silicate balls and yttrium stabilized zirconia balls, the cerium stabilized zirconium oxide balls has a small specific gravity (specific gravity 5.2), which reduces the production cost.
1. Wide application range, especially for grinding materials with high hardness and viscosity
2. Large specific gravity, which maintains high grinding kinetic energy and improves grinding efficiency
3. Corrosion resistance of acid and alkali salts, smooth surface, easy to clean, less wear on equipment
4. High mechanical strength, impact resistance, high speed operation, no fragmentation
5. Abrasion resistance: 25-45 times of glass beads, zirconium silicate beads: about 5 times
6. Grinding efficiency: 6-8 times of glass beads, zirconium silicate beads: 2-3 times
- APPLICATION
Used in the grinding and dispersion of ink coatings, agrochemicals, ceramic materials, non-metallic minerals, food industry, nano materials, etc., it is an ideal substitute for Yttrium stabilized balls
- APPLICABLE EQUIPMENT
- Rod horizontal sand mill, turbine horizontal sand mill, vertical sand mill, centrifugal sand mill, basket sand mill, ball mill, etc
