95 Yttria Zirconium Oxide Balls 0.8 - 1.0mm Mill Grinding Media
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | Zhengtong |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.8-1.0mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25kgs Barrels+Pallet |
| Delivery Time: | 2-20 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500mt per Year |
|
Detail Information |
|||
| Product Name: | Yttrium Stabilized Zirconium Oxide Balls | Chemicals: | ZrO2 95%Min., Y2O3 4.5%Min |
|---|---|---|---|
| Bulk Density: | 3.7 G/cm3 Min. | Vickers Hardness: | 1100HV |
| Crushing Strength: | 2.0 KN(Φ 2 Mm) | Usage: | Grinding &Dispersion |
| Package: | 25kgs Barrels+Pallet | Port Of Loading: | Tianjin/Qingdao, China |
| High Light: | 95 Yttria Zirconium Oxide Balls,Grinding Media Zirconia Ball Mill,1.0mm Zirconia Ball Mill Grinding Media |
||
Product Description
1. Product Description

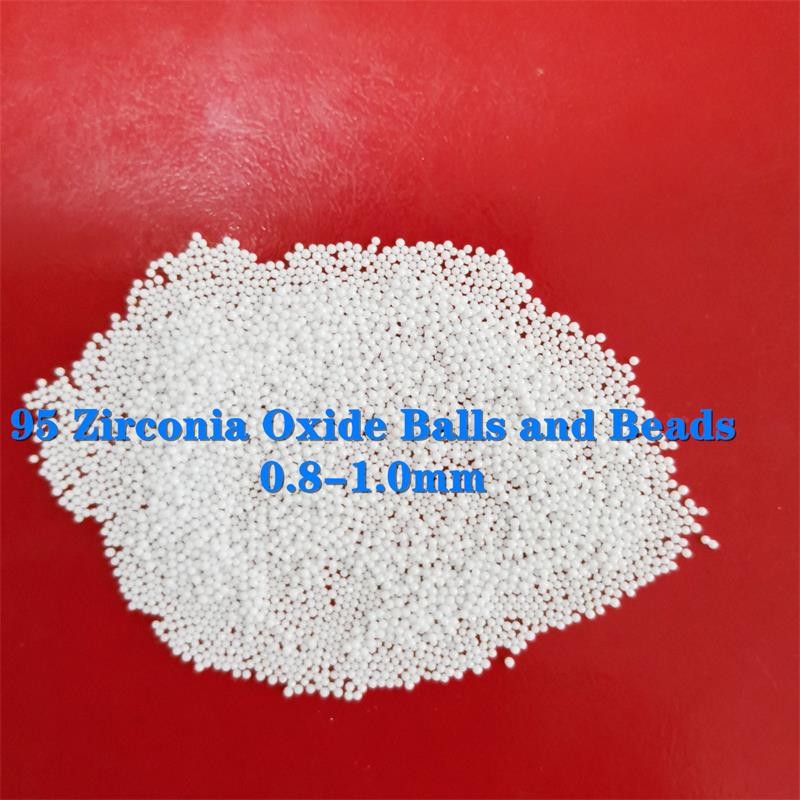

Zirconia beads, referred to as TZP, also known as 95 zirconia beads, yttrium stabilized zirconia beads, zirconia Oxide balls, zirconia ceramic grinding media, etc.
It is shiny white balls, with good roundness, high density, high grinding efficiency and no pollution. Therefore, zirconia oxide balls are widely used for wet and dry ultrafine dispersion and grinding of various slurry and powders.
2. Main Technical Index of 95 Zirconia Oxide Ball Ceramic Grinding Media
|
Item |
95 Zirconia Beads |
|
Chemical Index |
ZrO2 ≥95% |
|
Mohs Hardness |
9 Mohs |
|
True Specific Gravity |
≥6.0 g/cm3 |
|
Bulk Density |
≥3.7g/cm3 |
|
Modulus of Elasticity |
210GPa |
|
Fracture Toughness |
6.0MPam0.5 |
|
Wear Rate Per Ton |
0.01kg/h |
|
95 Zirconia Beads Specification |
|||
|
Φ0.1-0.2mm |
Φ0.2-0.3mm |
Φ0.3-0.4mm |
Φ0.4-0.6mm |
|
Φ0.6-0.8mm |
Φ0.8-1.0mm |
Φ1.0-1.2mm |
Φ1.2-1.4mm |
|
Φ1.4-1.6mm |
Φ1.6-1.8mm |
Φ1.0-1.2mm |
Φ2.0-2.2mm |
|
Φ2.2-2.4mm |
Φ2.4-2.6mm |
Φ2.6-2.8mm |
Φ2.8-3.0mm |
|
Φ4mm |
Φ5mm |
Φ6mm |
Φ7mm |
|
Φ8mm |
Φ9mm |
Φ10mm |
Φ12mm |
|
Φ15mm |
Φ17mm |
Φ20mm |
Φ25mm |
|
Φ30mm |
Φ40mm |
Φ45mm |
Φ50mm |
|
Special Specification can be customized |
|||
3. Key Properties of 95 Zirconia Oxide Ball Ceramic Grinding Media
Good roundness, smooth surface, high density and hardness;
High stability, acid and alkali-resistance；
High hardness and toughness, shockproof, unbreakable;
Low abrasion wear and low harm to the equipment
4. Main Applications of 95 Zirconia Oxide Ball Ceramic Grinding Media
Inks, pigments, paints and coatings；
Magnetic materials and electronic components；
Medicine, food and food additives;
Cosmetics；
Lithium iron phosphate, lithium titanate, graphite, silicon carbon, arbon nanotubes, alumina ceramic diaphragms, etc.
5. Applicable Equipment of 95 Zirconia Oxide Ball Ceramic Grinding Media
-
Nano-horizontal sand mills
-
High-speed stirring mills
-
Vibration mills
-
Basket sand mill
-
Ball Mill
-
Vibration mill
-
Various high-speed rod-pin sand mills, etc.
