Coating / Painting Zirconia Grinding Beads

Minimum Order Quantity : 25kgs Price : Negotiation
Packaging Details : 25kgs barrels+pallet Delivery Time : 5-20 days
Supply Ability : 1500mt per year
Place of Origin: Shanxi, China Brand Name: Zirnano
Certification: ISO9001, ISO14001 Model Number: 0.6-0.8mm~10mm

Detail Information

Commodity: 65 Zirconium Silicate Grinding Beads Color: White Or Milky White
Chemical Index: ZrO2 65%min. SiO2 30-25% Bulk Density: 2.5g/cm3
True Density: 4.0g/cm3 Hardness: 900 HV
Impact Strength: 1.1KN Package: 25kgs Barrels+pallet
High Light:

zirconia sintering beads

,

ceramic grinding media balls

Product Description

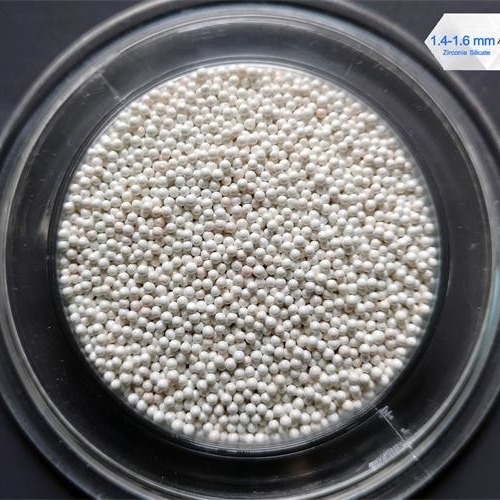

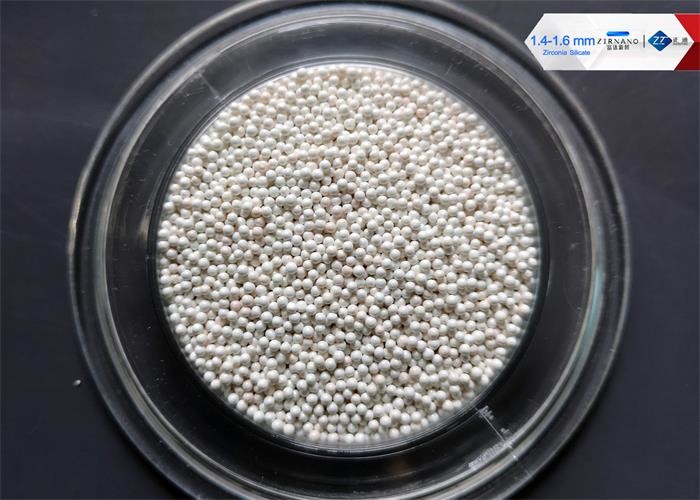

65 zirconium silicate grinding beads for ink, coating, painting and pestisides



Coating / Painting Zirconia Grinding Beads  0

Zirconium Silicate beads are sintered from zirconium silicate powder and formulated with strict process controls, almost free of bubbles and pores. With lower density, lower hardness and lower crush load than Zirconia beads. It is adequate for the vertical type mills in which heavy zirconia can not be used.


Zirconium Silicate beads grinding media are with the low price and high level of efficiency, available in different fractions ranging from 0.6 mm to 10 mm.



Coating / Painting Zirconia Grinding Beads  1



Coating / Painting Zirconia Grinding Beads  2

Coating / Painting Zirconia Grinding Beads  3

Coating / Painting Zirconia Grinding Beads  4

Manufacturing process: Sintering Method

ZrO2 SiO2 Other
65% Min. 30-35% 1.0 % Max.



Color Bulk Density True Specific Density Vickers Hardness
White 2.5g/cm3 4.0g/cm3 900 HV



Size Φ mm

0.6-0.8 0.8-1.0 1.0-1.2 1.2-1.4 1.4-1.6 1.6-1.8
1.8-2.0 2.0-2.2 2.5-3.0 3.0-3.5 4 5
6 7 8 10 Special sizes can be customized.









Coating / Painting Zirconia Grinding Beads  5

Coating / Painting Zirconia Grinding Beads  6

Coating / Painting Zirconia Grinding Beads  7

· Homogenous microstructure--Minimal fractured fragments

· High density and high hardness--Better milling efficiency

· High wear resistance--Longer working life

· High sphericity--Longer mill life

Coating / Painting Zirconia Grinding Beads  8

  • Production of large-capacity minerals, such as CaCO3, Kaolin, ZrSiO4, etc.
  • Paints, inks, pigments, and dyes.
  • Magnetic coatings.
  • Mining metals that are made by vertical-type mills, such as lead, copper, and zinc sulfide.



Coating / Painting Zirconia Grinding Beads  9

High speed mixing mill, Vibration mill, Grinder mill

Coating / Painting Zirconia Grinding Beads  10

Coating / Painting Zirconia Grinding Beads  11Coating / Painting Zirconia Grinding Beads  12

Coating / Painting Zirconia Grinding Beads  13
