Ultra Fine Zirconia Milling Media High Hardness Solid Shape Smooth Surface
Product Details:
Place of Origin: | Shanxi |
Brand Name: | Fuda |
Certification: | ISO9001,ISO14001 |
Model Number: | 0.1-10mm etc |
Payment & Shipping Terms:
Minimum Order Quantity: | 25 KG |
---|---|
Price: | Negotiation |
Packaging Details: | 25 kg drum+ pallet,ton bag |
Delivery Time: | 3-10 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 mt per year |
Detail Information |
|||
Product Name: | Zirconia Milling Media | Commodity: | Zirconium Silicate Beads |
---|---|---|---|
Usage: | Ultra-fine Grinding | Hardness: | 700 HV |
Mohs Hardness: | 8 Mohs | Material: | 65% ZrO2 |
High Light: | zirconia grinding media,zirconia grinding beads |
Product Description

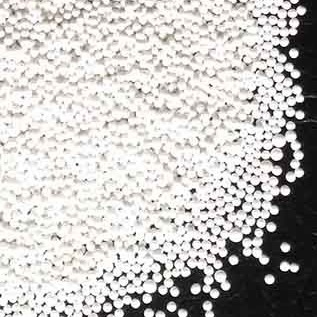

Good Fluidity 65 Zirconia Milling Media Zirconium Silicate Beads for Ultra-fine Grinding
1. Product Description of 65 Zirconia Milling Media Zirconium Silicate Beads
Zirconium Silicate Beads belongs to the group of zirconia beads,it is one zirconia milling media,widely used
for ultra-fine grinding and dispersion. it is also named as 65 zirconia beads because it contains 65% ZrO2
In addition,there is also the other two kinds of ziconia milling media: 95 ziconia beads and 80 zirconia beads
according to their different zirconia content.
2. Main Technical Data of 65 Zirconia Milling Media Zirconium Silicate Beads:
Commodity | Typical Chemical Index | Main Physical Index |
Zirconium Silicate Beads | ZrO2 ≥65% | True Gravity ≥4.0g/cm3 |
SiO2 25-30% | Bulk Density ≥2.5g/cm3 | |
Others ≤1.0% | Vicker Hardness ≥900 HV | |
sintering process | compressive strength ≥1.1KN (Φ2mm) |
3. Specification Avilable of 65 Zirconia Milling Media Zirconium Silicate Beads:
Φ0.2-0.4mm Φ0.4-0.6mm Φ0.6-0.8mm Φ0.8-1.0mm Φ1.0-1.2mm
Φ1.2-1.4mm Φ1.4-1.6mm Φ1.6-1.8mm Φ1.8-2.0mmΦ2.5-3.0mm Φ3.0-3.5mm
Φ4mm Φ 5mm Φ6mm Φ7mm Φ8mm Φ10mm etc.
Special products can be customized
4. Main Product Features of Zirconia Silicate Beads
High Hardness,High Density
Low Abrasion Rate
High Grinding Effect
Solid Beads
Good sphericity,smooth surface
Good fluidity
5. Main Applications of Zirconia Silicate Beads:
Grinding & Dispersion for the organic pigments and inorganic pigments such as permanent violet and black
carbon etc.
Grinding&dispersion of various paints,ink coatings such as emulsion paint,Screen printing ink,paper coating etc.
Grinding&dispersion of titanium dioxide
Grinding&dispersion of various pesticides such as herbicides etc.
Grinding & dispersion for non-metal minerals such as Kaolin,CaCO3 etc.
5.Packages of Zirconia Silicate Beads:
25kg drum+ Pallet
Ton Bag
Special packages can be customized.
