95 Yttria Stabilized Zirconium Oxide Balls 1100HV Harness 0.5ppm / H Abrasion Loss
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, IS014001 |
| Model Number: | 0.1mm-50mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+Pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 500mt per year |
|
Detail Information |
|||
| Commodity Name: | Zirconia Milling Beads | Color: | Shiny White |
|---|---|---|---|
| Shape: | Sphere | Bulk Density: | 3.7g/cm3 |
| True Density: | 6.0g/cm3 | Harness: | 1100HV |
| Impact Strength: | 2.0KN | Abrasion Loss: | 0.5ppm/h |
| Chemical Index: | ZrO2 95%Min. | Port Of Loading: | Tianjin/Qingdao, China |
| Package: | 25kgs Barrels+Pallet | Application: | Grinding Media For Battery, Magnetic Materials, Calcium Carbonate, Titanium Dioxide, Paint, Pigment, Dye, Ink. Etc |
| Highlight: | zirconia milling media,zirconia ceramic balls |
||
Product Description

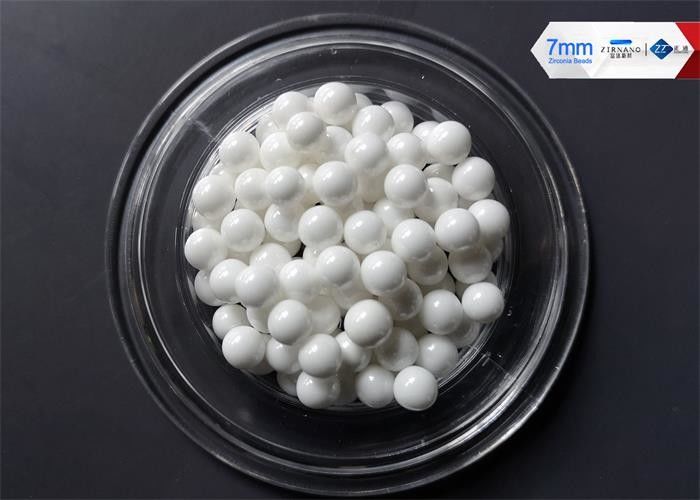

95 Yttria stabilized zirconium oxide grinding balls density 6.0g/cm3 Size 4-50mm
- DESCRIPTION
Zirconium oxide balls are mainly used for ultra-fine grinding and dispersion of high viscosity and high hardness materials, and can achieve zero pollution.
High grinding efficiency: Due to the high density of zirconium oxide balls, it has a higher grinding kinetic energy at the same moving speed, and the grinding efficiency is 2-3 times higher than that of ordinary ceramic beads. You can get better results.
Impact resistance, low wear: Due to the high content of ZrO2, high density, high toughness, low abrasion, no broken ball, peeling, etc., the dispersion of the abrasive is less polluted. The abrasion is 4-10 times lower than that of ordinary ceramic beads.
Good stability: good stability, acid and alkali corrosion resistance.
Good fluidity: good circularity, smooth surface, no pores, reflective gloss, easy to clean. The fluidity between the microbeads and the microbeads is good, and the wear on the equipment is small.
Low cost of use: Zirconium oxide ball wear is the lowest in all grinding media. Zirconium oxide balls are high-strength, inert, hard, perfect, fine spherical particles.
Application in coatings can reduce costs, increase solids content, provide performance and improve process operating conditions.

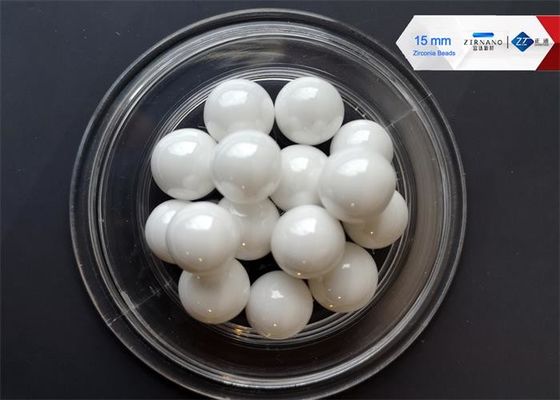

95 Yttria stabilized zirconium oxide grinding balls 15mm
Manufacturing process: Sintering Method
| Chemical composition | ZrO2 95% Min. Y2O3 4.5% Min |
| Density | 6.0g/cm³ Min. |
| Specific density | 3.7g/cm³ Min. |
| Moh's hardness | 9 |
| Impact Strength | 2.0KN (2mm) |
| Compressive Strength | 5500MPa |
| Modulus of Elasticity | 200Gpa |
| Thermal Expansion Coefficient | 9.6 (20-400℃ ) |
| Compressive strength | 2300KN (Φ2.0mm) |
| Package | 25kg/barrel |
| SIZES Φ MM | ||||
| 0.1-0.2 | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6-0.8 |
| 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.2-2.4 | 2.4-2.6 | 2.6-2.8 |
| 2.8-3.0 | 4,5,6,7,8,9,10,12,15,17,20,25,30,40,50 | |||
- PRODUCTION PROCESS

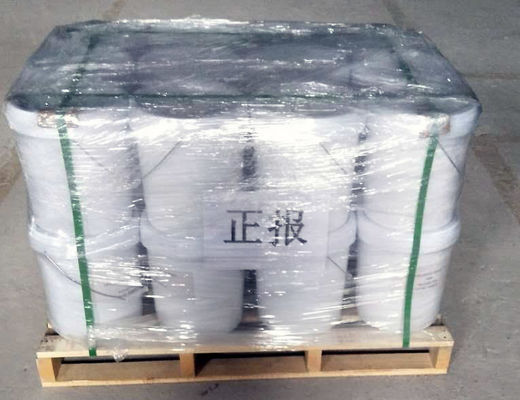

- PACKAGE
- 25KGS BARRELS+PALLET
- APPLICATION
-
Pigments and dyes: dispersing and grinding of titanium pigment, carbon black, inorganic pigment like iron oxide red; organic pigments like Phthalocyanine blue, permanent violet.
-
Paints and coatings materials: Anti-corrosion industrial paint, plastic paint, emulsion paint, printing ink, ink-jet ink, paper coating material, tape and disk coating.
-
Pesticide: pesticides, herbicides, antiseptic, seed coating agent.
- APPLICABLE EQUIPMENT
- Due to the high compressive strength, zirconium balls are preferably added during production grinding. To improve the dispersion effect sand mill, ball milling, and rolling can be used. Compared to the use of other fillers of the same or lower hardness, the use of zirconium oxide balls is less subject to wear and tear on the equipment.
