Product Details:

Place of Origin: Shanxi, China
Brand Name: Zirnano
Certification: ISO9001, ISO14001
Model Number: 0.6-0.8mm~10mm

Payment & Shipping Terms:

Minimum Order Quantity: 25kgs
Price: Negotiation
Packaging Details: 25kgs barrels+pallet
Delivery Time: 5-20 days
Supply Ability: 1500mt per year
Get Best Price Contact Now

Detail Information

Commodity: 65 Zirconium Silicate Grinding Beads Color: White Or Milky White
Chemical Index: ZrO2 65%min. SiO2 30-25% Bulk Density: 2.5g/cm3
True Density: 4.0g/cm3 Hardness: 900 HV
Impact Strength: 1.1KN Package: 25kgs Barrels+pallet
High Light:

ceramic grinding media balls

,

zirconium silicate media

Product Description



Pesticides Dispersion Horizontal Sand Mill Grinding Media Sintering Zirconium silicate

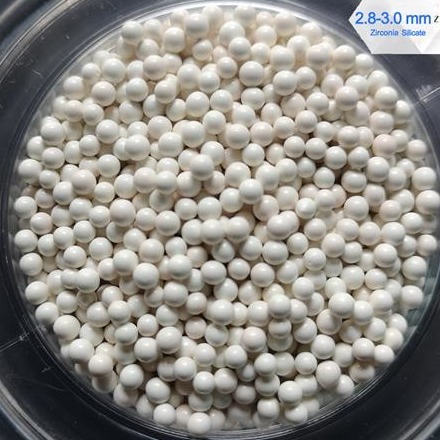

Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 0

Zirconium Silicate beads is of high-tech grinding process by sintering and phasing method that makes this milling media solid from surface to center.

This technique results in a stronger molecular structure and increases density and wear resistance.

They perform exceptionally well with high-solid dispersions where contamination from steel media is undesirable and where the specific gravity of glass media is too low.



Mainly used for grinding and dispersion of pesticides suspension.

Other uses include the dispersion of medium- to high-viscosity paints, inks and chemicals such as herbicides and insecticides.



Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 1

Chemical composition ZrO2>65%
SiO2 <35%
True Density 4.0g/cm3
Bulk density 2.5g/cm³
Wear rate per ton 0.03kg/h
Moh's hardness 8
Color Milky white

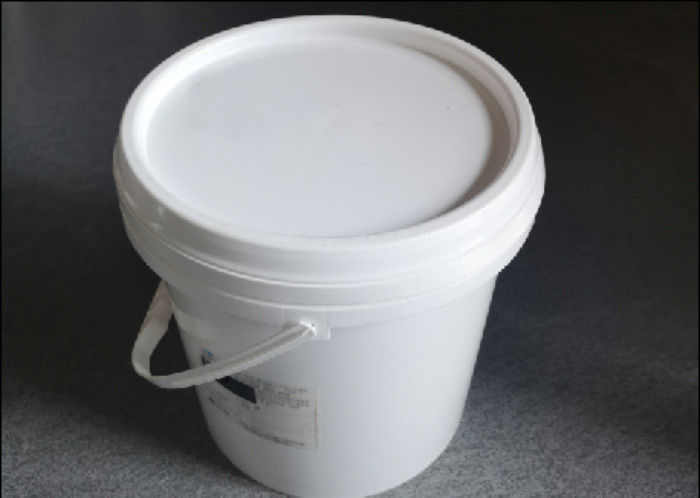

Package 25kg/ barrel



Size (Diameter/mm) :

0.1-0.2 0.2-0.3 0.3-0.4 0.5-0.6
0.6-0.8 0.8-1.0 1.0-1.2 1.0-1.2
1.4-1.6 1.6-1.8 1.8-2.0 2.0-2.2
2.2-2.4 2.4-2.8 2.8-3.2 4,5,6,7,8,9,10





Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 2

  • Good sphericity-Low abrasion loss, long life time. Wearability is 8-10 times higher than glass beads;
  • High Density-High Grinding efficiency. Grinding efficiency is 3-5 times higher than glass beads;
  • High crushing strength, reduce the intermal friction between the beads and improve the material flow efficiency
  • Good icid and alkali-resistance and good chemical stability

Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 3

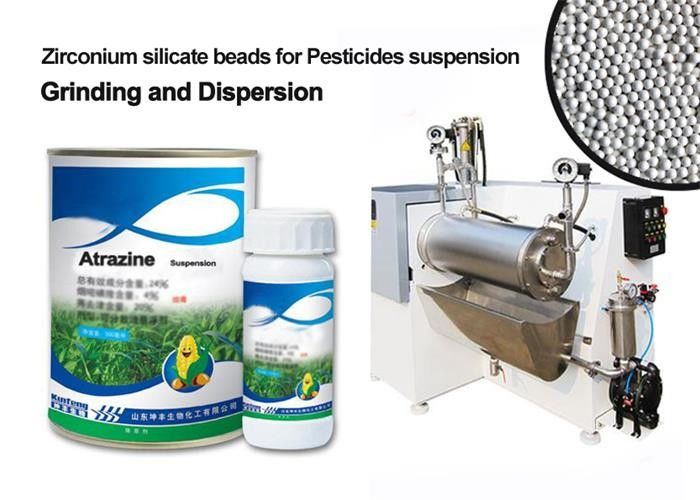

Pesticides Suspension

  • Superfine grinding of pesticide suspensions, herbicides, insecticides, fungicides, seed dressing suspensions, Grinding fineness between 0.1 to 5um
  • In the pesticide industry, Many producers use 65% ZrO2 zirconium silicate beads as grinding media, Some other manufacturers use 95% ZrO2 yttrium-stabilized zirconia beads.
  • Generally, coarse grinding is usually choose 65 zirconium silicate beads as grinding media, and superfine grinding use 95 yttrium-stabilized zirconia beads.

Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 4

Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 5

  • Horizontal sand Mill
  • Vertical Sand Mill
  • Vertical Attrition Mill
  • High Speed Ultra Fine Sand Mill
  • Basket Mill

Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 6

Pesticides Dispersion Horizontal Sand Mill Grinding Media Zirconium silicate beads 2.8-3.0mm 7
