0.6mm -10mm Zirconia Grinding Media Zirconium silicate beads For Coating / Painting / Ink
Product Details:
| Place of Origin: | Shanxi, China |
| Brand Name: | Zirnano |
| Certification: | ISO9001, ISO14001 |
| Model Number: | 0.6-0.8mm~10mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 25kgs barrels+pallet |
| Delivery Time: | 5-20 days |
| Supply Ability: | 1500mt per year |
|
Detail Information |
|||
| Commodity: | 65 Zirconium Silicate Grinding Beads | Color: | White Or Milky White |
|---|---|---|---|
| Chemical Index: | ZrO2 65%min. SiO2 30-25% | Bulk Density: | 2.5g/cm3 |
| True Density: | 4.0g/cm3 | Hardness: | 900 HV |
| Impact Strength: | 1.1KN | Package: | 25kgs Barrels+pallet |
| High Light: | ceramic grinding media balls,zirconium silicate media |
||
Product Description

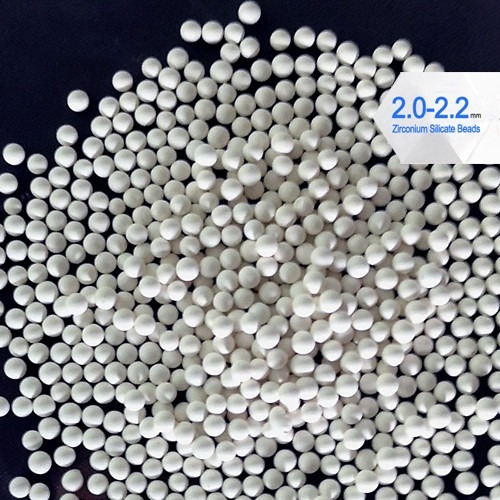

0.6mm - 10mm Ceramic Grinding Media Balls Round For Coating / Painting / Ink
The zirconium silicate beads are made from imported zircon sand, Rolled into a billet after fine grinding, and formed by a sintering phasing process. It has the characteristics of high compressive strength and low abrasion, and is widely used for superfine grinding of calcium carbonate, kaolin, titanium dioxide, paint, ink and other products.
Manufacturing process: Sintering Method
| ZrO2 | SiO2 | Other |
| 65% Min. | 30-35% | 1.0 % Max. |
| Color | Bulk Density | True Specific Density | Vickers Hardness |
| White | 2.5g/cm3 | 4.0g/cm3 | 900 HV |
Size Φ mm
| 0.6-0.8 | 0.8-1.0 | 1.0-1.2 | 1.2-1.4 | 1.4-1.6 | 1.6-1.8 |
| 1.8-2.0 | 2.0-2.2 | 2.5-3.0 | 3.0-3.5 | 4 | 5 |
| 6 | 7 | 8 | 10 | Special sizes can be customized. | |
| 01 |
Good sphericity, low abrasion loss, long life time, 8-10 times of glass beads. |
| 02 | Grinding efficiency is 3-5 times higher than glass beads. |
| 03 | Good toughness, good impact resistance not easy to be broken |
| 04 | Good acid and alkali-resistance, and good stability |
Disc type, Bar-pin type, and rod type
Vertical andHorizontal sand mills
